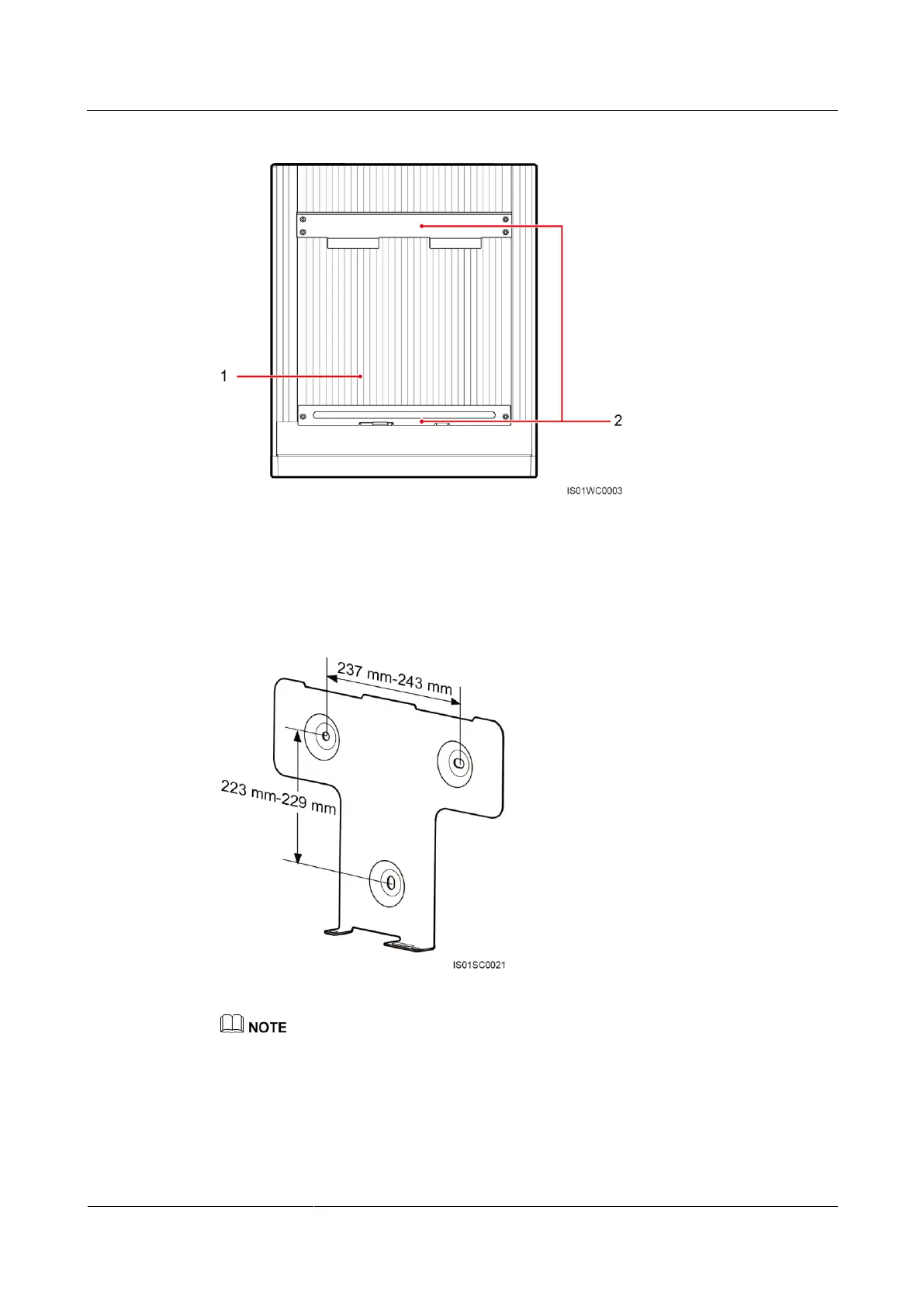

Figure 4-14 SUN2000 rear view
(1) Heat sink
(2) Mounting bracket
Figure 4-15 shows the dimensions of holes in the rear panel of the SUN2000.
Figure 4-15 Dimensions of holes in the SUN2000 rear panel

If the installation location is near the ground, connect the PGND cable to the ground before
installing the SUN2000. For details, refer to 5.1 Connecting PGND Cables.

It is recommended that the SUN2000 be installed at eye level to facilitate operation and
maintenance.

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
