Huawei SUN2000-12KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
4 Installation
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
34
Procedure
Step 1 Locate the positions for drilling holes using the rear panel provided with the SUN2000 in the
packing case, and mark the positions using a marker, as shown in Figure 4-16.

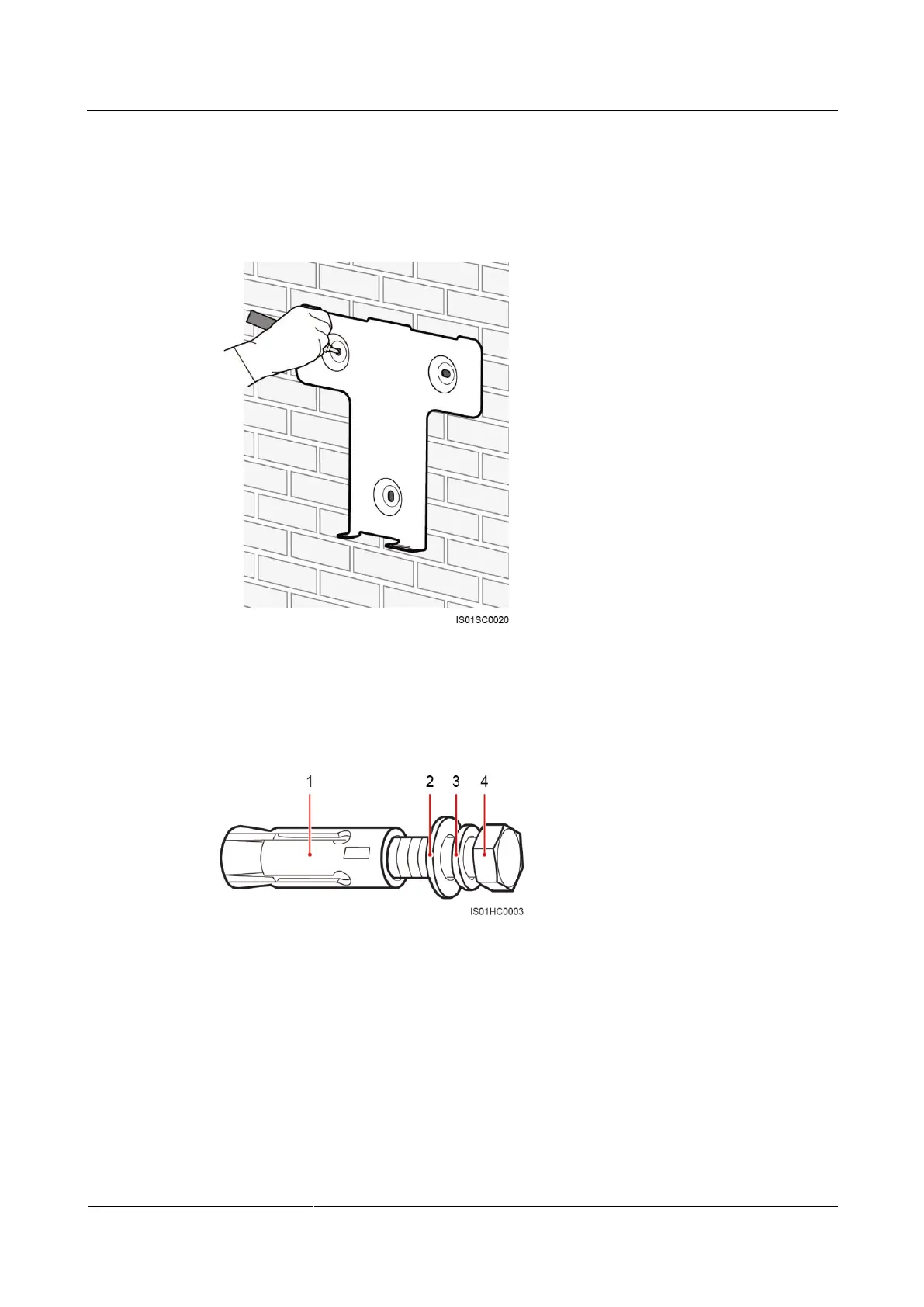

Figure 4-16 Locating and marking the hole positions
Step 2 Drill holes using a hammer drill and install expansion bolts, as shown in Figure 4-18.
An expansion bolt is composed of four parts, as shown in Figure 4-17.
Figure 4-17 Expansion bolt composition
(1) Expansion sleeve
(2) Flat washer
(3) Spring washer
(4) M10x60 bolt

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
