Huawei SUN2000-12KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
5 Electrical Connections
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
61

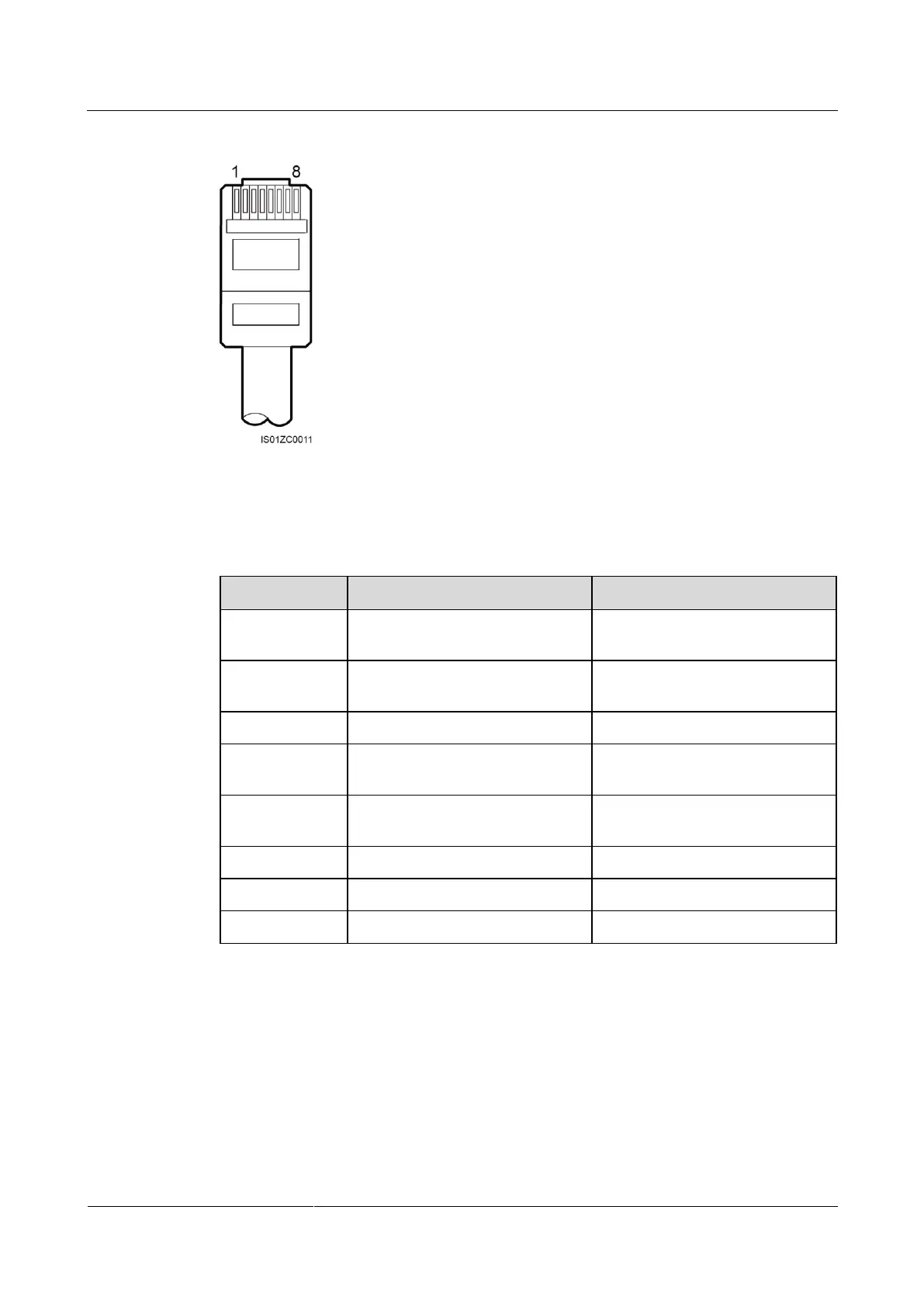

Figure 5-28 Connection sequence
Figure 5-28 shows the connector side that does not have a clip. Table 5-3 lists the mapping
between the pins and wires.
Table 5-3 Mapping between pins and wires
Pin No.
Color
Function
1
White-orange
RS485A, RS485 differential
signal +
2
Orange
RS485B, RS485 differential signal
-
3
White-green
PGND
4
Blue
RS485A, RS485 differential
signal +
5
White-blue
RS485B, RS485 differential signal
-
6
Green
PGND
7
White-brown
PGND
8
Brown
PGND

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
