Huawei SUN2000-12KTL User Manual

SUN2000 (8KTL-28KTL)
User Manual
5 Electrical Connections
Issue 10 (2017-07-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
62

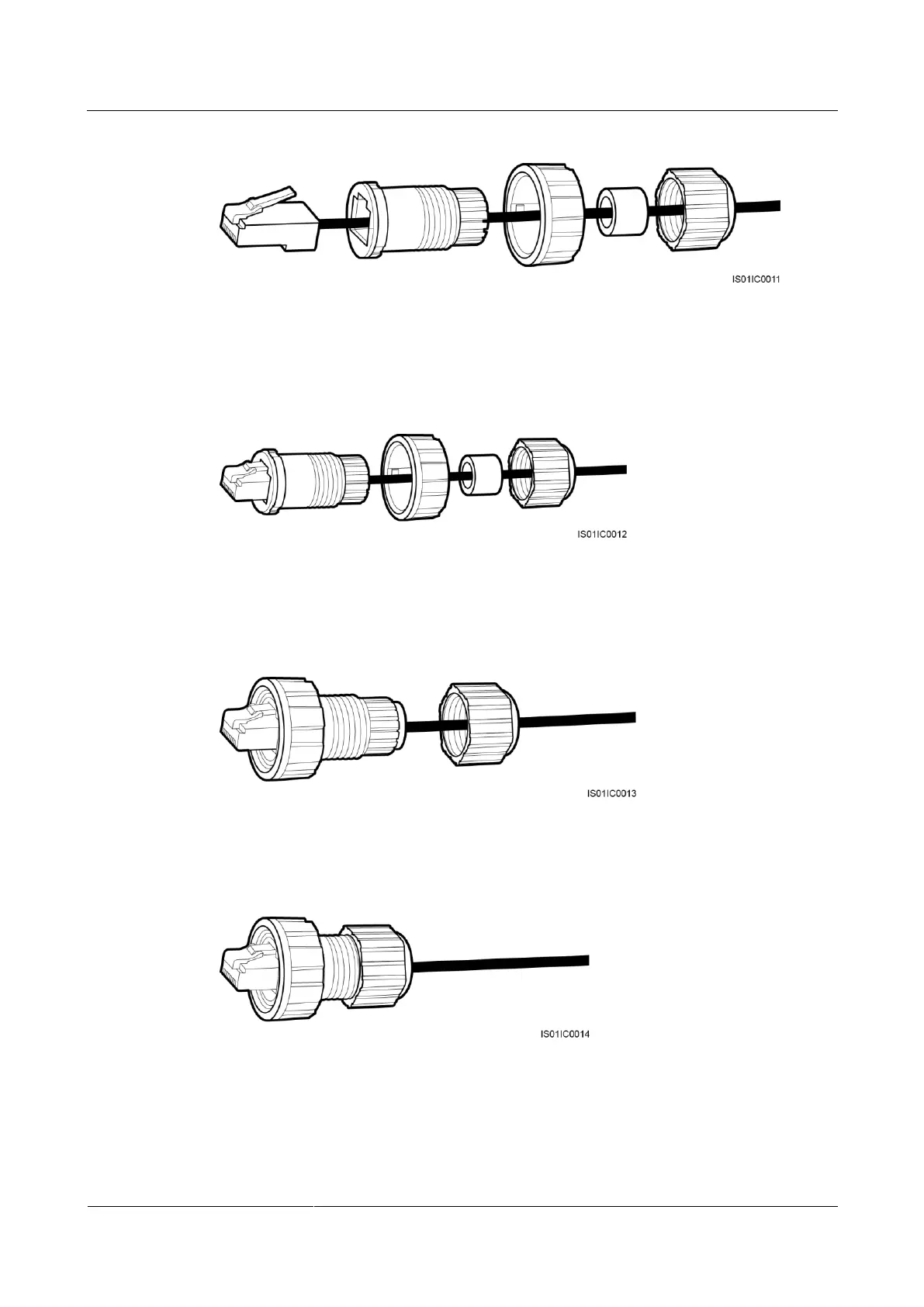

Figure 5-29 Connecting the plug
Step 4 Crimp the plug using a crimping tool.
Step 5 Secure the plastic housing to the plug, as shown in Figure 5-30.
Figure 5-30 Connecting the plastic housing
Step 6 Insert the seal ring into the plastic housing and secure the coupling nut to the plastic housing,
as shown in Figure 5-31.
Figure 5-31 Connecting the seal ring and coupling nut
Step 7 Secure the sealing nut to the plastic housing, as shown in Figure 5-32.
Figure 5-32 Connecting the sealing nut
Step 8 Insert the plug into the RS485 port on the SUN2000, and tighten the coupling nut.
----End

Huawei SUN2000-12KTL Specifications

General

Max. Efficiency	98.6%
Rated AC Power Output	12, 000 W
Dimensions (W x H x D)	525 x 470 x 262 mm
Weight	25 kg
Operating Temperature Range	-25°C to +60°C
Protection Rating	IP65
Max. Input Voltage	1100 V
Number of MPPT Trackers	2
Max. Input Current per MPPT	22 A
Cooling Method	Natural Convection
Max. apparent AC power	12000 VA
MPPT Voltage Range	200 V to 1, 000 V
Rated AC Voltage	220 V / 380 V, 230 V / 400 V, 240 V / 415 V
Warranty	5 years
