Huawei SUN2000-3KTL-L1 User Manual

Using Ladders
● Use wooden or insulated ladders when you need to perform live-line working
at heights.
● Platform ladders with protective rails are preferred. Single ladders are not
recommended.
● Before using a ladder, check that it is intact and
conrm its load bearing
capacity. Do not overload it.
● Ensure that the ladder is securely positioned and held rm.
● When climbing up the ladder, keep your body stable and your center of
gravity between the side rails, and do not overreach to the sides.
● When a step ladder is used, ensure that the pull ropes are secured.

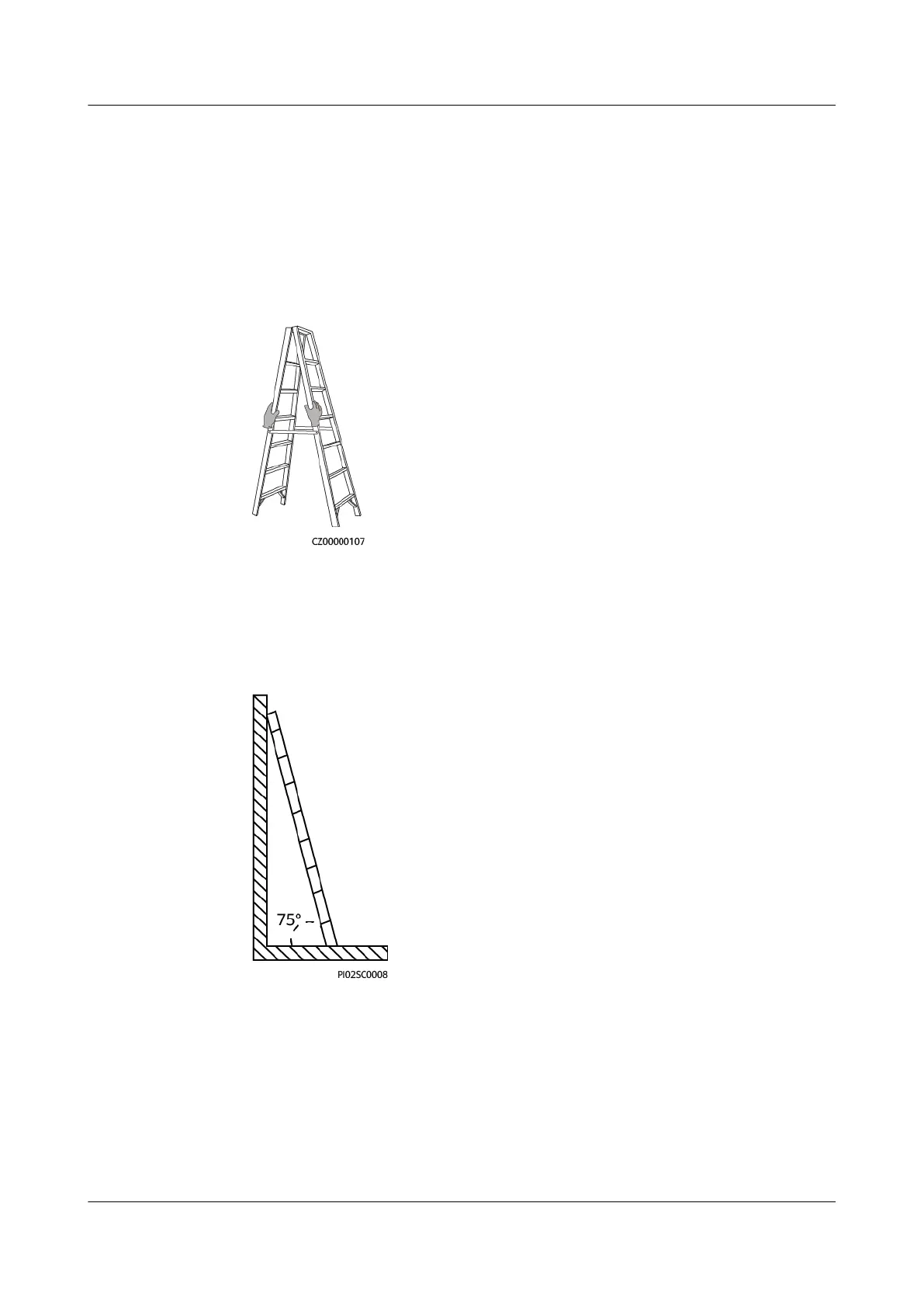

● If a single ladder is used, the recommended angle for the ladder against the
oor is 75 degrees, as shown in the following gure. A square can be used to
measure the angle.
● If a single ladder is used, ensure that the wider end of the ladder is at the
bottom, and take protective measures to prevent the ladder from sliding.
● If a single ladder is used, do not climb higher than the fourth rung of the
ladder from the top.
● If you use a single ladder to climb up to a platform, ensure that the ladder is
at least 1 m higher than the platform.
SUN2000-(2KTL-6KTL)-L1
User Manual 1 Safety Information
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 10

Huawei SUN2000-3KTL-L1 Specifications

General

Max. efficiency	98.4%
Max. input voltage	600 V
Nominal output power	3000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Operating temperature range	-25°C to +60°C
Nominal AC voltage	220 V / 230 V / 240 V
MPPT voltage range	90 V - 560 V
Rated input voltage	360 V
Number of MPPTs	2
Cooling	Natural Convection
Protection degree	IP65
Rated output voltage	220 V / 230 V / 240 V
Output frequency	50 Hz / 60 Hz
Power factor	0.8 leading ... 0.8 lagging
THDi	<3%
Efficiency	98.4%
Warranty	10 years
Max. apparent AC power	3300 VA
Max. output power	3300 W
