Huawei SUN2000-3KTL-L1 User Manual

Hoisting
● Only trained and qualied personnel are allowed to perform hoisting
operations.
● Install temporary warning signs or fences to isolate the hoisting area.
● Ensure that the foundation where hoisting is performed on meets the load-
bearing requirements.
● Before hoisting objects, ensure that hoisting tools are
rmly secured onto a
xed object or wall that meets the load-bearing requirements.
● During hoisting, do not stand or walk under the crane or the hoisted objects.
● Do not drag steel ropes and hoisting tools or bump the hoisted objects
against hard objects during hoisting.

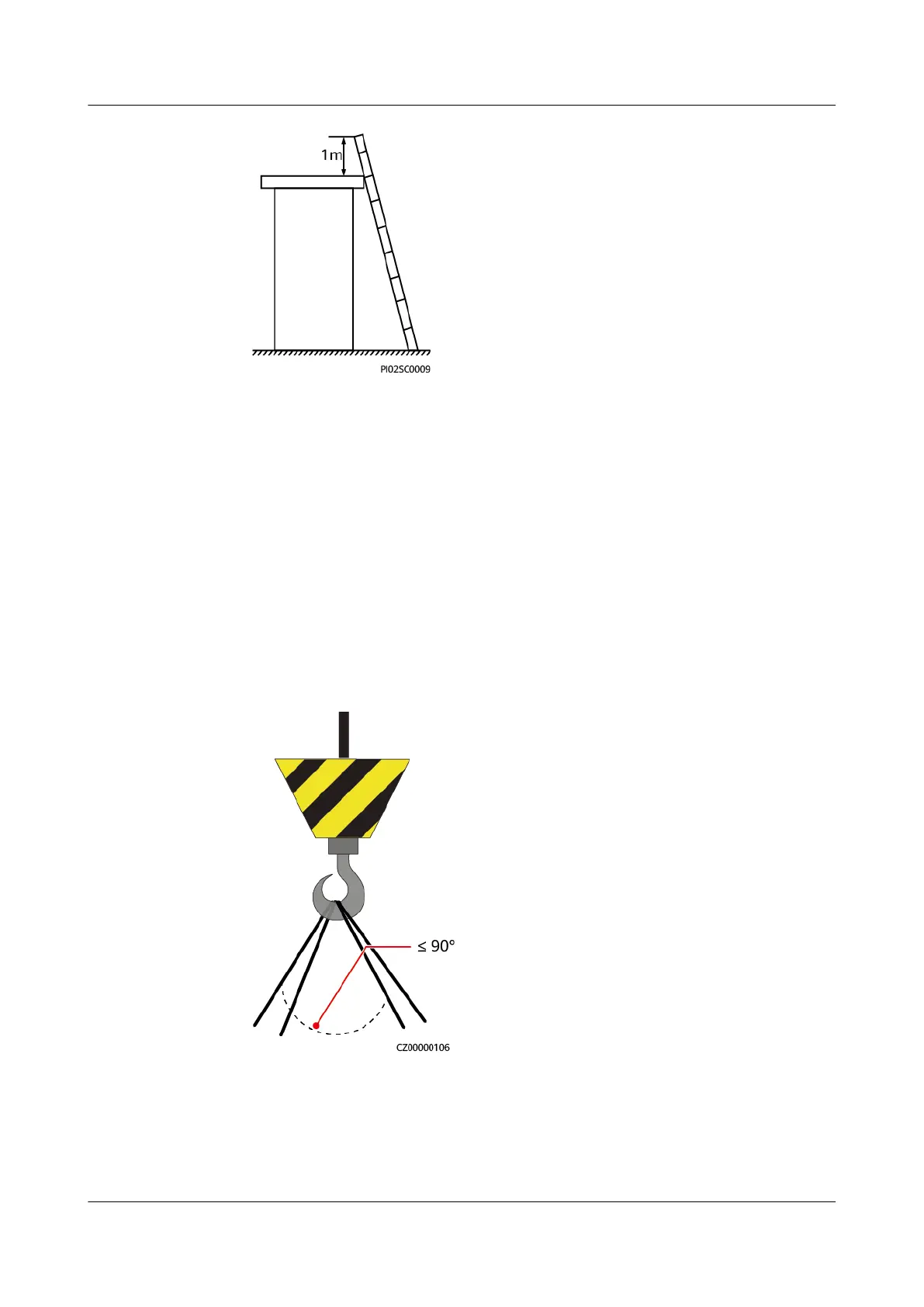

● Ensure that the angle between two hoisting ropes is no more than 90
degrees, as shown in the following gure.
Drilling Holes
● Obtain consent from the customer and contractor before drilling holes.
● Wear protective equipment such as safety goggles and protective gloves when
drilling holes.
SUN2000-(2KTL-6KTL)-L1
User Manual 1 Safety Information
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 11

Huawei SUN2000-3KTL-L1 Specifications

General

Max. efficiency	98.4%
Max. input voltage	600 V
Nominal output power	3000 W
Dimensions (W x H x D)	365 x 365 x 156 mm
Operating temperature range	-25°C to +60°C
Nominal AC voltage	220 V / 230 V / 240 V
MPPT voltage range	90 V - 560 V
Rated input voltage	360 V
Number of MPPTs	2
Cooling	Natural Convection
Protection degree	IP65
Rated output voltage	220 V / 230 V / 240 V
Output frequency	50 Hz / 60 Hz
Power factor	0.8 leading ... 0.8 lagging
THDi	<3%
Efficiency	98.4%
Warranty	10 years
Max. apparent AC power	3300 VA
Max. output power	3300 W
