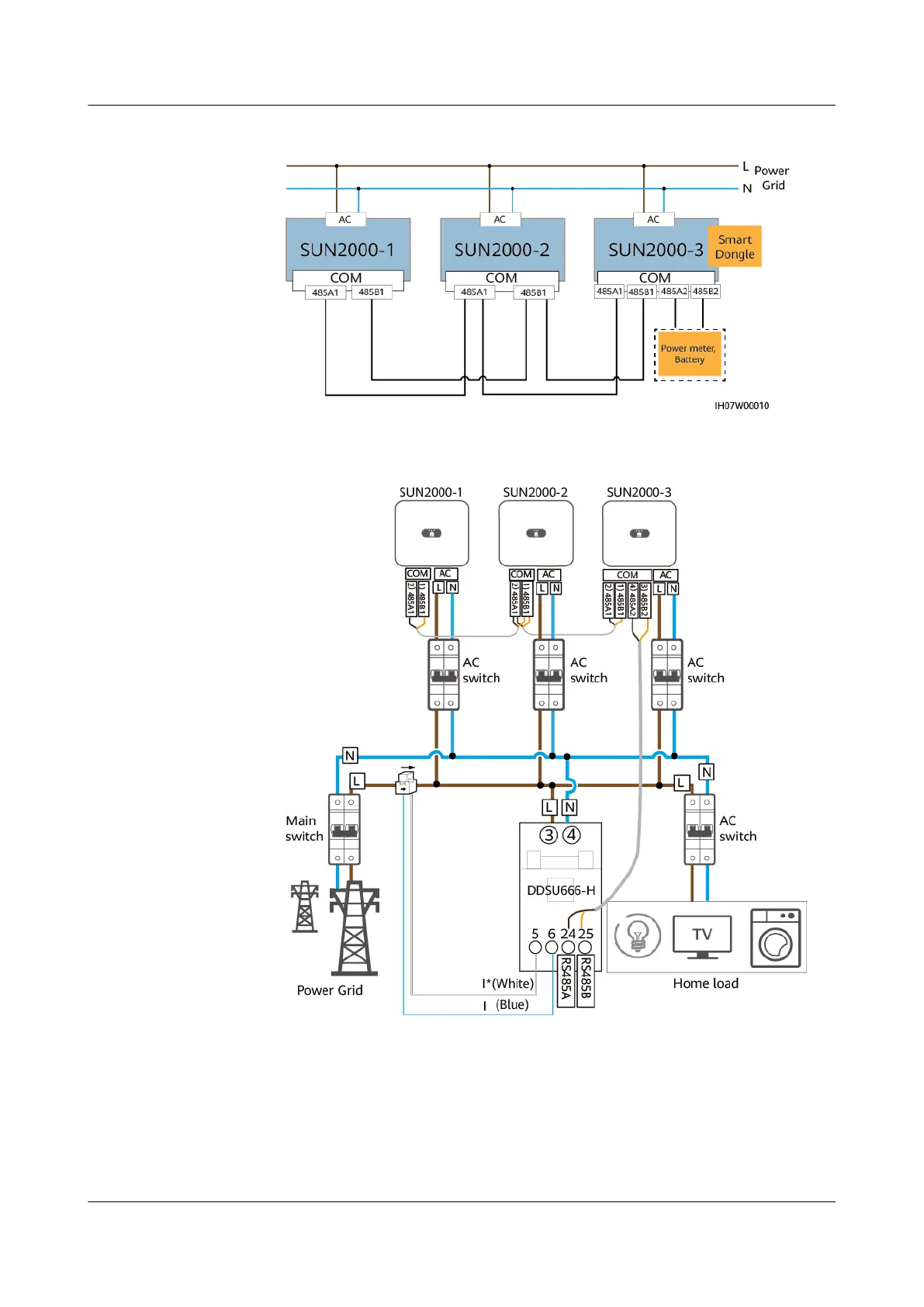

Figure 5-21 In-phase grid connection
Figure 5-22 Connecting cables to the smart power sensor (in-phase grid
connection)
SUN2000-(2KTL-6KTL)-L1
User Manual 5 Electrical Connection
Issue 10 (2023-02-13) Copyright © Huawei Technologies Co., Ltd. 61
