Huawei SUN2000-8KTL-M1 User Manual

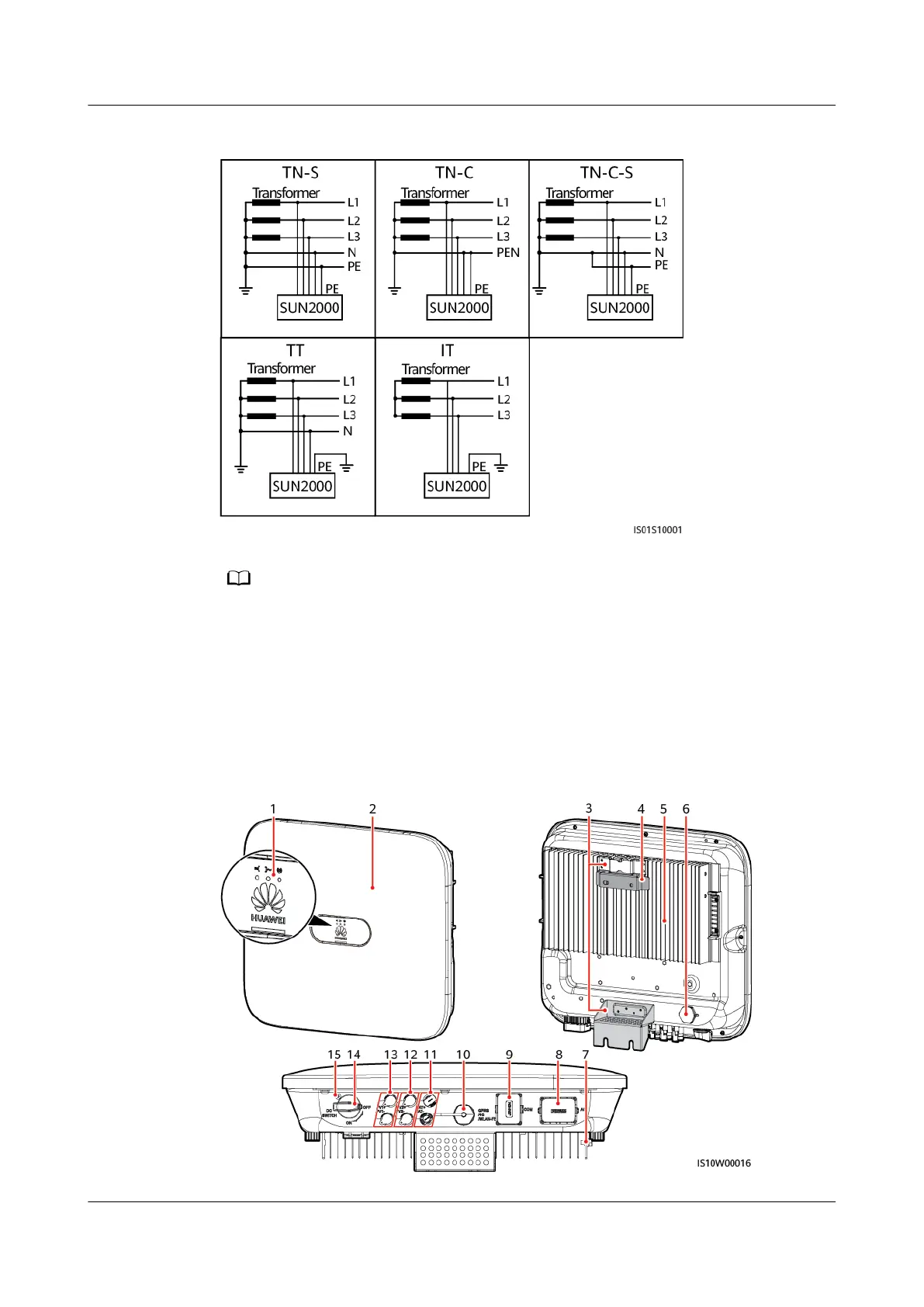

Figure 2-3 Power grid types
NO TE
● When the SUN2000 is used in the TT power grid, the N-to-PE voltage must be less than
30 V.
● When the SUN2000 is used in the IT power grid, set Isolation to Input ungrounded,
with TF.
2.2 Appearance
Figure 2-4 Appearance
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 2 Overview
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 16

Huawei SUN2000-8KTL-M1 Specifications

General

Max. Efficiency	98.6%
Max. Input Voltage	1100 V
Nominal Input Voltage	600 V
Number of MPP Trackers	2
Max. Output Power	8000 W
Nominal Output Frequency	50 Hz / 60 Hz
Weight	17 kg
Max. apparent AC power	8800 VA
Rated AC power	8000 W
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
Protection Degree	IP65
Warranty	10 years
Nominal Output Voltage	230 V / 400 V
