Huawei SUN2000-8KTL-M1 User Manual

NO TE
The nameplate gure is for reference only.
2.4 Working Principles
2.4.1 Circuit Diagram
Two PV strings connect to the SUN2000, and their maximum power points are
tracked by two maximum power point tracking (MPPT) circuits. The SUN2000
converts DC power into three-phase AC power through an inverter circuit. Surge
protection is supported on both the DC and AC sides.

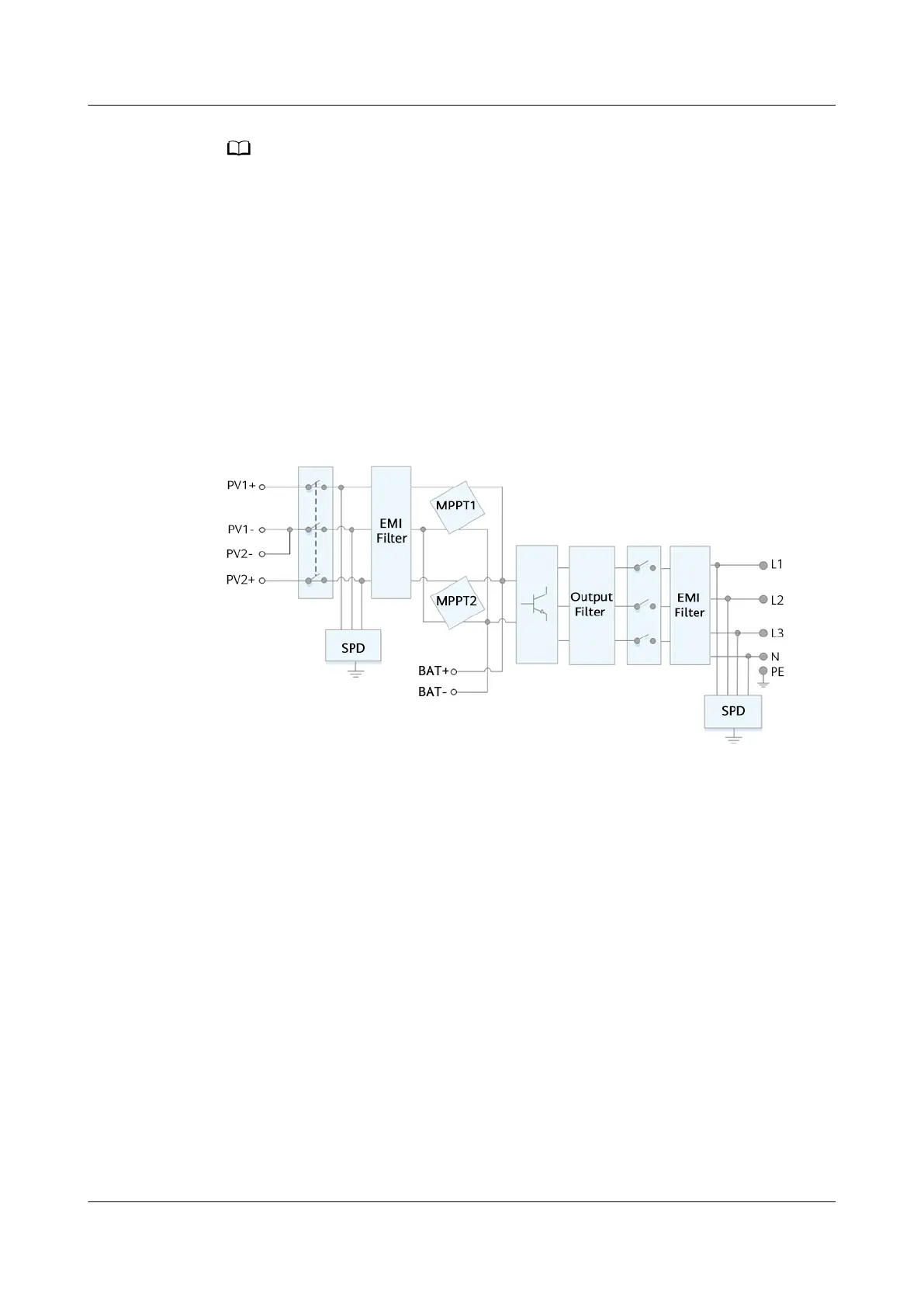

Figure 2-6 SUN2000 conceptual diagram
2.4.2 Working Modes
The SUN2000 can work in Standby, Operating, or Shutdown mode.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 2 Overview
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 21

Huawei SUN2000-8KTL-M1 Specifications

General

Max. Efficiency	98.6%
Max. Input Voltage	1100 V
Nominal Input Voltage	600 V
Number of MPP Trackers	2
Max. Output Power	8000 W
Nominal Output Frequency	50 Hz / 60 Hz
Weight	17 kg
Max. apparent AC power	8800 VA
Rated AC power	8000 W
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
Protection Degree	IP65
Warranty	10 years
Nominal Output Voltage	230 V / 400 V
