Huawei SUN2000-8KTL-M1 User Manual

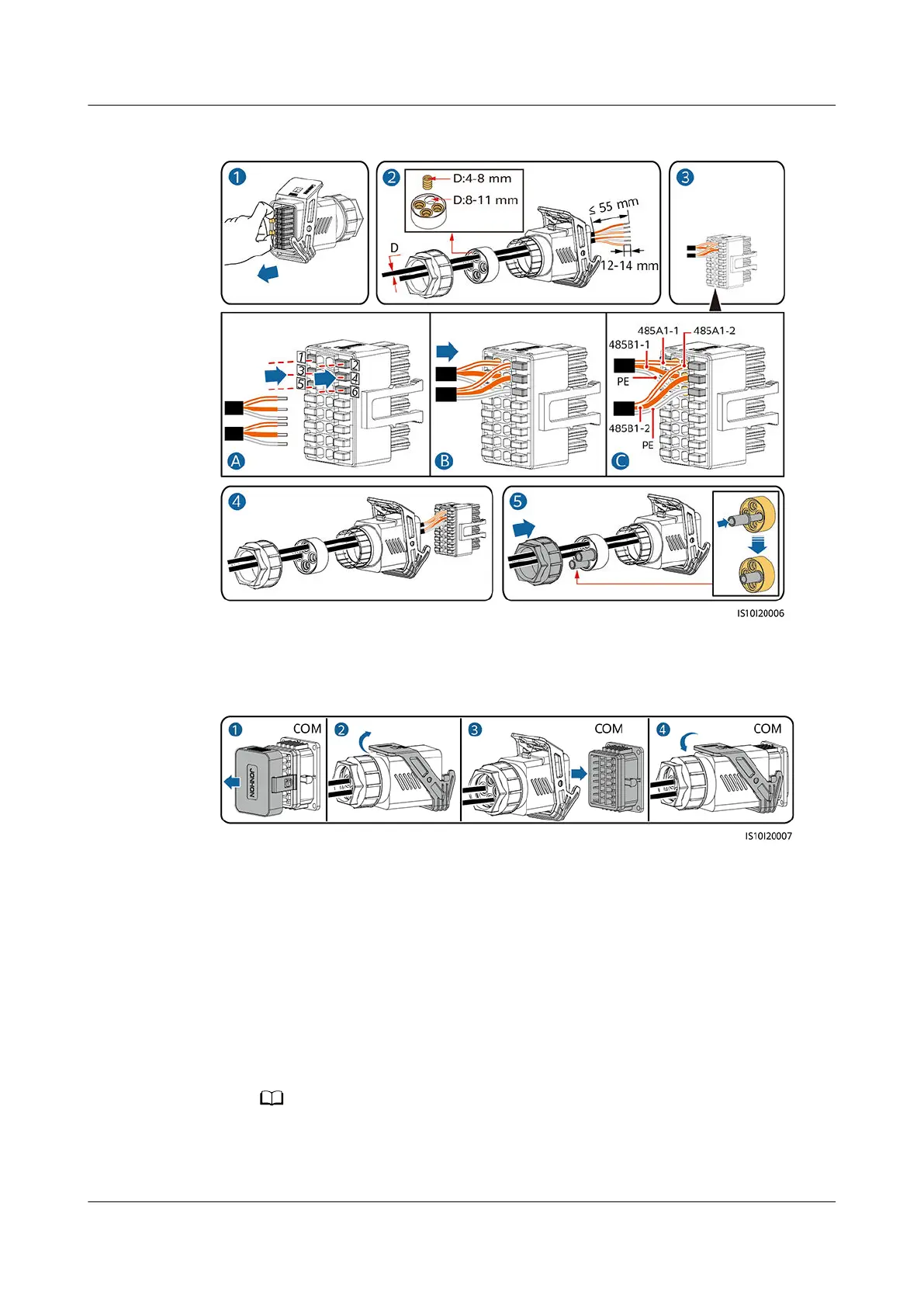

Figure 5-21 Installing the cable
Step 2 Connect the signal cable connector to the COM port.
Figure 5-22 Securing the signal cable connector
----End
5.8.2 Connecting the RS485 Communications Cable (Smart
Power Sensor)
Cable Connection
● The following gures show the cable connections between the inverter and
DTSU666-H and YDS60-C24 meters.
NO TE
The cable connections between the DTSU71 and DHSU1079-CT power meters and the
inverter are the same as those between the DTSU666-H power meter and the inverter.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 5 Electrical Connections
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 61

Huawei SUN2000-8KTL-M1 Specifications

General

Max. Efficiency	98.6%
Max. Input Voltage	1100 V
Nominal Input Voltage	600 V
Number of MPP Trackers	2
Max. Output Power	8000 W
Nominal Output Frequency	50 Hz / 60 Hz
Weight	17 kg
Max. apparent AC power	8800 VA
Rated AC power	8000 W
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
Protection Degree	IP65
Warranty	10 years
Nominal Output Voltage	230 V / 400 V
