Huawei SUN2000-8KTL-M1 User Manual

NO TE
Two M6 screw holes are reserved on both left and right sides of the enclosure for installing
an awning.
4.5.1 Wall-mounted Installation
Procedure
Step 1 Determine the positions for drilling holes and mark the positions using a marker.
Step 2 Secure the mounting bracket.
NO TE
● M6x60 expansion bolts are delivered with the SUN2000. If the length and number of the
bolts do not meet installation requirements, prepare M6 stainless steel expansion bolts
by yourself.
● The expansion bolts delivered with the inverter are used for solid concrete walls. For
other types of walls, prepare bolts by yourself and ensure that the wall meets the load
bearing requirements of the inverter.

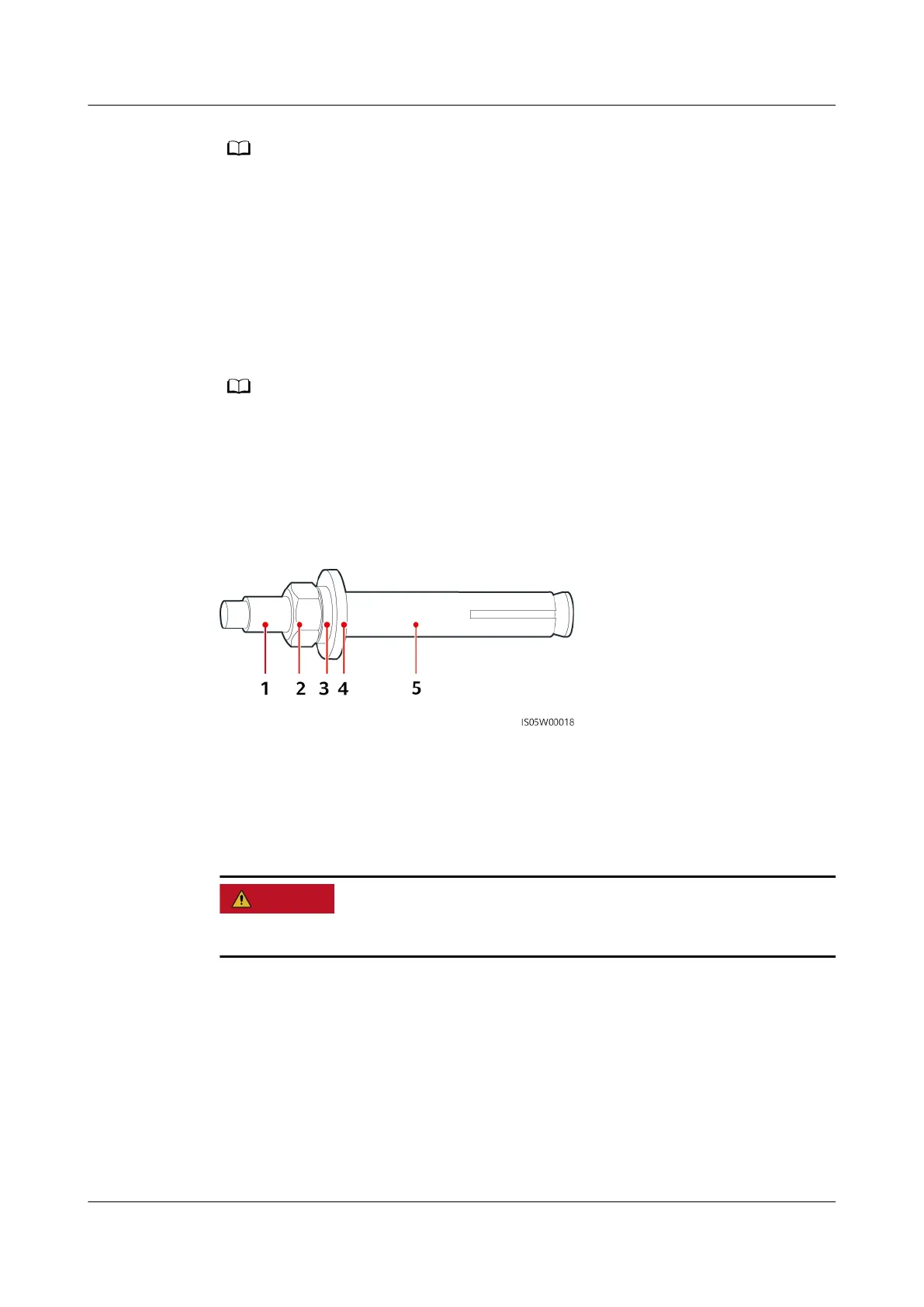

Figure 4-8 Expansion bolt composition
(1) Bolt
(2) Nut (3) Spring washer
(4) Flat washer (5) Expansion sleeve
D ANGER
Avoid drilling holes in the water pipes and cables buried in the wall.
SUN2000-(3KTL-10KTL)-M1 Series
User Manual 4 Installation
Issue 17 (2024-01-12) Copyright © Huawei Technologies Co., Ltd. 32

Huawei SUN2000-8KTL-M1 Specifications

General

Max. Efficiency	98.6%
Max. Input Voltage	1100 V
Nominal Input Voltage	600 V
Number of MPP Trackers	2
Max. Output Power	8000 W
Nominal Output Frequency	50 Hz / 60 Hz
Weight	17 kg
Max. apparent AC power	8800 VA
Rated AC power	8000 W
Operating Temperature Range	-25°C to +60°C
Cooling	Natural Convection
Protection Degree	IP65
Warranty	10 years
Nominal Output Voltage	230 V / 400 V
