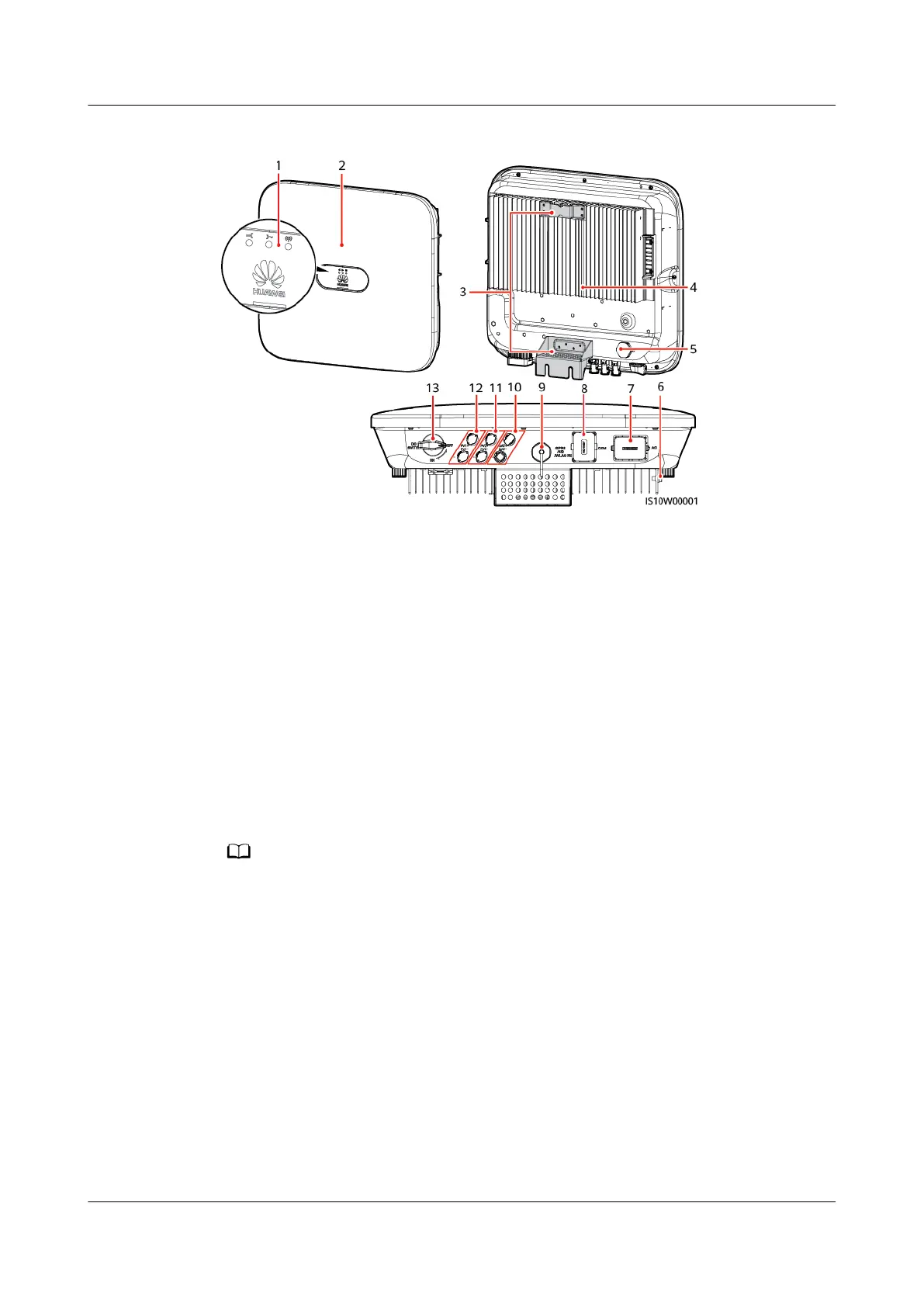

Figure 2-5 Appearance
(1) LED indicator (2) Front panel
(3) Mounting plate (4) Heat sink
(5) Ventilation valve (6) Ground screw
(7) AC output port (AC) (8) Communication port (COM)
(9) Smart Dongle port (GPRS/4G/
WLAN-FE)
(10) Battery terminals (BAT+/BAT–)
(reserved)
(11) DC input terminals (PV2+/PV2–) (12) DC input terminals (PV1+/PV1–)
(13) DC switch (DC SWITCH)
Two M6 screw holes are reserved on both left and right sides of the enclosure for installing
an awning.
SUN2000-(3KTL-10KTL)-M0
