4.4 Installing the Mounting Bracket
Installation Precautions

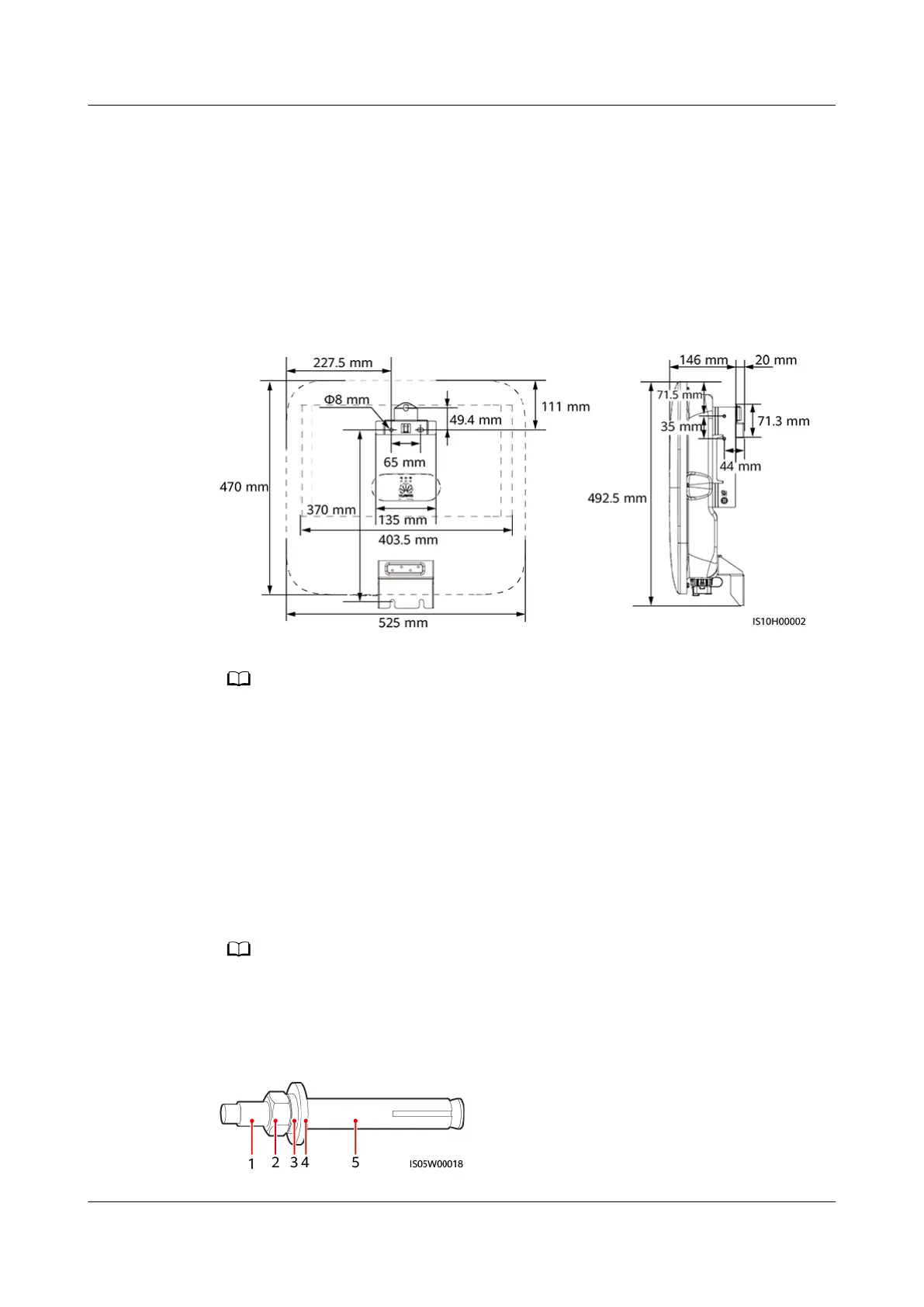

Figure 4-6 shows the dimensions of installation holes on the SUN2000.
Figure 4-6 Mounting bracket dimensions
NO TE
Two M6 screw holes are reserved on both left and right sides of the enclosure for installing
an awning.
4.4.1 Wall-mounted Installation
Procedure
Step 1 Determine the installation positions for drilling holes, and mark the positions
using a marker.
Step 2 Secure the mounting brackets.
NO TE
M6x60 expansion bolts are delivered with the SUN2000. If the length and amount of the
bolts do not meet installation requirements, prepare M6 stainless steel expansion bolts by
yourself.
Figure 4-7 Expansion bolt composition
SUN2000-(3KTL-10KTL)-M0
User Manual 4 Installation
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 24
