2.4 Working Principles
2.4.1 Circuit Diagram
Two PV strings connect to the SUN2000, and their maximum power points are
tracked by two maximum power point tracking (MPPT) circuits. The SUN2000
converts DC power into three-phase AC power through an inverter circuit. Surge
protection is supported on both the DC and AC sides.

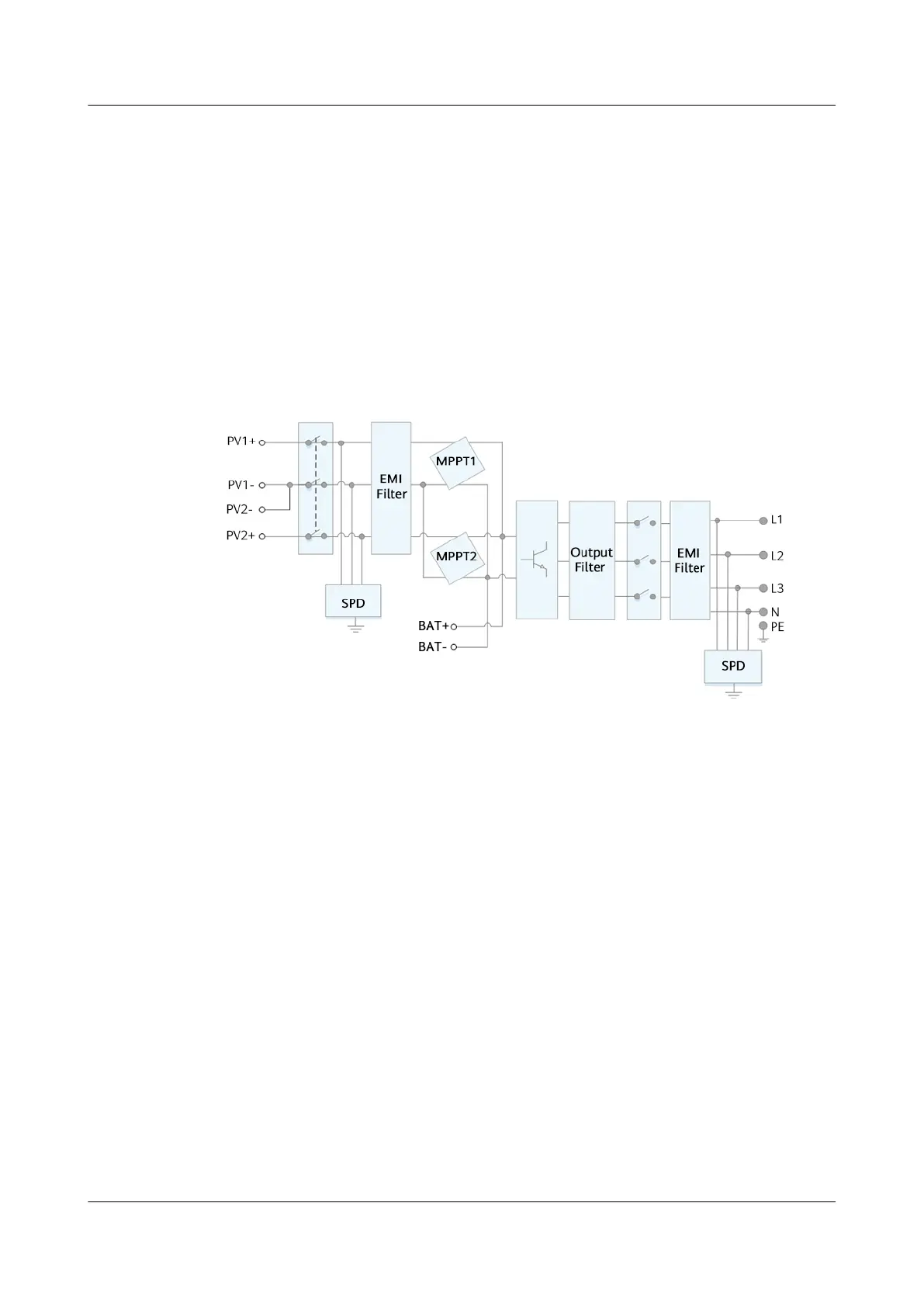

Figure 2-7 SUN2000 conceptual diagram
2.4.2 Working Modes
The SUN2000 can work in Standby, Operating, or Shutdown mode.
SUN2000-(3KTL-10KTL)-M0
User Manual 2 Overview
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 15

Huawei SUN2000 M0 Series Specifications

General

Rated AC Output Power	3000W
European Efficiency	96.7%/97%/97%/97.3%/97.5%/97.8%
Communication	RS485, Wi-Fi
Protection Degree	IP65
Weight	17 kg
Dimensions	440 x 650 x 220 mm
Max. efficiency	98.6%
MPPT voltage range	200-1000V
No. of MPPTs	2
Operating temperature range	-25°C to +60°C
Cooling method	Natural convection
Protection rating	IP65
AC output voltage	230V
