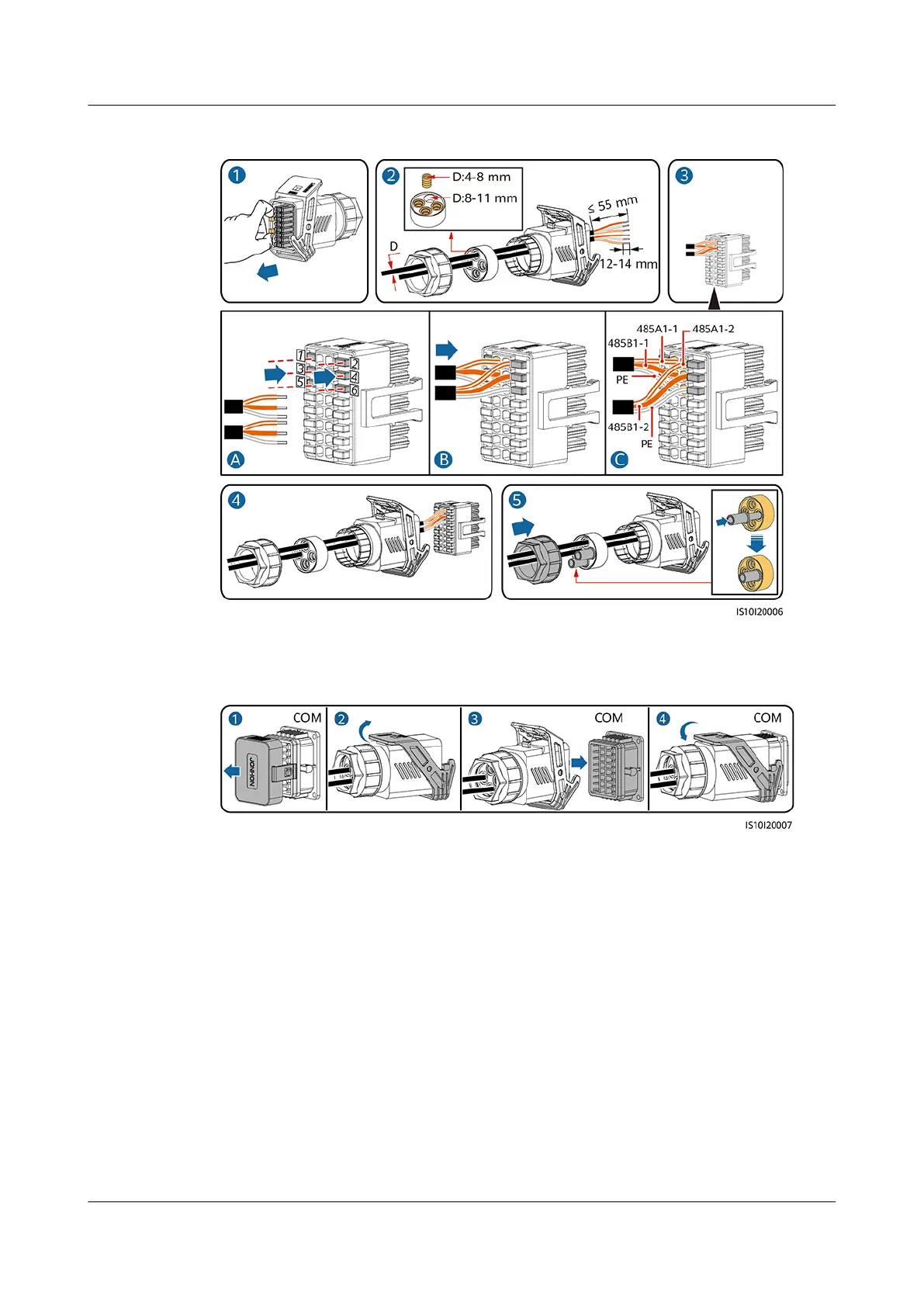

Figure 5-22 Installing the cable
Step 2 Connect the signal cable connector to the COM port.
Figure 5-23 Securing the signal cable connector
----End
5.6.2 Connecting the RS485 Communications Cable (Smart
Power Sensor)
Cable Connection
The following gure shows the cable connections between the inverter and the
Smart Power Sensor.
SUN2000-(3KTL-10KTL)-M0
User Manual 5 Electrical Connections
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 48
