Huawei SUN2000 M0 Series User Manual

(1) Bolt (2) Nut (3) Spring washer
(4) Flat washer (5) Expansion tube
D ANGER
Avoid drilling holes in the utility pipes or cables attached to the back of the wall.
NO TICE
● To prevent dust inhalation or contact with eyes, wear safety goggles and an
anti-dust respirator when drilling holes.
● Clean up any dust in and around the holes using a vacuum cleaner and
measure the distance between holes. If large hole tolerance exists, position and
drill holes again.
● After removing the bolt, spring washer, and
at washer, level the front of the
expansion tube with the concrete wall. Otherwise, the mounting brackets will
not stay steady on the concrete wall.
● Partially loosen the nut,
at washer and spring washer of the two expansion
bolts below.

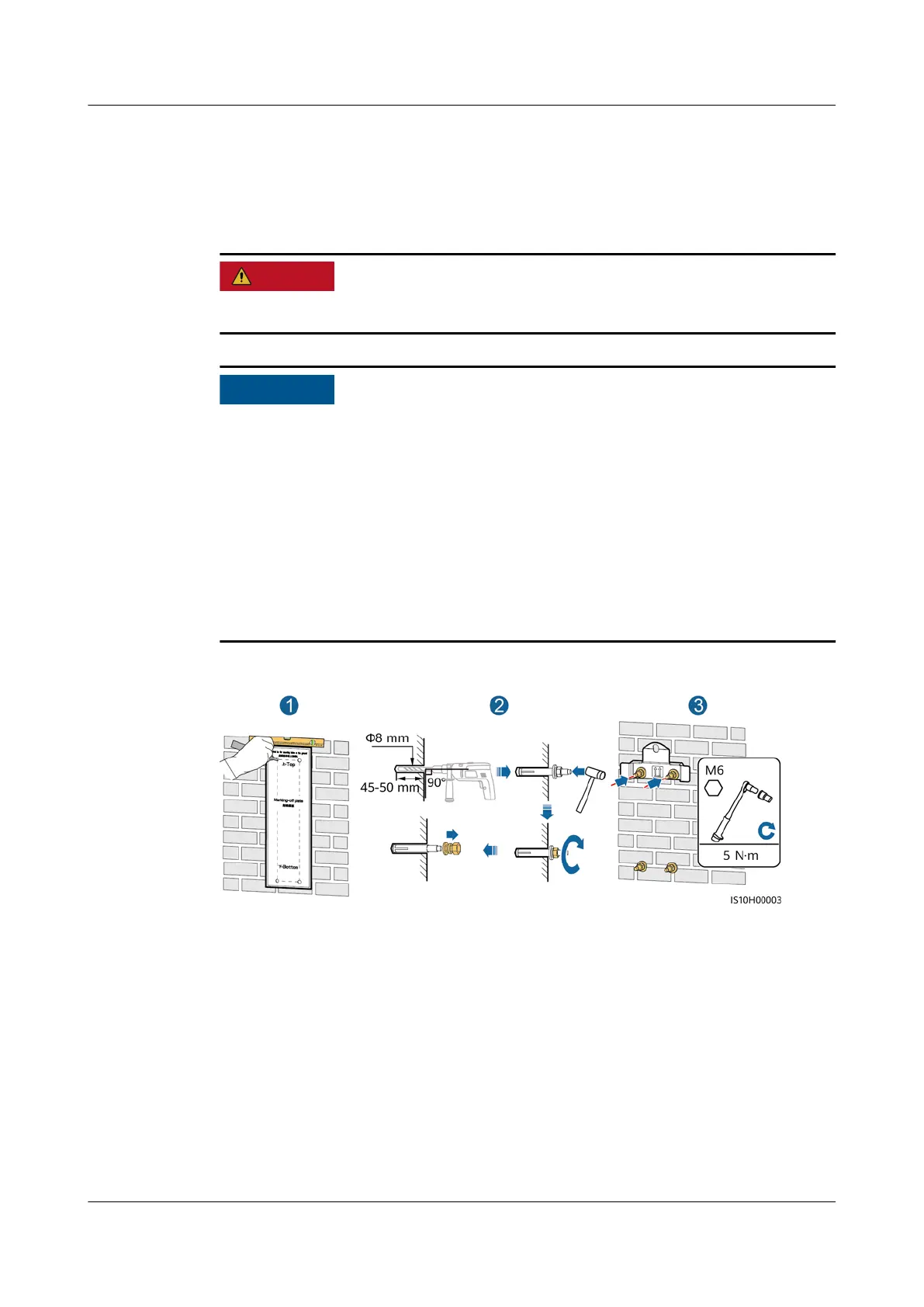

Figure 4-8 Installing the Mounting Bracket
Step 3 Install the SUN2000 onto the mounting bracket.
Step 4 Tighten nuts.
SUN2000-(3KTL-10KTL)-M0
User Manual 4 Installation
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 25

Huawei SUN2000 M0 Series Specifications

General

Rated AC Output Power	3000W
European Efficiency	96.7%/97%/97%/97.3%/97.5%/97.8%
Communication	RS485, Wi-Fi
Protection Degree	IP65
Weight	17 kg
Dimensions	440 x 650 x 220 mm
Max. efficiency	98.6%
MPPT voltage range	200-1000V
No. of MPPTs	2
Operating temperature range	-25°C to +60°C
Cooling method	Natural convection
Protection rating	IP65
AC output voltage	230V
