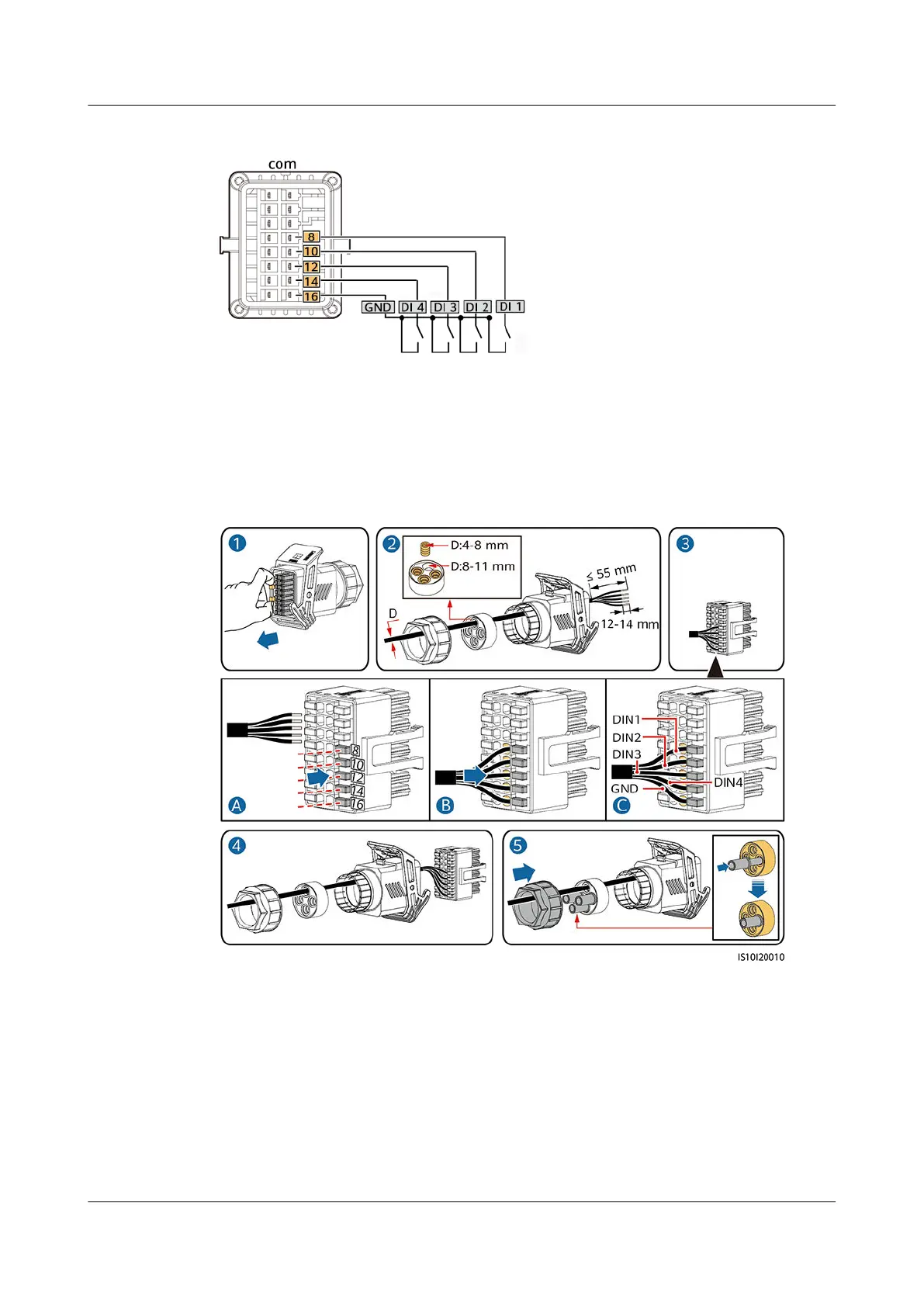

Figure 5-30 Cable connection
Procedure
Step 1 Connect the signal cable to the signal cable connector.
Figure 5-31 Installing the cable
Step 2 Connect the signal cable to the COM port.
SUN2000-(3KTL-10KTL)-M0
User Manual 5 Electrical Connections
Issue 06 (2020-10-23) Copyright © Huawei Technologies Co., Ltd. 53
