Adjusting Cargo Tie-Downs
The system has four adjustable
cargo tie-downs, that can be
placed on the upper and lower
slides of the rail.

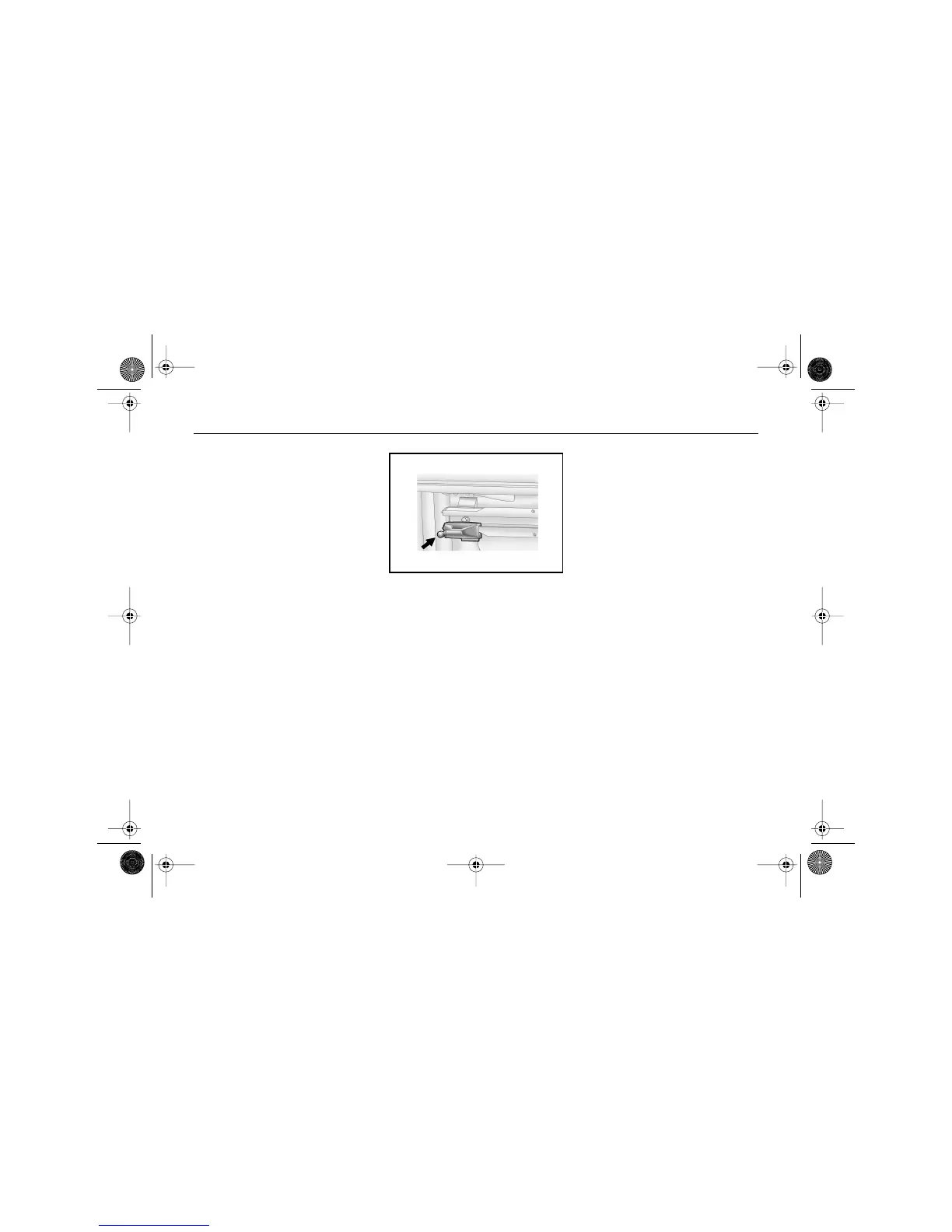

To adjust a cargo tie-down, do the
following:
1. Grasp the head of the pin and
pull outward to retract the
locator pin.
2. While holding the locator pin
in the retracted position, slide
the tie-down along the rail to
the desired position.
3. Make sure the locator pin is
aligned with a hole on the rail.
If the pin does not line up with
a hole on the rail, the tie down
may not be installed properly.
4. Release the locator pin to
secure the tie-down.
The tie-down will not move
when the pin is completely in-
stalled.
5. Repeat the procedure for the
other tie-downs, if necessary.
