Humminbird Network Setup
S
onar Source Overview
When the network is configured, you can select any transducer from the network to provide the sonar data on the control head. The
sonar sources can be shared between control heads or you can use individual sonar sources on each control head.

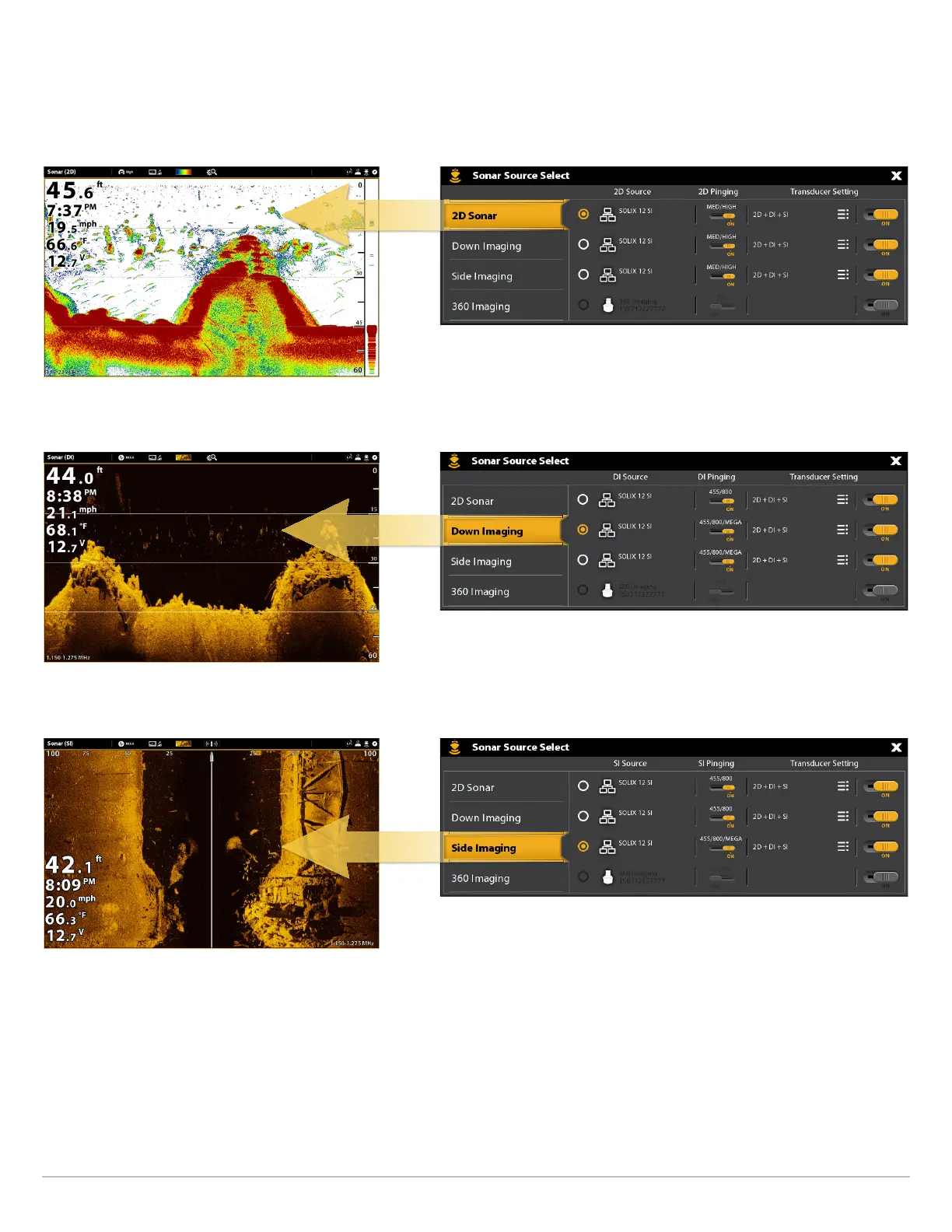

The transducer you select on the 2D Sonar tab will provide the data for the 2D Sonar Views and related digital readouts.
The transducer you select on the Down Imaging tab will provide the data for the Down Imaging Views and related digital readouts.
The transducer you select on the Side Imaging tab will provide the data for the Side Imaging Views and related digital readouts.
