Mount the Installation Brackets — End Mount
End mount the headrail when conventional mounting techniques will not work — for example,
in an arched window opening.

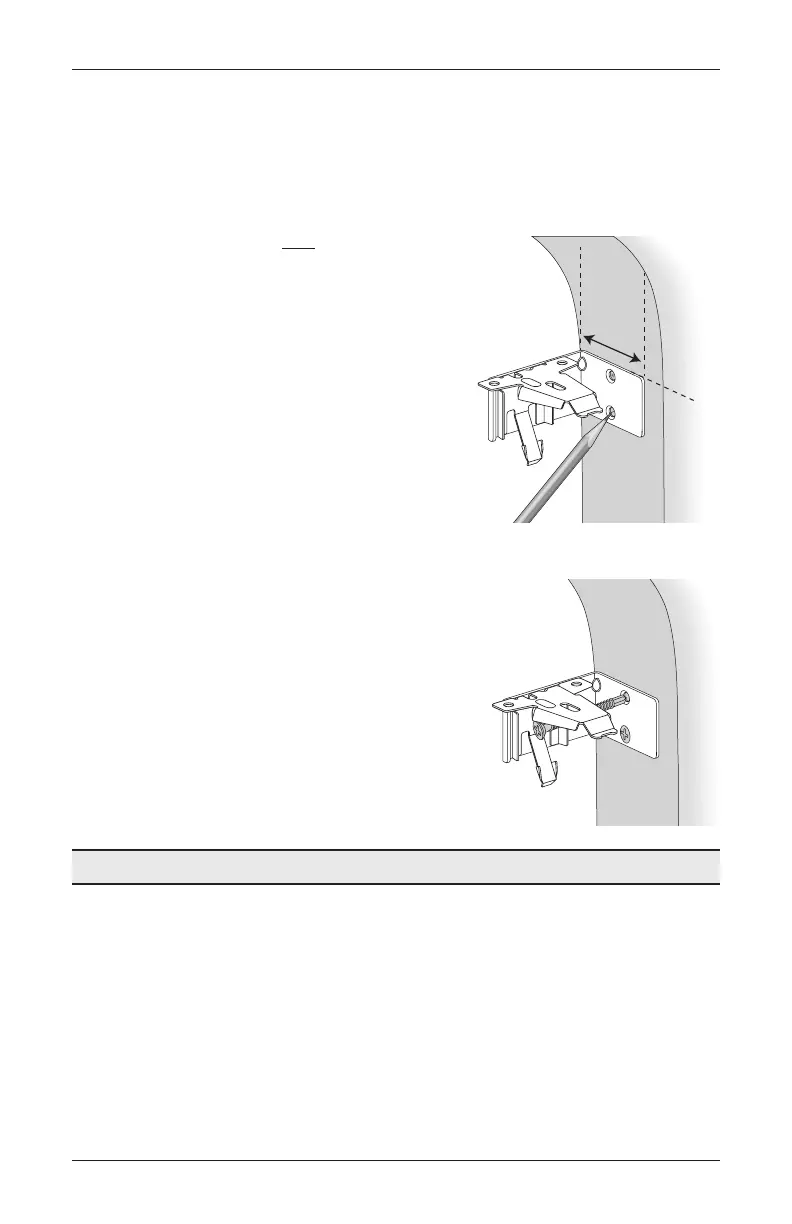

Position the end mount brackets so that the top of the attached installation brackets are at
the ordered height of the shade.
CAUTION: Both brackets must be installed at
the same depth and height.
Mark both screw holes.
The mounting surface must be vertical and
flat, not part of an arched curve.
Minimum mounting depth is 1
1
⁄
4
" for
3
⁄
8
" and
3
⁄
4
" pleat sizes and 2" for the 1
1
⁄
4
" pleat size.
Minimum mounting depth for a fully recessed
end mount is 2
3
⁄
8
" for
3
⁄
8
" and
3
⁄
4
" pleat sizes
and 3" for the 1
1
⁄
4
" pleat size.
Drill the screw holes using a
3
⁄
32
" drill bit.
Attach the end mount installation brackets using
the flat head screws provided.
CAUTION: Drywall mounting is not recommended.
IMPORTANT: For instructions on installing an
arch over a rectangular shade, see the Installation,
Operation, and Care instructions that came with your
arch shade.
Proceed to “Install the Shade” on page8.
1
1
∕
4
"
Minimum
Shade
Height
