INSTALLATION
9

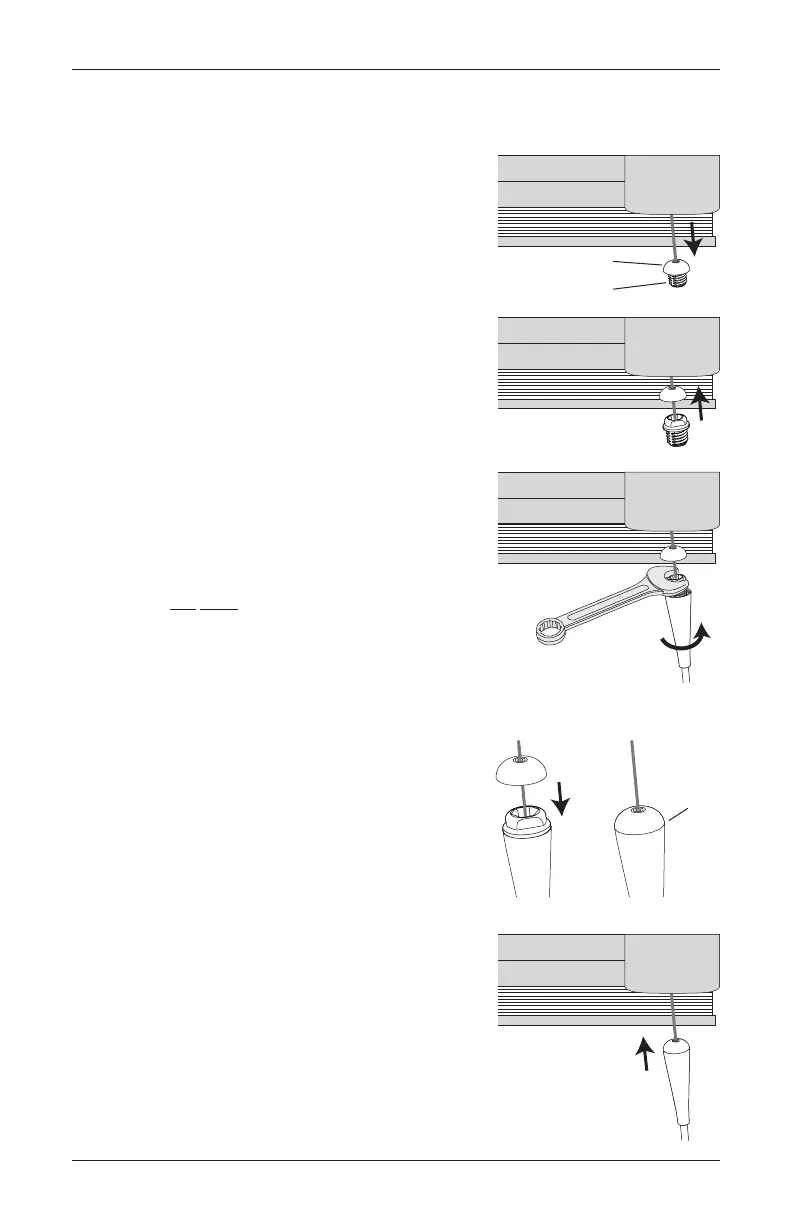

Install the Wand
The wand must be securely attached to the shade for proper operation.
Gently pull out the bumper and threaded connector
until it is visible.
Slide the bumper away from the threaded connector.
CAUTION: Do not grip the bumper on top of the
connector and attempt to screw on the wand at this
point. Secure attachment of the wand cannot be
guaranteed if tightened by hand.
Hold the threaded connector with a
5
⁄
16
" (8 mm) open
end wrench, and screw the hollow end of the wand
onto the threaded connector, as shown. If necessary,
pliers can be used instead of a wrench.
Continue to firmly rotate the wand until you feel
it click two times and the wand stops moving.
This ensures the wand is securely attached.
CAUTION: If the wand is not properly secured, it
will come loose after repeated use.
Slide the bumper back onto the threaded connector.
Make sure the bumper is properly aligned and
seated tightly on top of the threaded connector.
NOTE: The underside of the bumper matches the
shape on the top of the threaded connector.
Gently release the wand.
Bumper
To Next Page
