INSTALLATION
3
Installation Overview
Your order will include the correct number of
installation brackets for your shade width, as shown
in the table.
There are two sizes of installation brackets, one
for
3
⁄
8
" and
3
∕
4
" pleat sizes and a larger one for
the 1
1
∕
4
" pleat size.
For end mounts, only two brackets are used up
to the maximum width of 72".
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
Refer to the appropriate page below based on your order:
Inside Mount — Page4
Outside Mount — Page5
End Mount — Page7
Shade
Width
Brackets
Required
12" – 36" 2
36
1
⁄
8
" – 72" 3
72
1
⁄
8
" – 108" 4
108
1
⁄
8
" – 144" 5
144
1
⁄
8
" – 174" 6

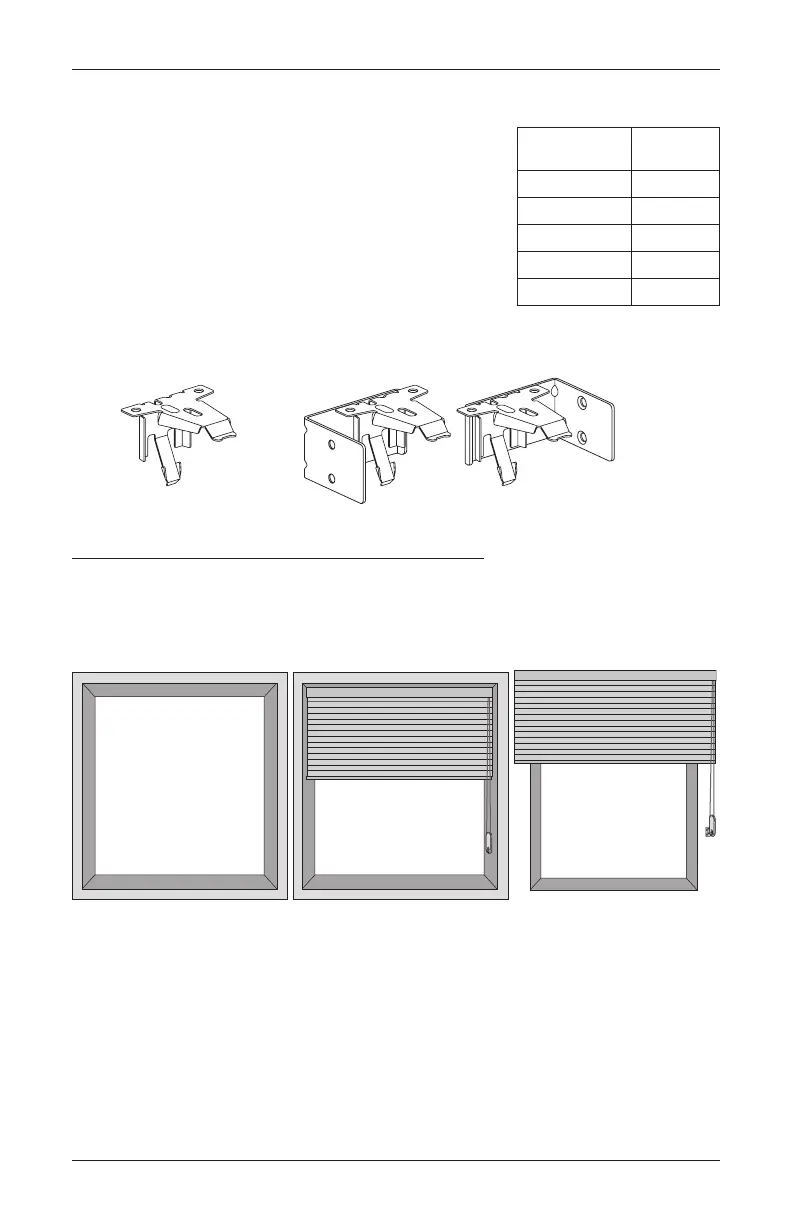

Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Head Jamb
Sill
Jamb Jamb
Bracket
Brackets
