Hunter Douglas Vignette Installation

INSTALLATION
8

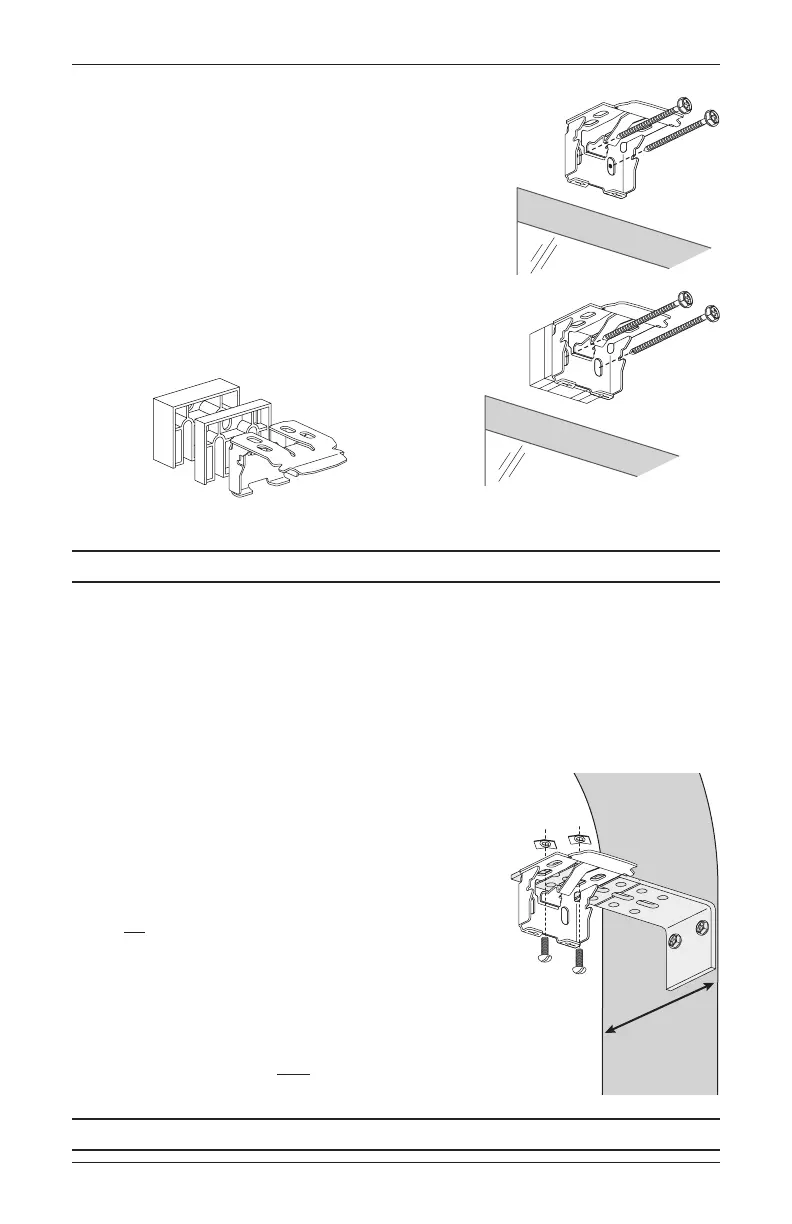

■ Pre-drill the screw holes using a
3
/ 32 " drill bit.
CAUTION: Use drywall anchors when mounting
into drywall.
■ Attach the installation bracket using the screws provided.
IMPORTANT: The front edges of the installation
bracketsmust be level and aligned to each other.
■ If using spacer blocks, attach the spacer
block(s) and installation bracket to a flat vertical
mounting surface with #6mounting screws long
enough for asecure installation.
Spacer
Blocks
1
/ 2 "
1
/
4
"
➤ A maximum of 1
1
/ 2 " of spacer blocks per installation bracket is recommended.
Proceed to “Install the Shade” on page9.
Mount the Installation Brackets — EndMount
End mount the headrail when conventional mounting techniques will not work — for example, in
an arched window.
■ Mount the extension brackets on a flat vertical surface at least 1
1
/ 2 "wide.
NOTE: Minimum mounting depth for a fully recessed end mount is 4" wide.
➤ The top of the extension brackets should be at the
desired shade height. The brackets should be level
and aligned.
CAUTION: The rear of the extension brackets
must be flush against a flat mounting surface. Do
not mount the extension brackets onthe curve of
the arch opening.
■ Attach the installation brackets to the underside of
the extension brackets using the provided screws and
speednuts.
CAUTION: Both brackets must be installed at the
same depth and height.
Proceed to “Install the Shade” on page9.
3"
Spacer
Blocks
Longer
Screws
4"
Fully Recessed
Minimum
Speed Nuts
Screws
