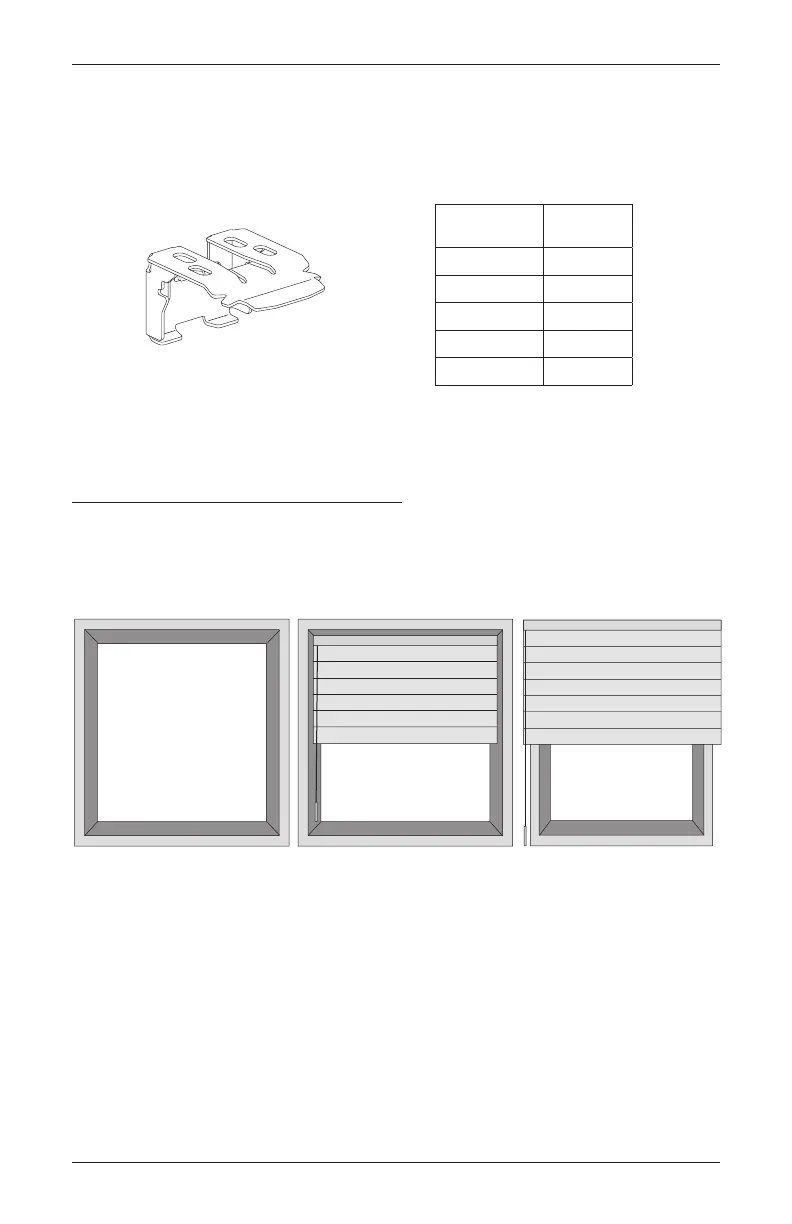

Installation Overview
■ Your order will include installation brackets specific to your shade.
➤ The number of installation brackets required varies with shade width, as shown in
the table.
■ Two-On-One Headrail Shades. The appropriate number of brackets are provided for
each panel.
Mounting Types and Window Terminology
If the installation brackets are mounted correctly, the rest of the installation process follows
easily. To prepare for this important first step, review the mounting types and basic window
terminology illustrated below.
■ Refer to the appropriate page below based on your order:
➤ Inside Mount — Page6
➤ Outside Mount — Page7
➤ End Mount — Page8
Installation
Bracket
Outside Mount
Shade mounts outside
window opening.
Inside Mount
Shade fits within
window opening.
Collectively, the sill and
jambs are called the
“window casement.”
Molding
Head Jamb
Sill
Jamb Jamb
Shade Width
Brackets
Required
12" – 38" 2
38
1
/ 8 " – 72" 3
72
1
/ 8 " – 96" 4
96
1
/ 8 " – 120" 5
120
1
/ 8 " – 140" 6
