AC Electric Systems
8.2
A 30 amp resettable shore power circuit breaker switch
panel (Fig. 8.3) is installed to protect the boat’s AC cir-
cuitry from a shore connection power fault. The panel will
have one or two breakers, depending on the existence
of the electric stove and/or air conditioning option. The
panel is located in the aft cabin’s starboard aft bulkhead.
NOTE: It is important that you review the “Electric Shock” pam-
phlet included within your manuals documents and understand
the importance of electrical safety. While electricity provides
tremendous convenience, it has the potential to injure and kill.
Be sure and follow the warnings posted in this manual and in
the manufacturer’s OEM manuals included in you manual pack
and practice good safety measures. Always have trained, com-
petent technicians service your electrical systems.

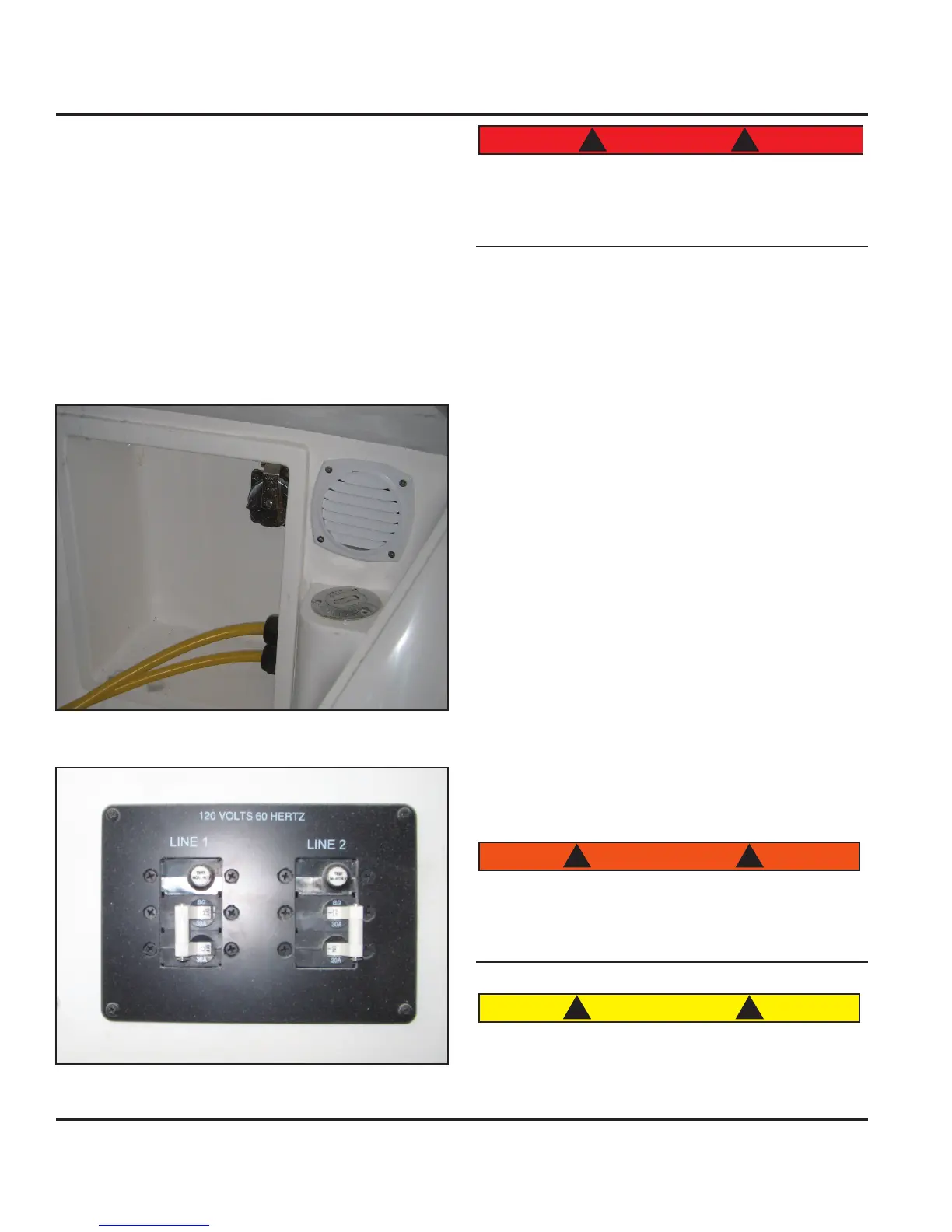

Figure 8.2
Figure 8.3
Never work on an energized circuit! Always treat
any circuit as if it were live! Always have trained,
competent technicians to service your electrical
systems!
8.2.1.2 Connect and Turn on Shore Power
Turn off all equipment breakers on the AC Panel (Fig.
8.5).
Turn off “AC Main” breaker(s) on the AC Panel.
Turn off shore power inlet breaker(s) (Fig. 8.3).
Plug power cable (Fig. 8.4) into shore power inlet.
Turn clockwise to lock.
Thread the locking ring onto the boat receptacle to
prevent accidental unplugging.
Plug power cable (Fig. 8.4) into dock side power
outlet.
Turn on shore power breaker on the dock.
Turn on shore power inlet breaker(s).
Turn on main AC breaker(s).
Turn on desired equipment breakers.
8.2.1.3 Disconnect Shore Power
Complete the above connection instructions in reverse
and with opposite actions (turn off vs. turn on, etc.).
Using a damaged or improper cord for shore power
can cause electrical shock and serious injury. Use a
cord specifically designed for shore power connec-
tion. Do not use a household extension cord.
Water is an excellent conductor of electricity. Keep
shore power cord out of water. Do not operate any
AC device while you or the cord are in water. To
prevent injury or equipment damage, keep all AC
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
