Hunter TCX50 - Wheel Clamping Pedal; Air Inflation Pedal

Operation Instructions for TCX50 Tire Charger
18

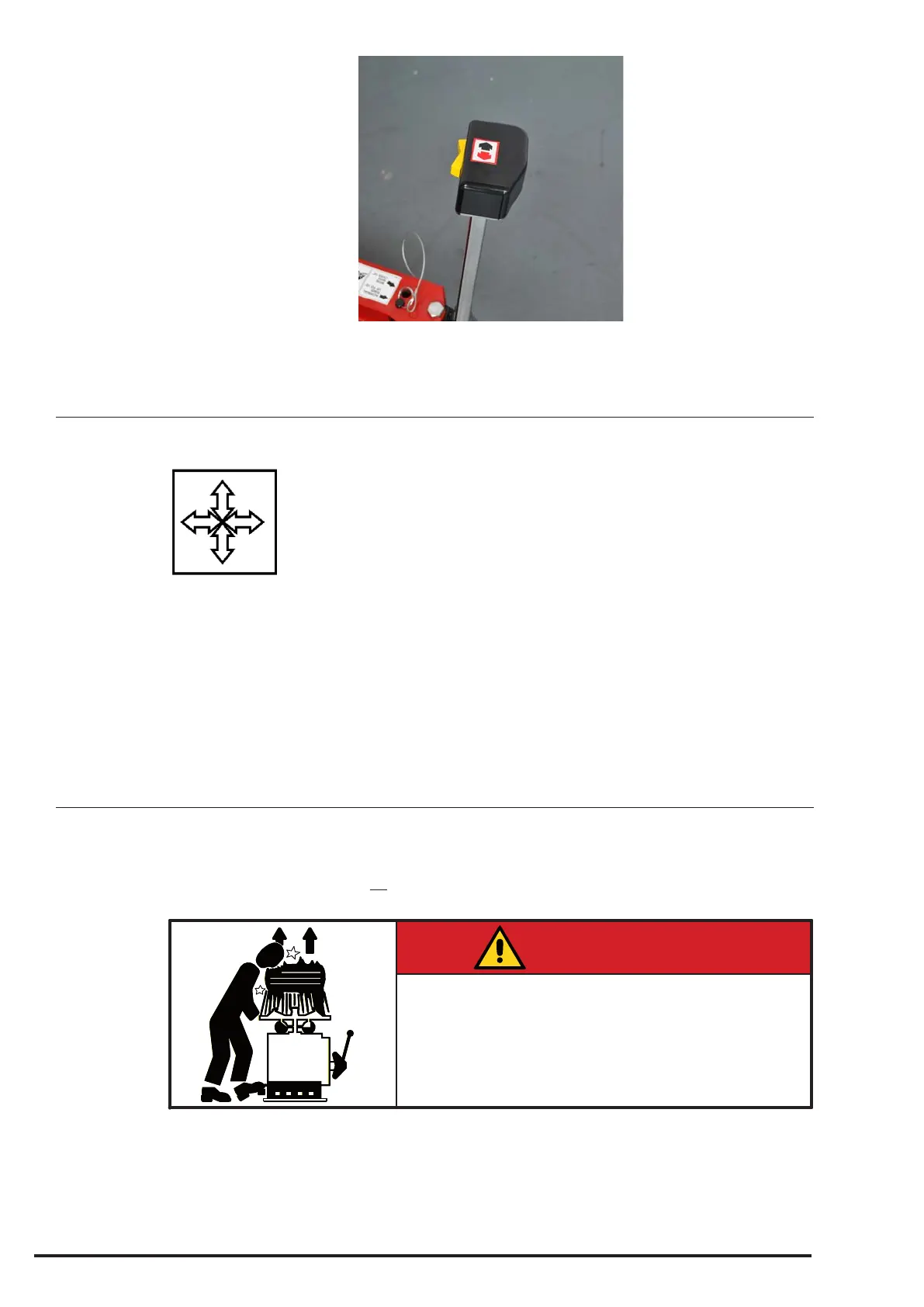

Press the “In” button to close bead breaker arm and loosen bead (red arrow).
Press the “Out” button to allow the bead breaker arm to open (black arrow).
1.12 Wheel Clamping Pedal
The wheel clamping pedal has three positions (modes of operation): up
(expand), neutral (stop), and down (retract).
With the clamps in the fully retracted position or clamped against the
outside of a rim, step down fully on the pedal to expand the wheel clamps
(clamps move outward). The clamps continue to expand until contacting
the rim or until fully expanded.
Internal Clamping:
Press the pedal all the way down to close the 4 sliding clamps completely.
Put the wheel on the table top and depress pedal all the way down, (the pedal will move in the
upper position). The 4 sliding clamps will open and clamp the wheel.
External clamping:
Press the pedal to the middle position to position the 4 sliding clamps so that the reference on
the table top is more or less in line with the tire diameter stamped on the sliding clamp.
Place the wheel on the table top and push down on the wheel while depressing the pedal all
the way to clamp the wheel.
1.13 Air Ination Pedal
On the left side of the base, the air ination pedal operates the two-stage air ination system.
Refer to illustrations on page 35. The pedal controls the air going to the ination hose and
the air ination jets.
• EXPLOSION HAZARD
• Never exceed tire pressure recommended by
tire manufacturer. Never mismatch tire size
and rim size.
• Avoid personal injury or death.
DANGER
