Operation Instructions for TCX50 Tire Charger
27

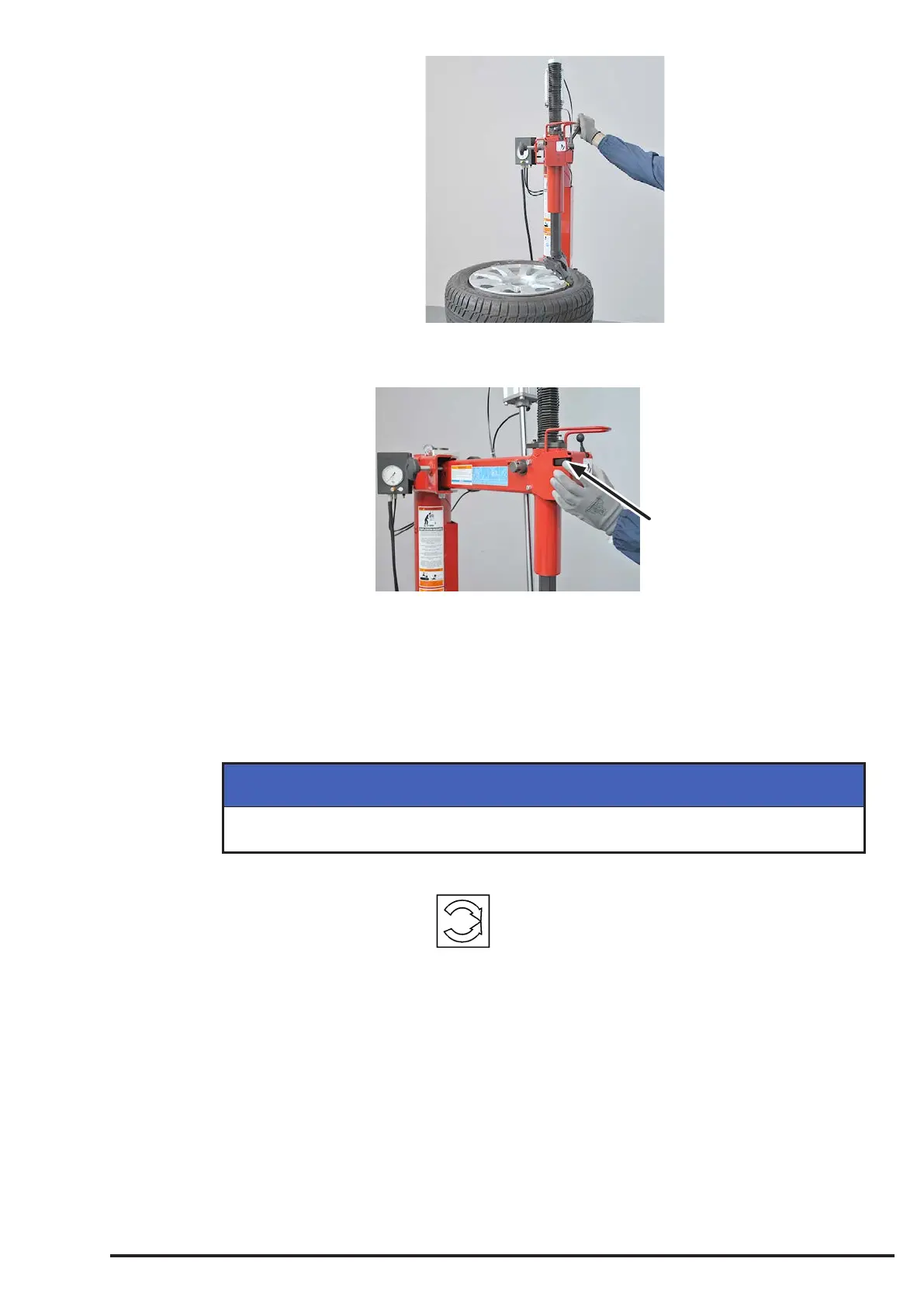

Pressing the release button it is possible to move the horizontal arm in “non working position”
without unlock the exagonal bar.
Release
Button
Demount the Outer Bead
Position the mount/demount head against the outer edge of the upper rim lip. The plastic
surfaces should contact the rim lip.
Slide the mount/demount head in or out along the upper rail and lower the head into position.
Lock the lever. Adjust the diameter knob for correct side spacing. The mount / demount head
will automatically build in the proper vertical spacing.
NOTICE
Always make sure the wheel is being rotated while inserting the automatic lever.
Locate an area with a gap between the tire and wheel.
Press the wheel rotation pedal
to rotate the wheel clockwise. While rotating, insert
the automatic lever into the rim / tire assembly using the control switch.
