Operation Instructions for TCX50 Tire Charger
39

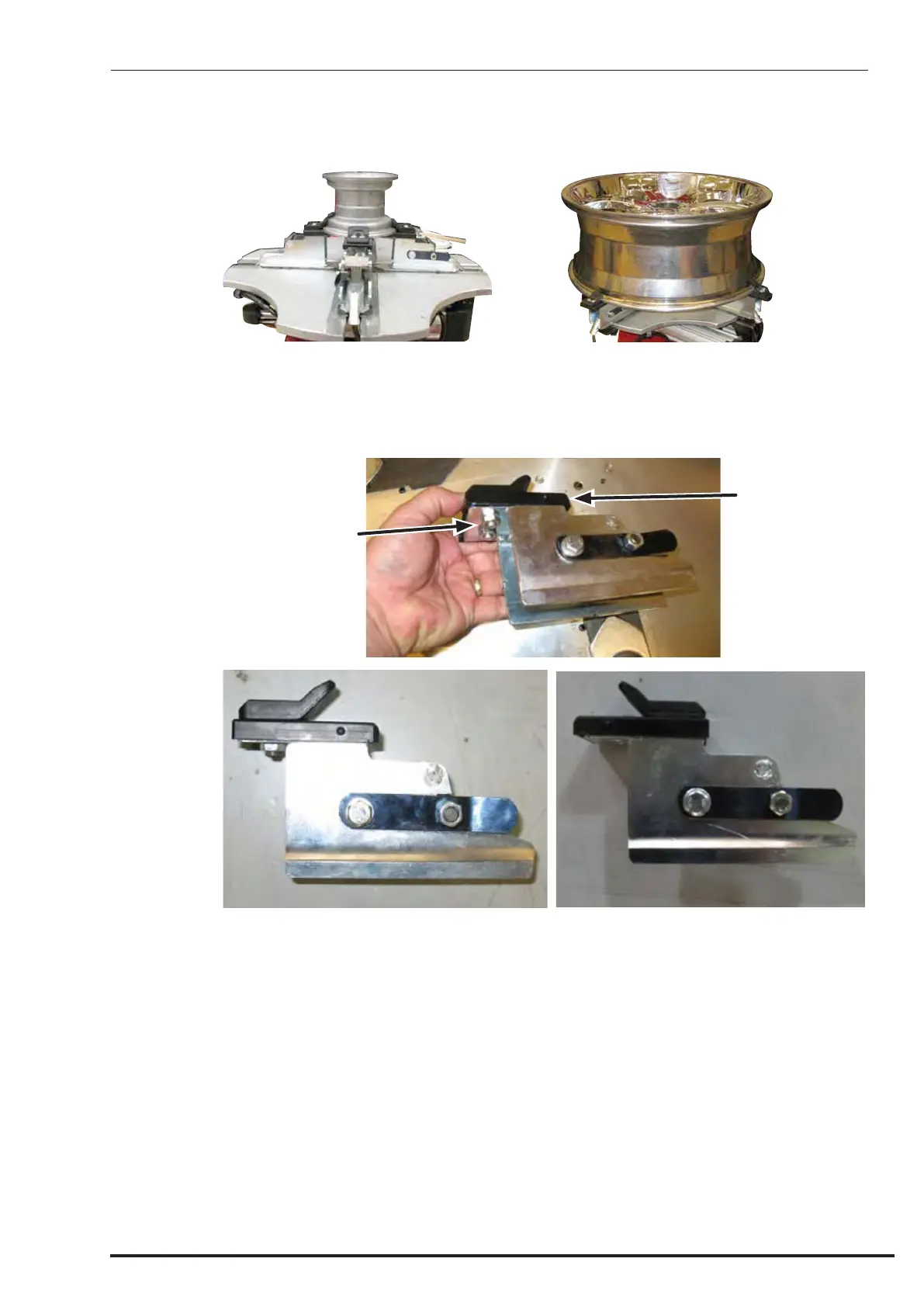

2.7 Optional Clamping Jaw Extensions
The clamping jaw extension / reducers add 4 inches (102 mm) of exterior clamping OR
reduce external clamping by 5 inches (127 mm).
JAW ADAPTORS IN REDUCER
CONFIGURATION ON 6” WHEEL
JAW ADAPTORS IN EXTENSION
CONFIGURATION ON 26” WHEEL
The jaw adaptors may be congured for either extension or reduction by removing the two
nuts and screws from the adaptor as shown below, rotating the adaptor plate 180°, and re-
securing.
ROTATE
ADAPTOR
PLATE
REMOVE NUTS
AND SCREWS
JAW ADAPTORS IN REDUCER
CONFIGURATION
JAW ADAPTORS IN EXTENSION
CONFIGURATION
