MAINTENANCE

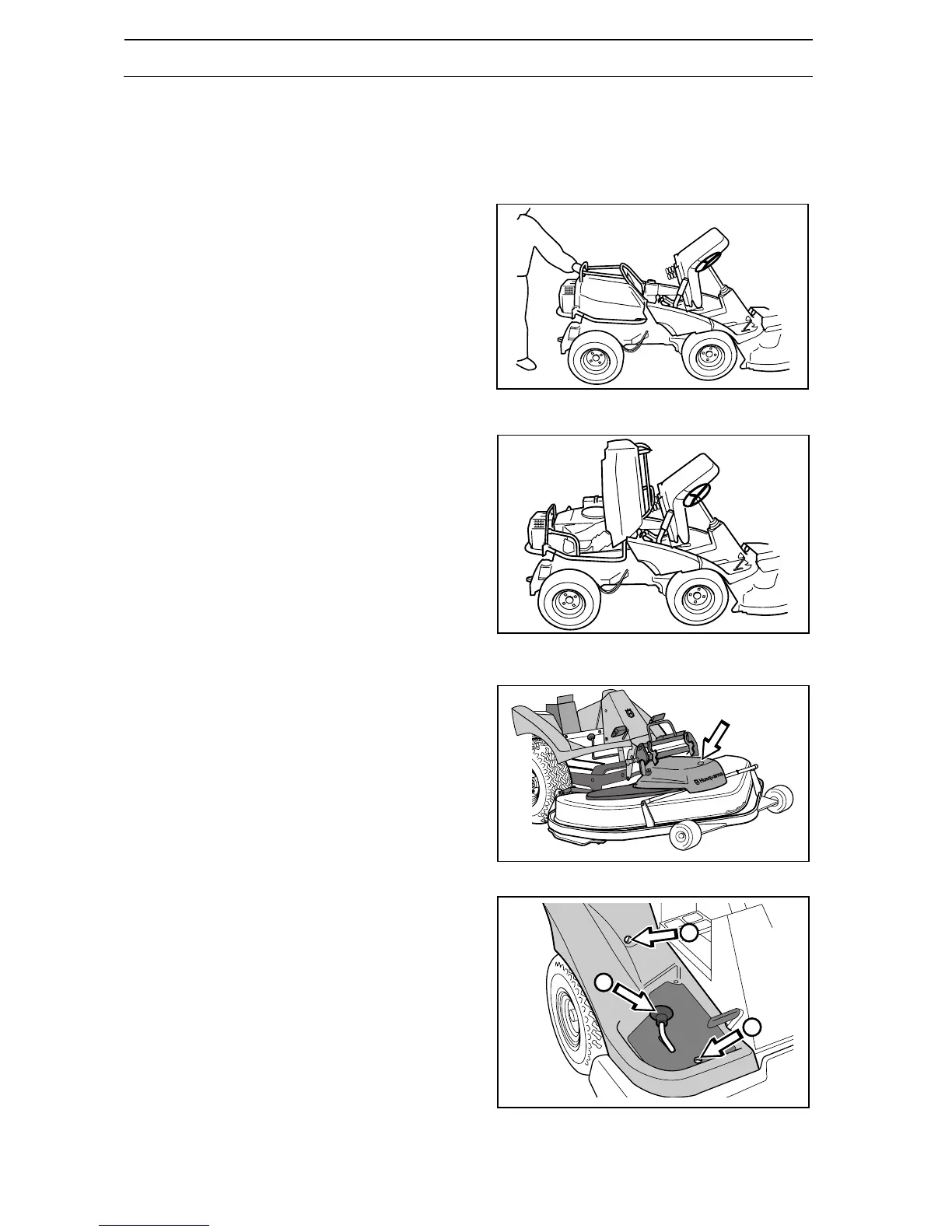

Removing the Rider’s covers
Engine cover
1. Push the seat to its most forward position and then
tip it back.
2. Turn the cover lock on the top of the engine cover
anti-clockwise a 1/4 turn.
3. Fold up the engine cover.
If necessary the engine cover can be lifted off by
removing the hinge pins.
Front cover
Loosen the quick-action catch and lift off the front
cover.
The Right-hand wing cover
Remove the accelerator knob (1), screws (2 and 3),
and remove the wing cover.
8009-509
8009-510
6016-106
6008-203
