English-63
LUBRICATION

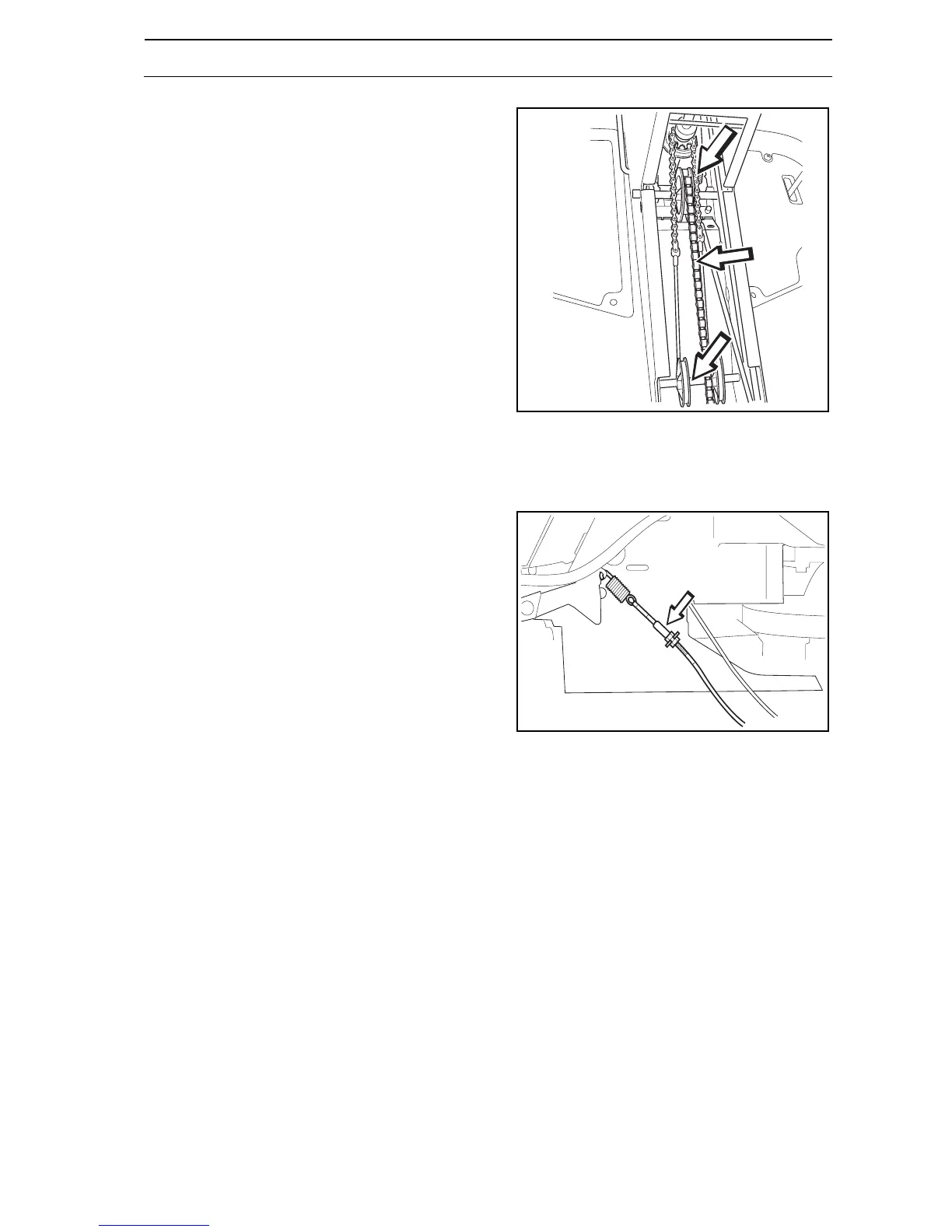

2. Chains in the frame tunnel
Remove the cover from the frame tunnel, see "1. Pedal
mechanism in frame tunnel” on page 62.
Lubricate the chains in the frame tunnel with an oil can
or chain lubricant spray for motorcycles.
Lubricate the steering cable pulley axle with grease.
Move the pulleys to one side and brush grease on the
axle.
Replace the cover on the frame tunnel.
3. Differential lock cable, PF 21
Remove the cable’s rubber casing and lubricate the
cable with an oil can. Depress the pedal a few times,
lubricate again, and replace the rubber casing.
8009-346
6020-023
