MAINTENANCE

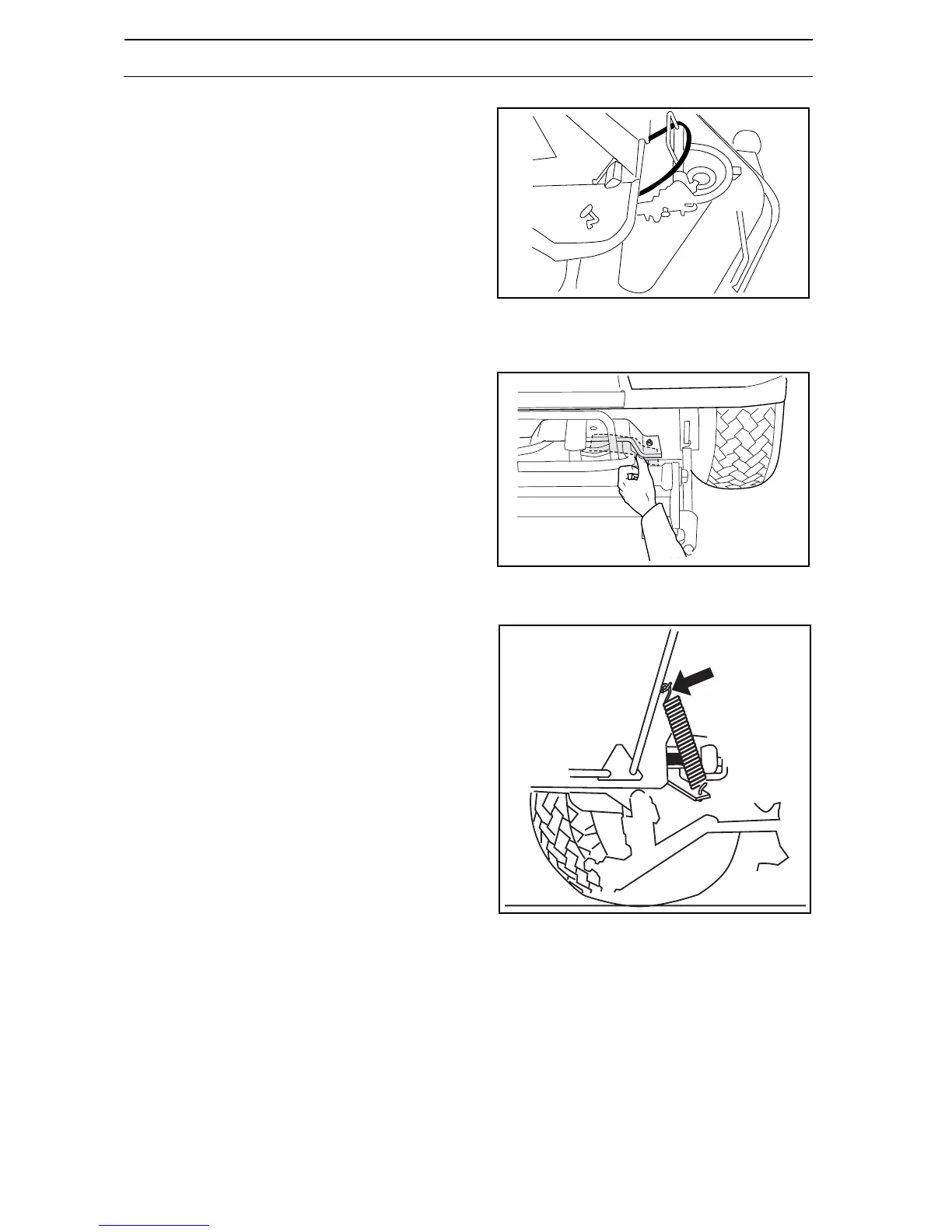

Attaching the belt
1. Place the forward part of the belt in place and
hang the forward part around the handle of the
safety catch.
2. Put the belt on the centre pulley and against the
anti-scalp roller.
3. Press the guide plate down under the anti-scalp
roller and push the belt into place.
4. Hook the spring to the blade brake.
Fitting the belt on the forward pulley is described in
steps 6-7 under “Attaching the cutting unit” on page 47.
