English-38
MAINTENANCE

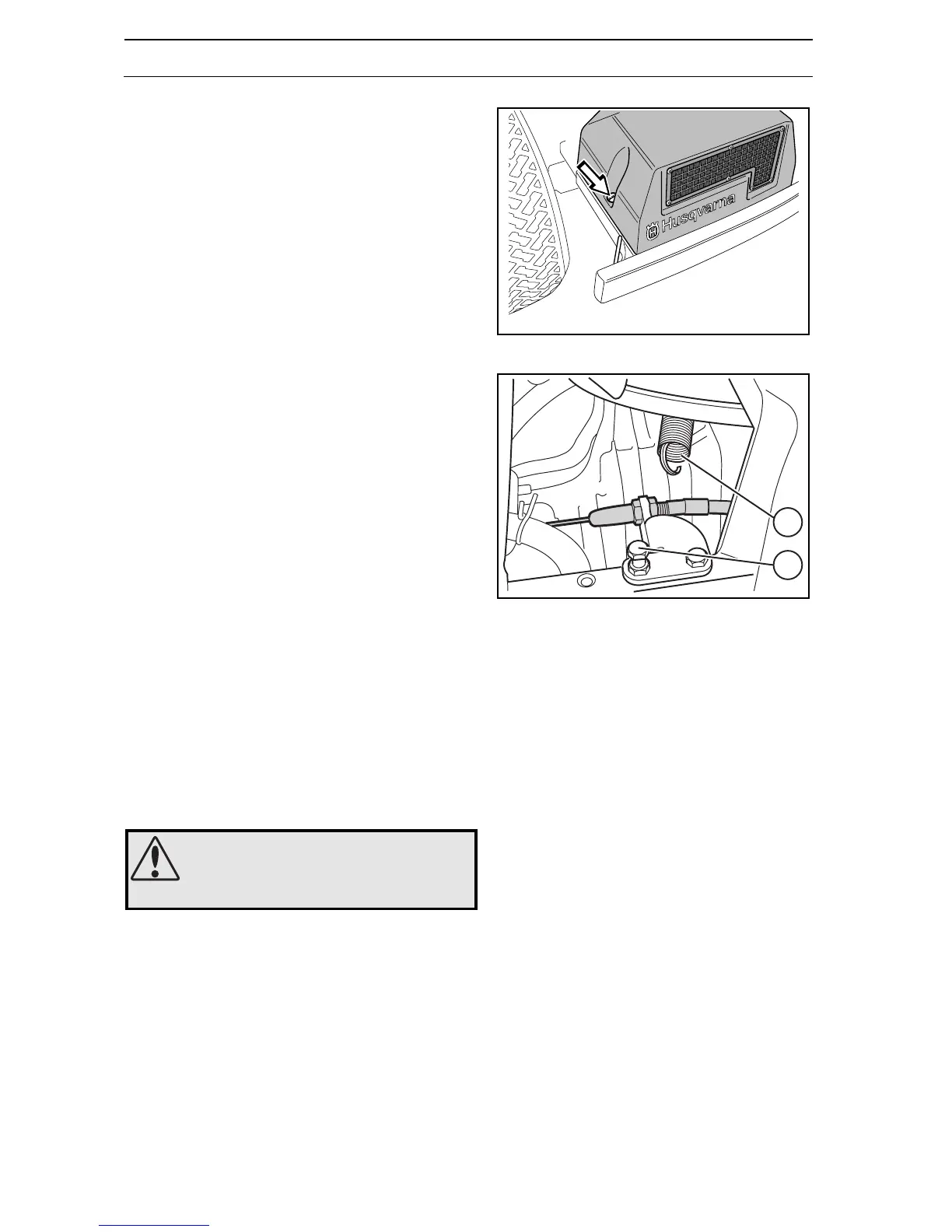

Adjusting the parking brake
The parking brake (on the right side) is adjusted in the
following manner:
1. Remove the transmission cover. Loosen both
screws (one on each side) and lift off the
transmission cover.
2. Unhook the spring (A) from the screw (B).
3. Check that the parking brake is not on.
4. Adjust the play between the casing and the
adjustment screw to 1 mm when you pull the
casing.
Adjust with the nuts on the adjustment screw.
5. Tighten the nuts moderately to avoid damaging the
threads.
6. Replace the spring (A).
7. Test the brake to ensure that it works.
6008-209
6020-005
B
A
WARNING!
A poorly adjusted brake can result in
reduced braking ability.
