Husqvarna ProFlex 21 - Systems, Technical Data, and Service Records

English-75
ELECTRICAL AND HYDRAULIC SYSTEMS
Electrical system

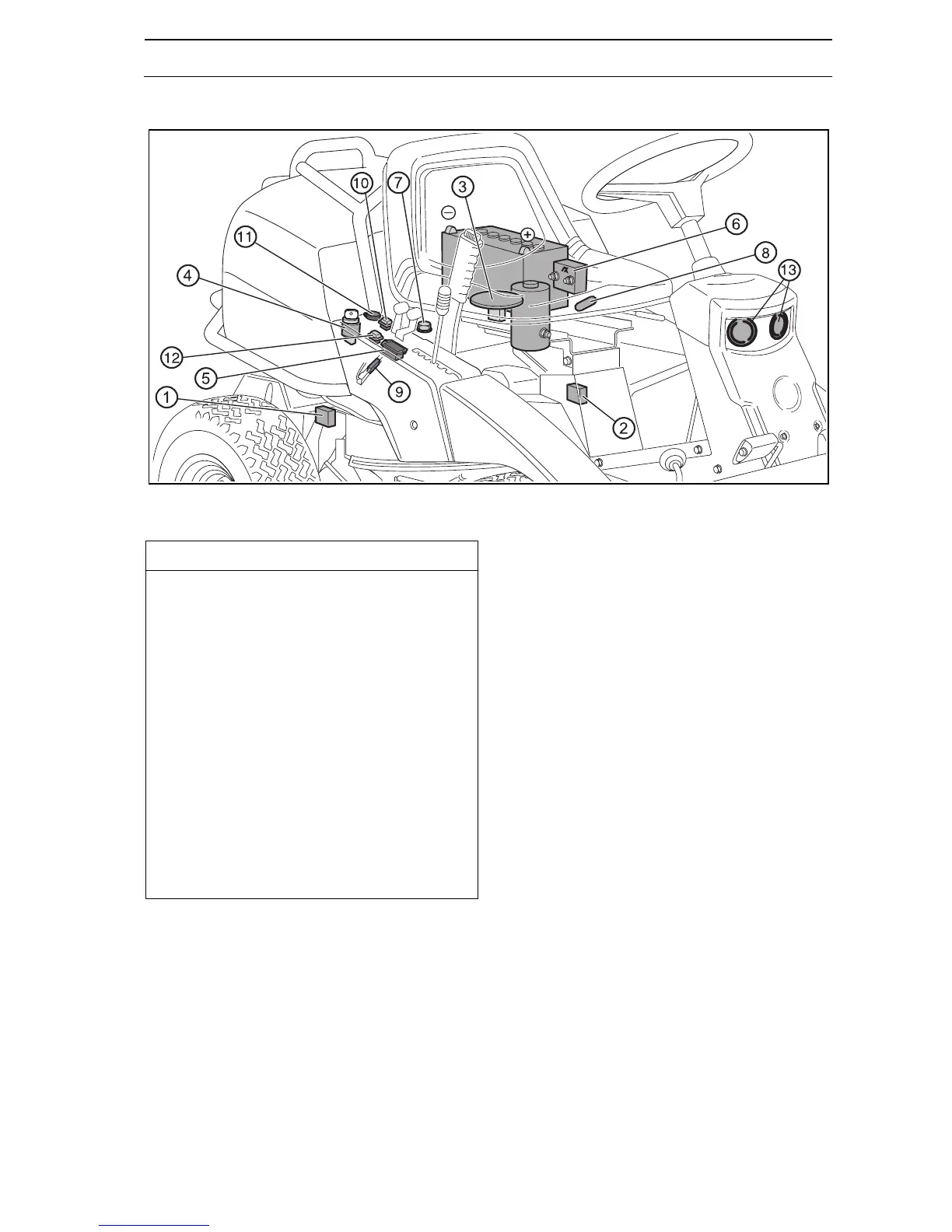

Numbers correspond to:
1. Microswitch, hydrostatic transmission
2. Microswitch, cutting unit
3. Microswitch, seat
4. Ignition key
5. Chronometer
6. Start relay
7. Engine connectors
8. Main fuse 15A
9. Fuse 7,5A
10. Switch for the power outlet
11. Power outlet
12. Switch for the lights
13. Lights
8009-549
Electrical system
