ELECTRICAL AND HYDRAULIC SYSTEMS

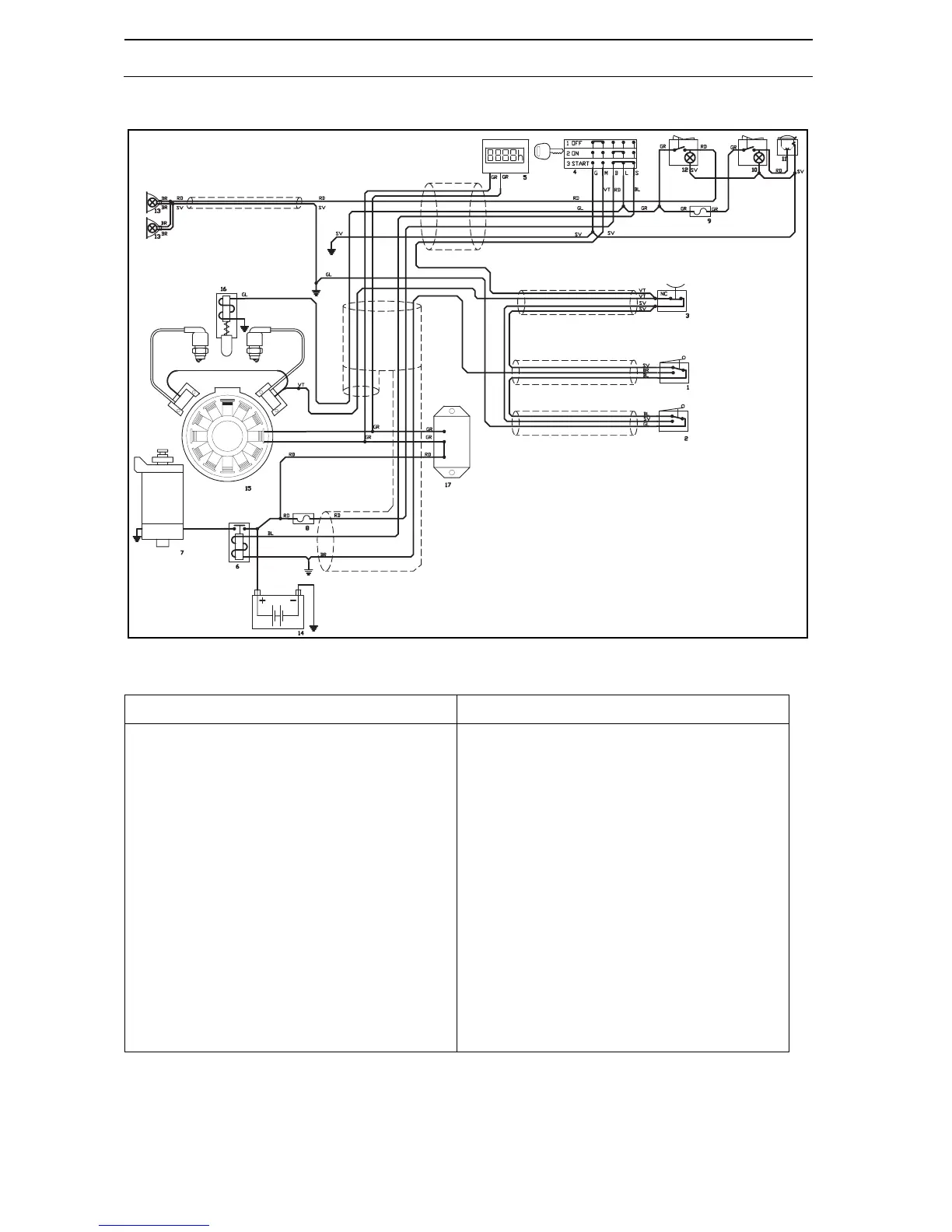

Numbers correspond to: Colour abbreviations:
1. Microswitch, hydrostatic transmission
2. Microswitch, cutting unit
3. Microswitch, seat
4. Ignition key
5. Chronometer
6. Start relay
7. Engine connectors
8. Main fuse 15A
9. Fuse 7,5A
10. Switch for the power outlet
11. Power outlet
12. Switch for the lights
13. Lights
RD = Red
BL = Blue
VT = White
SV = Black
GL = Yellow
GR = Green
BR = Brown
8009-588
Electrical system
