English-55
MAINTENANCE

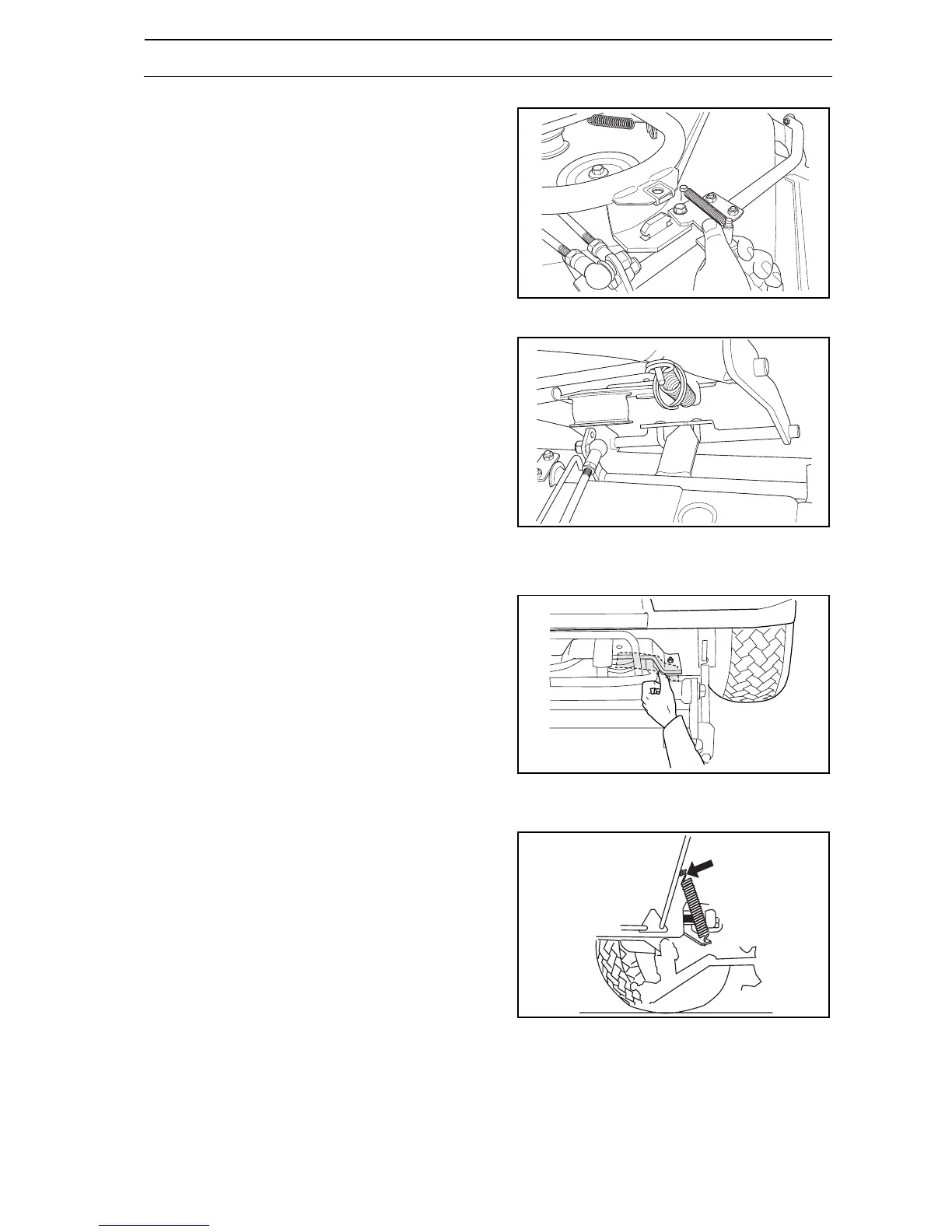

Removing the unit frame
Starting position for removing the cutting unit frame:
• Cutting unit removed.
1. Twist the catch out so that the forward fastener
can be lifted from the cutting unit.
2. Move the unit frame backwards so that the tongue
of the cutting unit releases its grip on the bar of the
unit frame and lift the frame off.
Assemble the parts in the reverse order.
Removing the belt
Starting position for removing the belt:
• No unit is attached to the machine.
• The belt’s forward part is hung around the handle of
the safety catch.
Removal of the forward part of the belt from the
forward pulley is described in steps 5-8 under
“Removing the cutting unit” on page 53.
The entire belt is removed according to the following
only when a snow blade is to be attached to the
machine.
1. Press the guide plate under the anti-scalp roller.
2. Unhook the spring to the blade brake.
3. Take the belt off of the centre pulley.
4. Dismantle the belt.
8009-184
8009-185
8009-343
8009-005
