HUST CNC H6D-B3 MANUAL
26
Output Signal Type
(1) If we use output relay-board, each joint can sustain up to 250V(alternate) and 1A.
(2) If we don’t use output relay-board, each joint can only sustain up to 24V and
100mA.

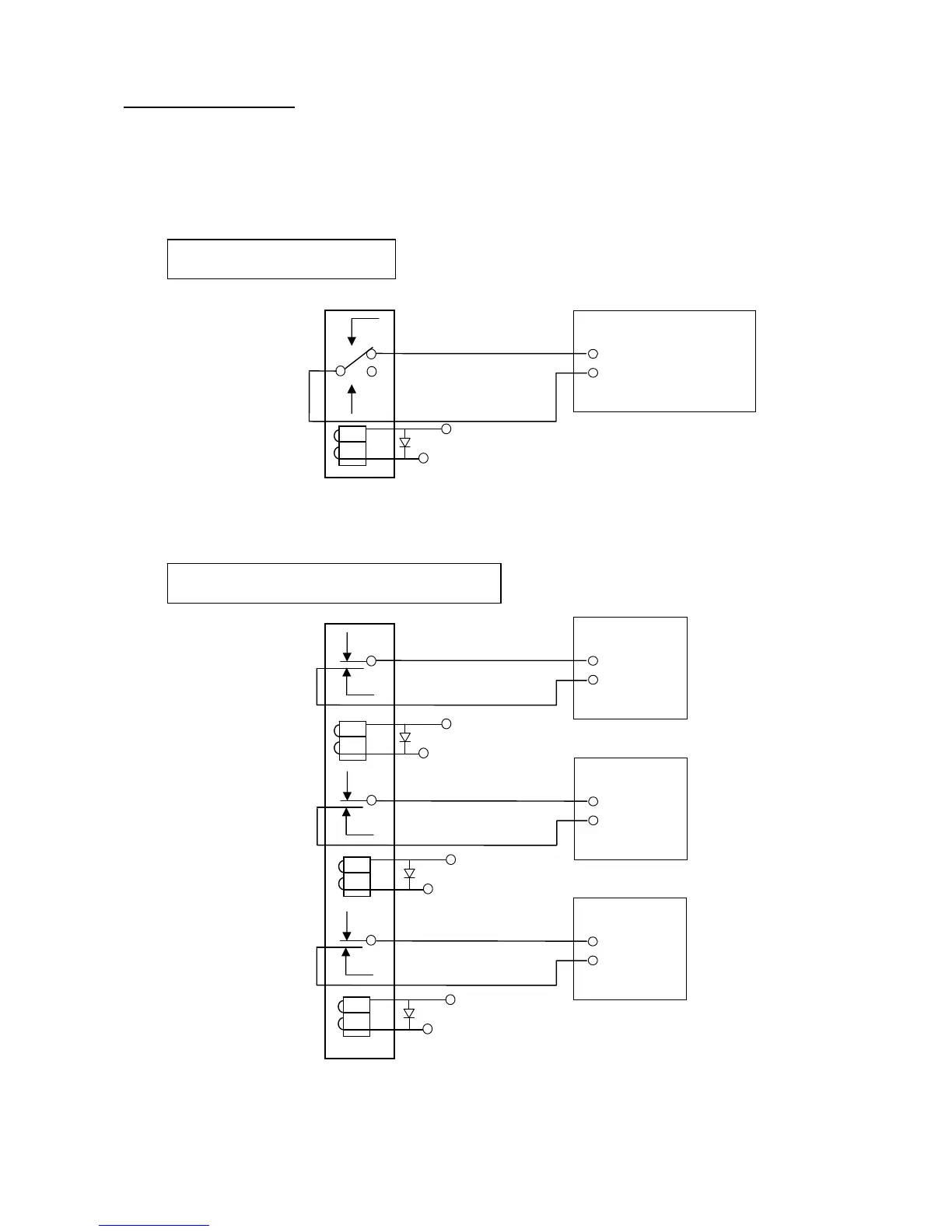

Fig 33
Oil System Interruption
24V
O000 interruption signal
RELAY
Oil-System control cycle
Connect normally
close signal
L-axis、D-axis、R-axis SERVO-ON
RELAY
24V
O001-L-axis SERVO-ON
Servo Driver
Servo-On
Signal
Servo Driver
Servo-On
Signal
24V
O002-D-axis SERVO-ON
Servo Driver
Servo-On
Signal
24V
O003-D-axis SERVO-ON
