Installation and Maintenance Manual
14
seattle, washington

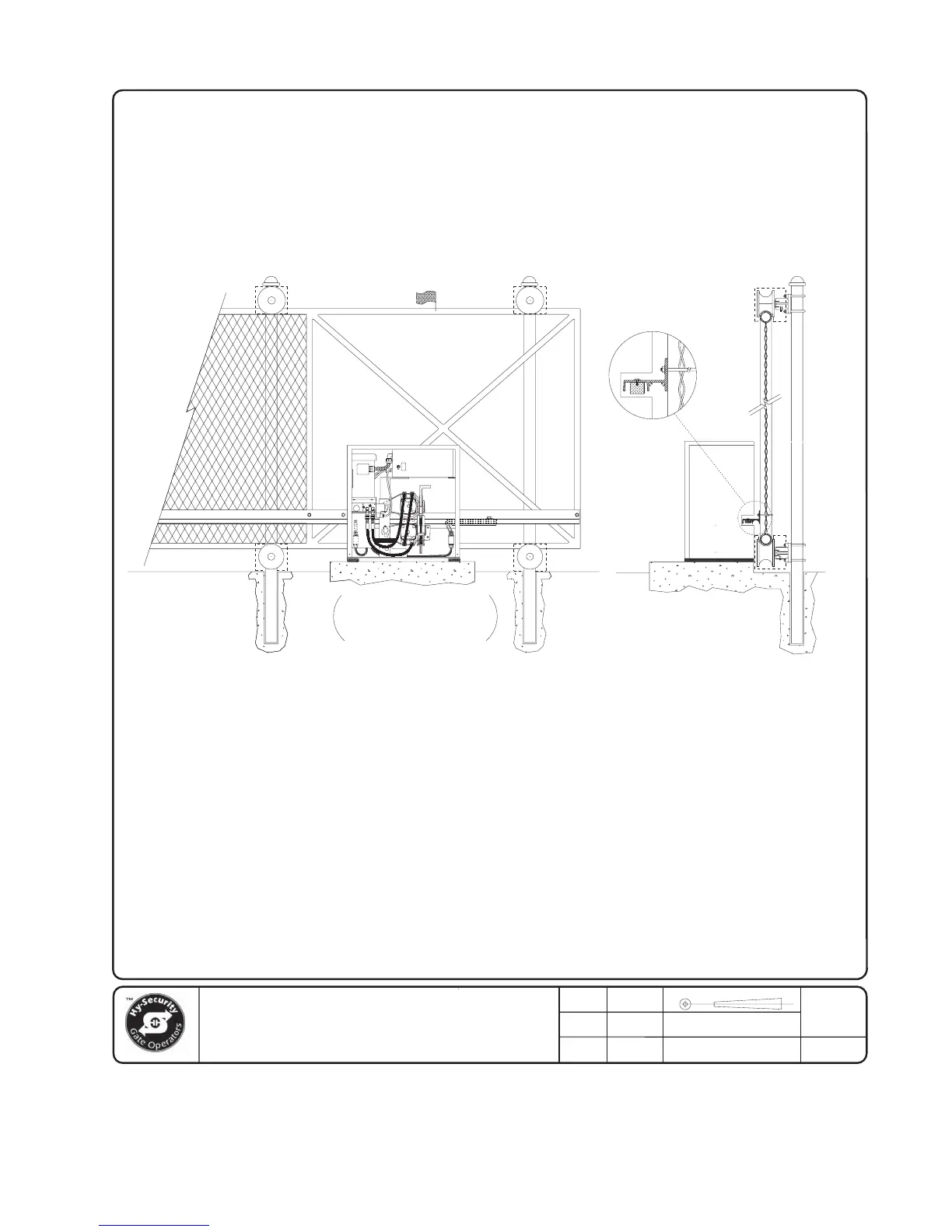

TITLE
Typical Slide Gate Operator with
DRAWING NUMBER:
SHT OF
THIRD ANGLE PROJECTION REVDRAWN
APPROVED
CHECKED
DATE
DATE
DATE
R.H. Cantilever Gate Panel
1 1
S13A
4/20/00
MM/YY/DD
MM/YY/DD
KERI
SHOP
ENGRNG
N/A
--
NOTE: CONSULT FENCE CONTRACTOR
FOR RECOMMENDED CANTILEVER POST
SPACING. 50% OF GATE OPENING
GENERALLY PROVIDES SMOOTH OPERATION.
RIGHT HAND CANTILEVER GATE IS
SHOWN IN THE FULLY CLOSED POSITION.
OPERATOR COVER OMITTED FOR DETAIL.
( DO NOT SCALE )
NOTE: IT MAY BE NECESSARY TO
SHIM DRIVE RAIL IF GATE PANEL
IS "BOWED". RAIL MUST BE INSTALLED
IN A STRAIGHT LINE.
SECTIONELEVATION
NOTE: SEE DWG# S13B
FOR RECOMMENDED SLAB
DIMENSIONS.
NOTE: COVERS MUST BE USED FOR
PROTECTION ON ALL EXPOSED WHEELS
AND/OR HARDWARE. COVERS ARE SHOWN
HERE AS DOTTED LINES.
NOTE: DRIVE RAIL HEIGHT
IS MARKED ON THE SIDE
OF EACH CHASSIS.
PART NUMBER
POWER
OFF
ON
