Installation and Maintenance Manual
64
NINE SLOTS 3/4 X 2 TYP
CHASSIS HEIGHT
= 43.125"
NOTES:
IF GATE PANEL IS BOWED, SHIM RAIL FOR EVEN TRAVEL THROUGH GATE OPERATOR.
DISTANCES FROM GATE OPERATOR TO GATE PANEL AND FROM TOP OF RAIL TO TOP OF
SLAB ARE CRITICAL.
MINIMUM SLAB DIMENSIONS RECOMMENDED ARE 50" WIDE, 20" FROM FRONT TO BACK, AND
20" DEEP. CHECK ALL LOCAL FROST CONDITIONS AND SOIL CHARACTERISTICS FOR EXACT
REQUIREMENTS.
14.5"
8.00"
1.25
10.0" 10.0"
1.25"
6.50"
8.00"
2.00"
43.0"
2.00"
5.00"

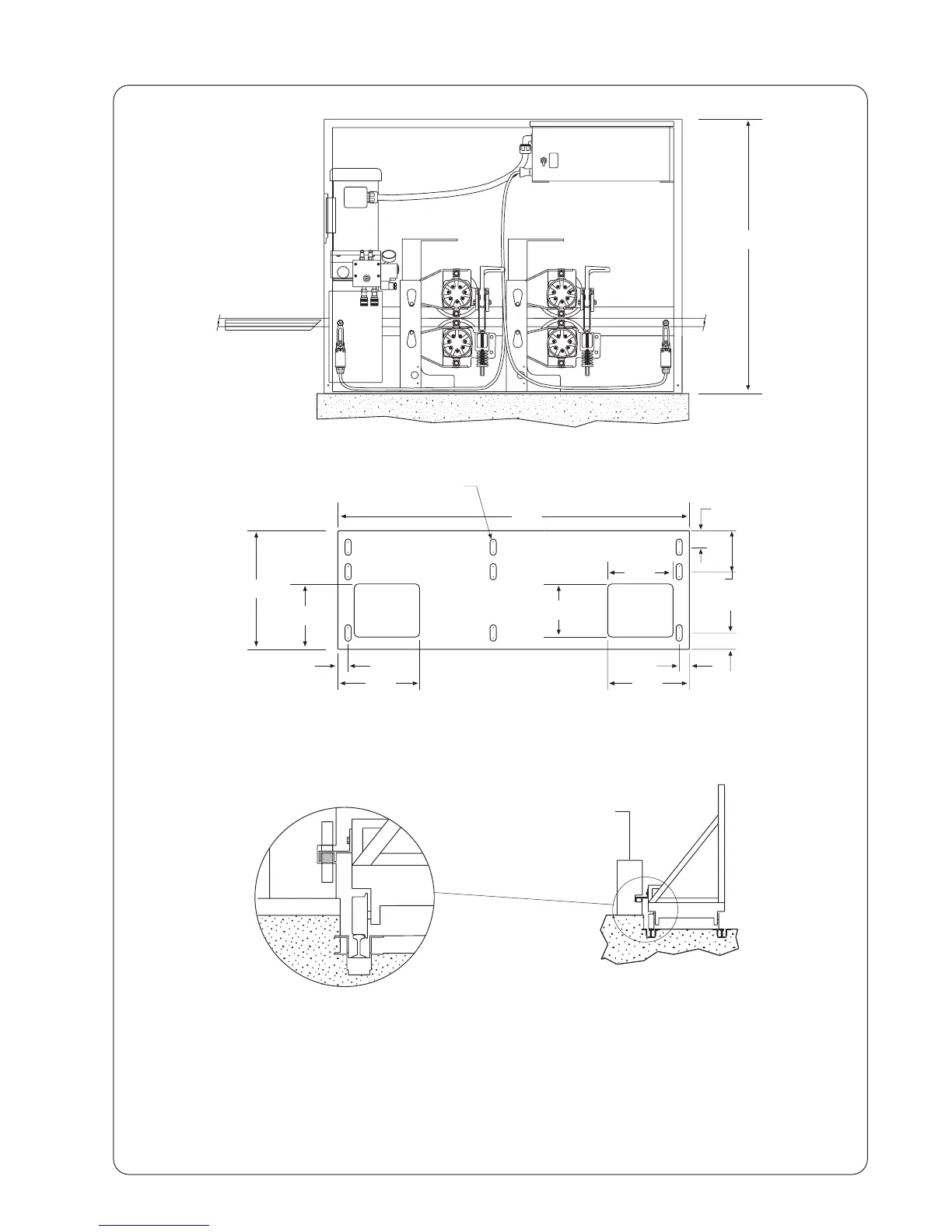

444 OPERATOR COMPONENTS AND FOOTPRINT XS48-9
43.125"
SIX ANCHOR BOLTS 1/2" x 6" ARE REQUIRED TO PROPERLY ANCHOR THE CHASSIS
BASE AS SHOWN ABOVE. CUTOUTS SHOWN ARE FOR ELECTRICAL FEED.
OPERATOR FOOTPRINT
SECTION THRU GATE
OFF
POWER
ON
