Installation and Maintenance Manual
58

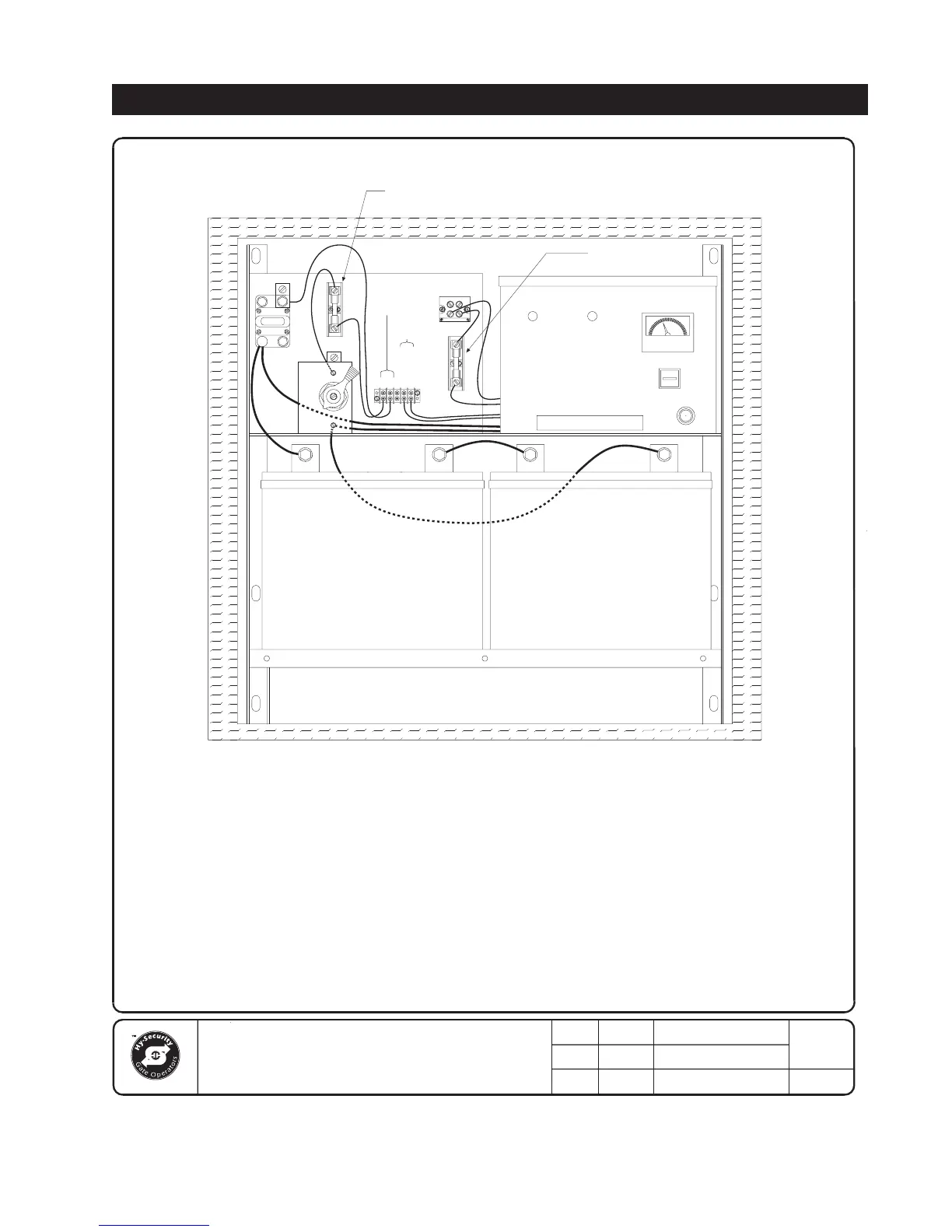

Battery Connection Diagram
seattle, washington
TITLE
SHT OF
REFERENCE RELEASE NOTICE
DRAWING NUMBER:
DATEAPPROVED
DATE
DATE
CHECKED
DRAWN
REV
ON
OFF
DC AMPERES
CHARGER
COMPLETE
IN PROGRESS
ON
OFF
12 VOLT
BATTERY
12 VOLT
BATTERY
POWER
BATTERY CHARGER
10
FUSE
A.C.POWER
CONNECT SIX WIRES TO GATE OPERATOR AS SHOWN.
FOUR 14GA. WIRES TO CONTROL CIRCUIT
CONNECT FROM LUG
TERMINALS TO DC MOTOR:
TWO 6 GA. MINIMUM FOR 222 DS OR 222 DE
or
TWO 2 GA. MINIMUM FOR 222 DX
INSTALL BATTERIES AS SHOWN, OBSERVING POLARITY.
ALWAYS OBSERVE POLARITY CAREFULLY.
ALWAYS CONNECT RED WIRES TO (+) AND BLACK
WIRES TO (-) EXCEPT FOR WIRES CONNECTING THE
BATTERIES.
24 VOLT FUSE (5 AMP)
LINE VOLTAGE FUSE
(15 AMP)
24V-100 A.H. BATTERY POWER
A
1 1
28JUN01CMK
N/A
E125
SUPPLY FOR DC OPERATORS
(-)
(+)
(-)
(+) LUG
COM
AC CHRG LOSS
(+)
(-) (+) (+)(-)
(-) LUG
TO OPERATOR
POWER SWITCH
TO SMART TOUCH
CONTROLLER
PART NUMBER
