Hy-Security 222 CF - Page 26

Installation and Maintenance Manual
20

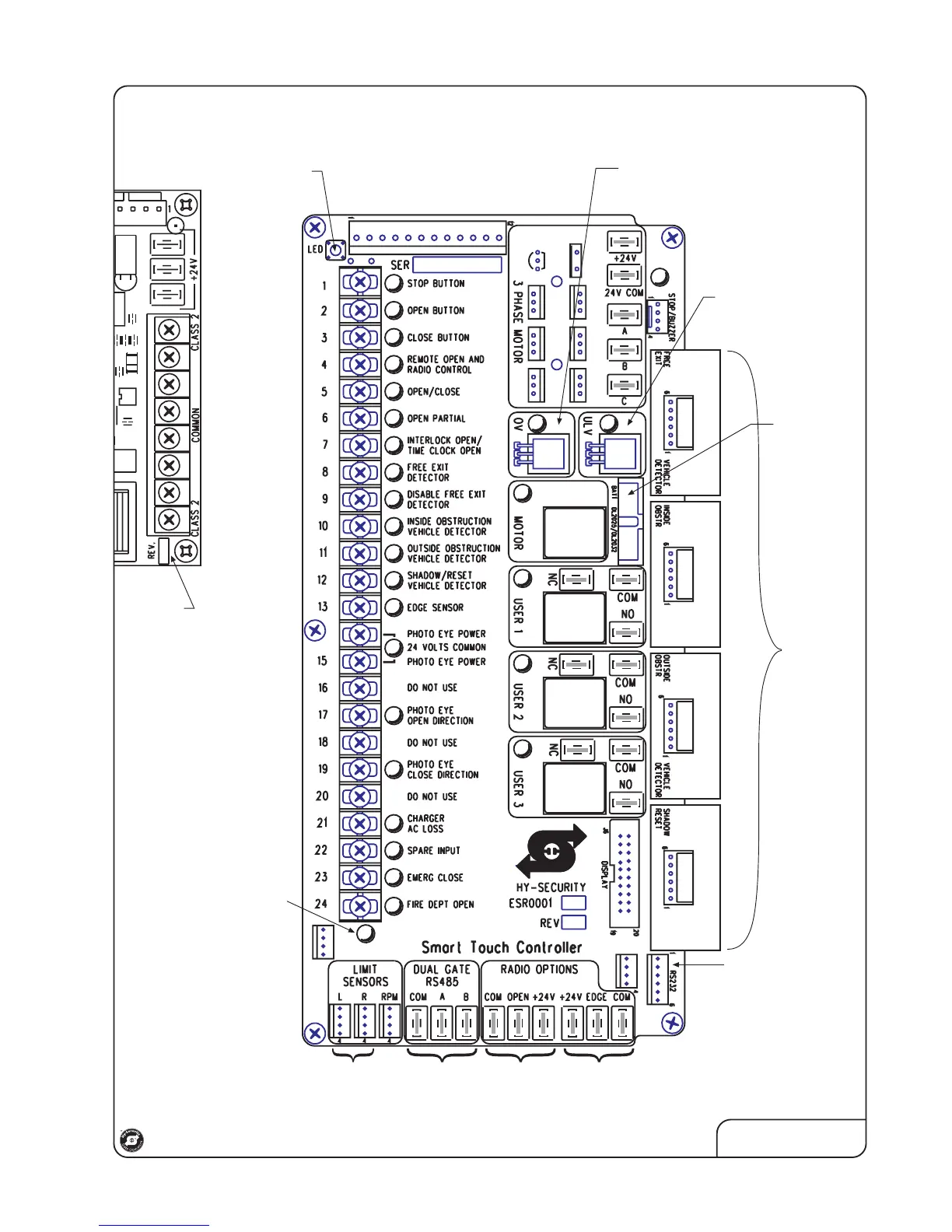

S ICB01Smart Touch Controller - Integrated Circuit Board
COMMON
BUSS
(-)
ACCESSORY
POWER
(+)
POWER
SUPPLY
BOARD
GND
+24 INPUT
POWER STATUS
MOTOR OVERLOAD
GND
INHERENT SENSER
+24V
UNLOAD VALVE
+24V
OPEN VALVE
RUN N.O.
RUN COM
ACCESSORY DETECTOR ACCESSORY DETECTOR ACCESSORY DETECTOR ACCESSORY DETECTOR
USER RELAY
PROGRAMMABLE
RELAY
RUN
PROGRAMMABLE
USER RELAY
PROGRAMMABLE
USER RELAY
15 AMP
15 AMP
15 AMP
Hydraulic Directional
Valve - activates
to OPEN.
Hydraulic Unloading
or Quick Stop Valve
- activates when
starting or stopping.
Clock
Battery
Optional
Hy-Security
HY-5A
Vehicle
Detector
Modules
External
Communication
Port
Processor
heartbeat
LED. Blinks at
a regular beat
when normal
Press to
disclose
active LEDs
Limit
Switch
Inputs
Master
Slave
Connection
Open
Radio
Gate Edge
Radio
8
