Hy-Security 222 CF - Page 77

Installation and Maintenance Manual
71
ON
OFF
DC AMPERES
CHARGER
COMPLETE
IN PROGRESS
ON
OFF
POWER
2-12
2-10
15A FUSE
2-13
BATTERY CHARGER
2-3
DISCONNECT SWITCH
2-4
2-9
TERMINAL STRIP
2-11
5A FUSE
2-5
2 BATTERY
ENCLOSURE
2-6
4 BATTERY
ENCLOSURE
2-8
4 BATTERY SYSTEM
6 VOLT BATTERIES
2-7
2 BATTERY SYSTEM
12 VOLT BATTERIES
2-14
VENT
2-15
OPTIONAL
THERMOSTAT
2-16
OPTIONAL
FOIL HEATER
item number qty
2-0 ESWCB 030 060 1 ea.
2-1 ESWCB 030 120 1 ea.
2-2 ESWCB 030 150 1 ea.
2-3 ESWDI 067 DCEX 1 ea.
2-4 ECOTS 1102 1 ea.
2-5 EENEN HO1 3030 1 ea.
2-6 EENEN HO1 4230 1 ea.
2-7 EDCBY 12B 090 2 ea.
2-8 EDCBY 06V 170 4 ea.
2-9 ECOTS 005 1 ea.
2-10 ESWFU 010 15 1 ea.
2-11 ESWFU 010 05 1 ea.
2-12 ESWFU 001 BLK 1 ea.
2-13 EDCBC 024 025 1 ea.
2-14 EDCFV 001 1 ea.
2-15 EACTH B10 021 1 ea.
2-16 EACHE 120 65W 2 ea.
2-0 222 DS
2-1 222 DX
2-2 444 DX
CIRCUIT BREAKER
COMPONENTS BATTERY PACK FOR DC OPERATORS

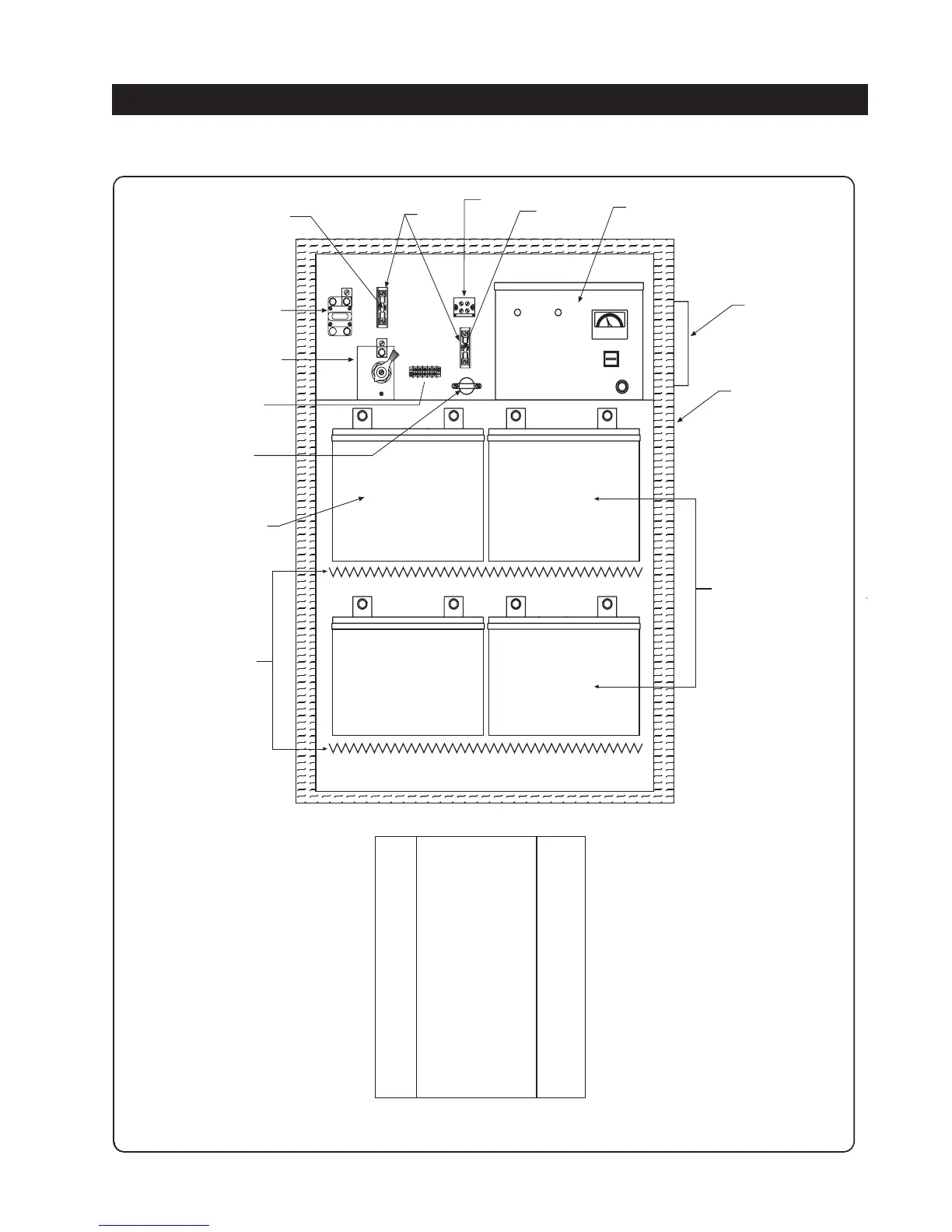

Parts Breakout - DC Power Supply
