Use and maintenance manual S20DSP

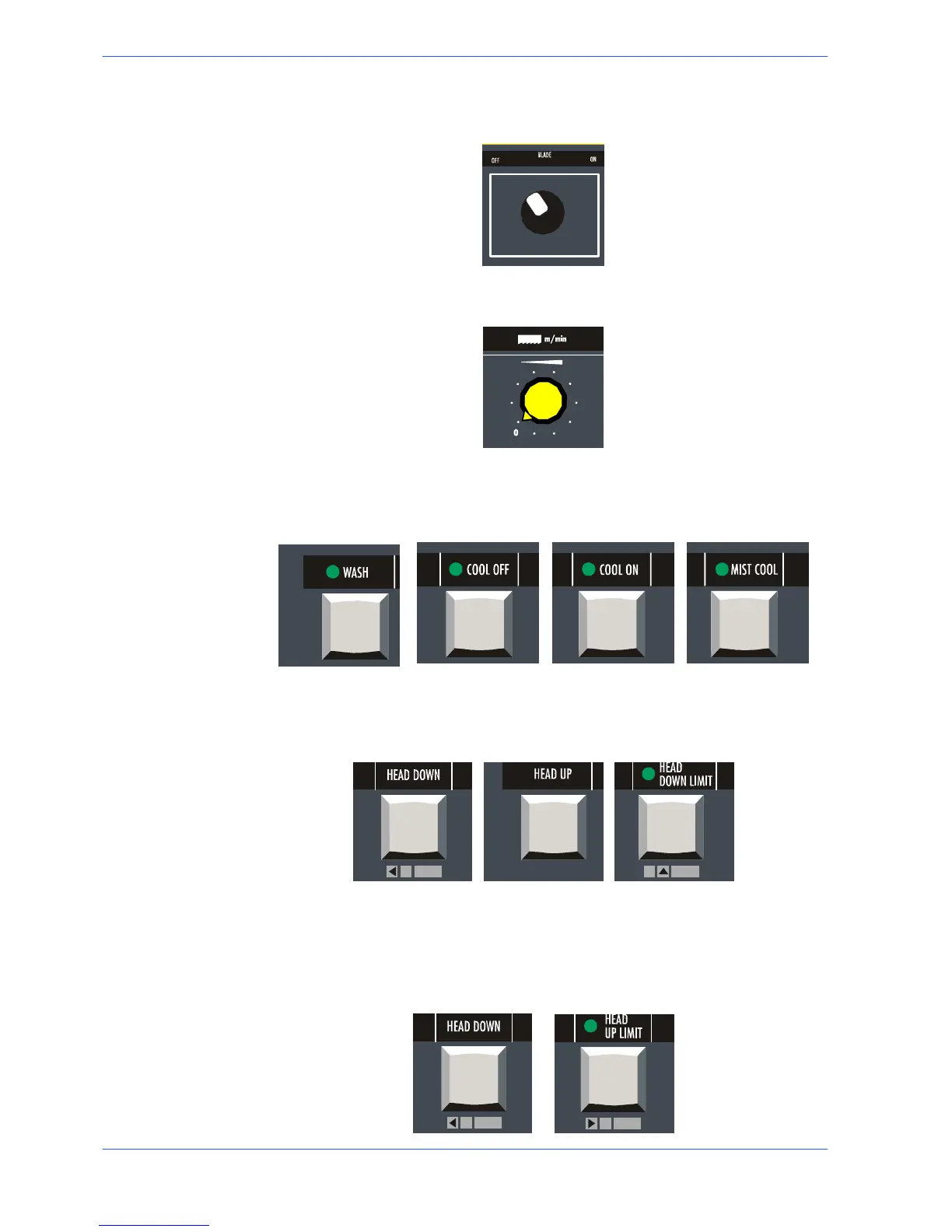

" Select the required cutting speed in accordance with the type of material
being cut (tortoise = low speed; hare = high speed).
If the machine is equipped with the optional inverter, set the speed for the type
of material being cut using the potentiometer on the control console.
" Program the lubricant/coolant spray using the corresponding button on the
control console and adjust the delivery rate using the cocks on the blade guide
heads. It is also possible to set the lubricant/coolant delivery mode.
OPTIONAL
" Position the cutting head about 10 mm from the workpiece using the up (Y+)
a n d d o w n ( Y --- ) a r r o w k e y s .
" Press the FCTI (Head Upstroke Limit) memory button to save the head start
position at the beginning of the cycle.
" L o w e r t h e h e a d t o t h e e n d --- o f --- c u t p o s i t i o n b y p r e s s i n g t h e d o w n ( Y --- )
arrow key.
" Press the FCTA (Head Downstroke Limit) memory key to determine the fi-
nal position of the head at the end of the cut. As soon as you have pressed the
FCTA memory key the vice will close and the head will return up to the FCTI
position ready for cycle start.
N.B.
