ENS 3000 Page15
Status 21.08.2015 HYDAC ELECTRONIC GMBH Part No. 669850

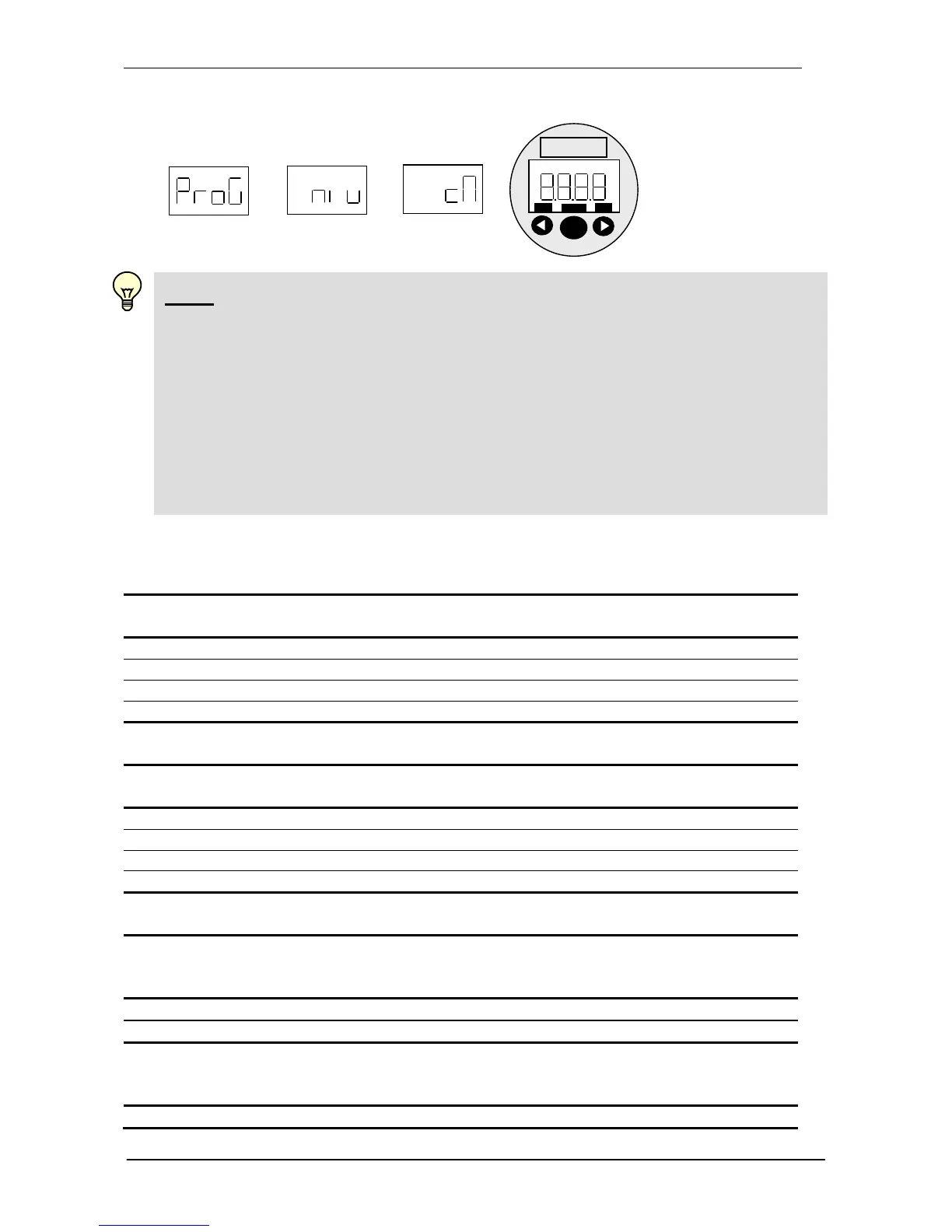

For the version with 4 switching points, the following menu appears:
NOTE:
• If "LOC" appears in the display when attempting to change a setting,
programming is disabled.
Action: Set the programming enable(s) to "free". (see section 10 Programming
Enables)
• If the ; key or key is held down while changing a setting, the value will
advance automatically.
• Whenever any settings have been altered, "PROG" appears briefly in the
display when the display switches over. The new setting is then saved in the
unit.
8.4 SETTING RANGES FOR THE SWITCHING OUTPUTS
(switching point minus switching hysteresis = switch-back point)
Probe length
in inch
Measuring range
in inch
Switching point
in inch *
Switching hysteresis
in inch *
9.80 6.70 0.10 .. 6.70 0.05 .. 6.60
16.20 11.40 0.20 .. 11.40 0.05 .. 11.25
20.50 15.35 0.25 .. 15.35 0.05 .. 15.15
28.70 23.20 0.35 .. 23.20 0.15 .. 22.85
The increment for all units is 0.05 inch.
Probe length
in cm
Measuring range
in cm
Switching point
in cm *
Switching hysteresis
in cm *
25.0 17.0 0.3 .. 17.0 0.1 .. 16.8
41.0 29.0 0.5 .. 29.0 0.2 .. 28.7
52.0 39.0 0.6 .. 39.0 0.2 .. 38.6
73.0 59.0 0.9 .. 59.0 0.3 .. 58.4
The increment for all units is 0.1 cm.
Switching point
in °F *
Switching
hysteresis
in °F *
Increment
in °F
-9 .. 212 2 .. 222 1
Switching point
in °C *
Switching
hysteresis
in °C *
Increment
in °C *
-23.0 .. 100.0 1 .. 123.5 0.5
* All ranges given in the table can be adjusted by the increments shown and apply when the offset is zero.
