HYDACELECTRONIC ENS 3000 - 17 Dimensions

ENS 3000 Page33
Status 21.08.2015 HYDAC ELECTRONIC GMBH Part No. 669850

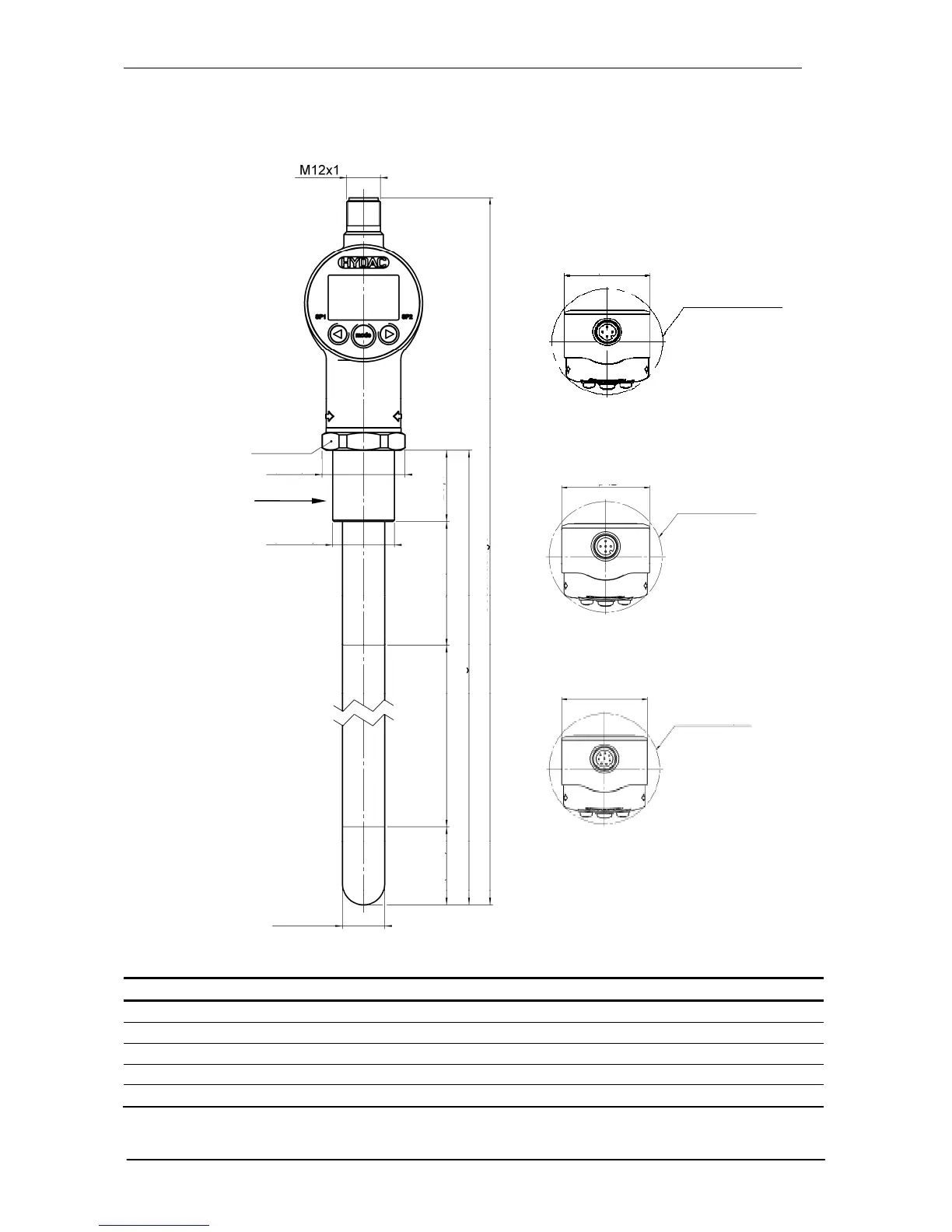

17 Dimensions
4 pole
5 pole
8 pole
Code (inch) (inch) (inch) (inch)
Inactive zone (lower end) approx. 0.87 approx. 1.10 approx. 1.34 approx. 1.95
Measuring range 6.70 11.40 15.35 23.20
Probe length 9.80 16.20 20.50 28.70
Total length 13.40 19.70 24.00 32.30
Inactive zone (upper end) approx. 1.30 approx. 2.65 approx. 2.80 approx. 2.55
zone for clamping
resp.
mounting
of ENS 3000
i.e. by means of
mechanical
accessories ZBM 19
or ZBM 20
cavity Ø 2.13
cavity Ø 2.13
cavity Ø 2.13
Total length
Probe length
Measuring range
0.99
Inactive zone (upper end)
hex.27
∅1.16
∅0.87
± 0.008
∅0.60
± 0.016
Inactive zone (lower end)
Ø 1.65
Ø 1.65
Ø 1.65
