ENS 3000 Page32
Status 21.08.2015 HYDAC ELECTRONIC GMBH Part No. 669850

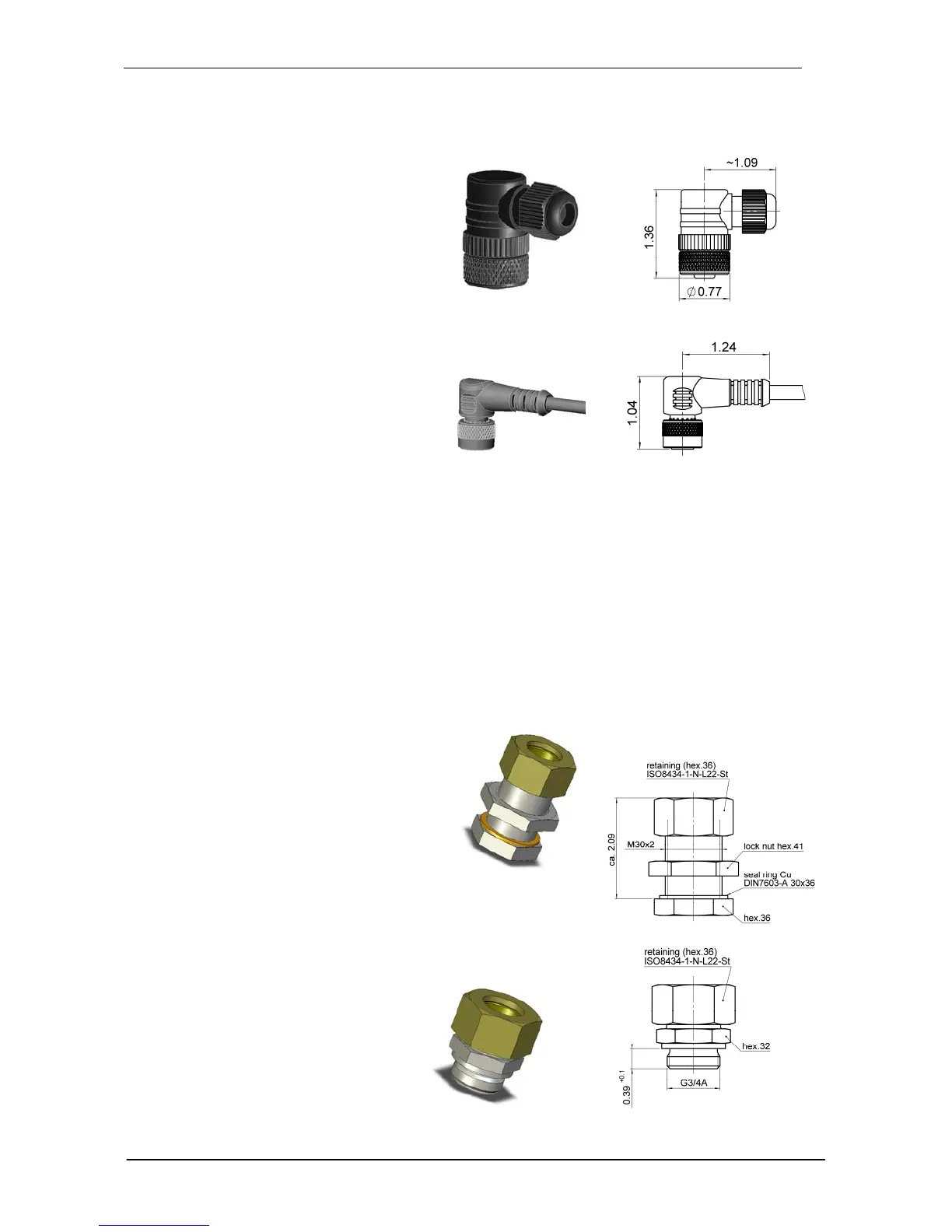

16.1.3 For use with ouput options "8"
ZBE 0P (8 pole)
Female connector M12x1, right-
angle
Part No.: 6055444
ZBE 0P-02 (8 pole)
Female connector M12x1, right-
angle with 2m (78.7 inch) cable,
Part No.: 6052697
ZBE 0P-05 (8 pole),
Female connector M12x1, right-
angle with 5m (197 inch) cable
Part No.: 6052698
Colour code: Pin 1: white
Pin 2: brown
Pin 3: green
Pin 4: yellow
Pin 5: grey
Pin 6: pink
Pin 7: blue
Pin 8: red
16.2 FOR MECHANICAL CONNECTION
ZBM 19
(permitted use with probe
lengths13.20; 20.50; 28.70 inch)
Straight bulkhead fitting
Part No.: 908738
ZBM 20
(permitted use with probe
lengths 9.80; 13.20; 20.50; 28.70
inch)
Straight connecting piece
Part No.: 908739
