ENS 3000 Page18
Status 21.08.2015 HYDAC ELECTRONIC GMBH Part No. 669850

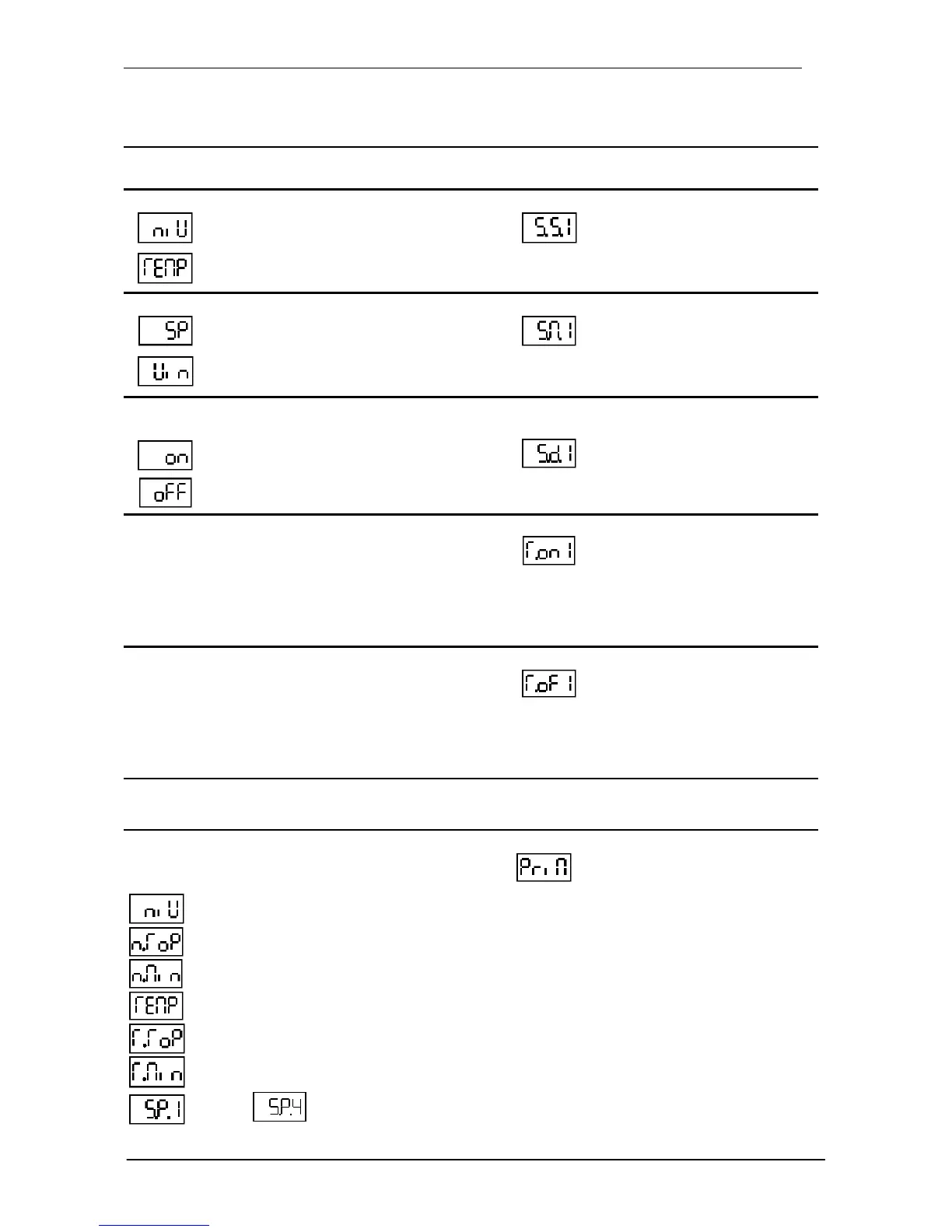

9.2 SUMMARY OF THE BASIC SETTINGS
Setting Displa
y
Setting range Default
setting
Switching output 1 assignment (S.S.1)
Switching output 1 to switch at the
pre-set fluid level
niv / TEMP niv
Switching output 1 to switch at the
pre-set temperature
Switching mode, switching output 1 (S.m.1)
Switching output 1 is operating in
switching point hysteresis mode
SP / Win SP
Switching output 1 is operating in
window mode
Switching direction, switching output 1
(S.d.1)
Normally open
ON / OFF ON
Normally closed
Switch-on delay, switching output 1 (T
ON
1)
Time in seconds which must elapse once
the particular switch point has been
reached or exceeded before switching will
occur.
Increment: 1s
0 .. 9999s 1
Switch-off delay, switching output 1 (T
OFF
1)
Time, in seconds, which must elapse once
the value has dropped below the switch
back point before a switching operation
will occur.
Increment: 1s
0 .. 9999s 1
Settings for switching output 2, 3 or 4 are carried
out as discribed above
Primary display (Primary)
Value to be continually displayed:
Anzeige stehen soll:
niv/
n.Top/
n.Min/
Temp/
T.Top/
T.Min/
S.P.1/
S.P.2/
S.P.3/
S.P.4/
OFF
niv
Actual fluid level
Peak fluid level
Lowest fluid level
Actual temperature
Peak temperature
Lowest temperature
up
to
Switch point 1 to 4
