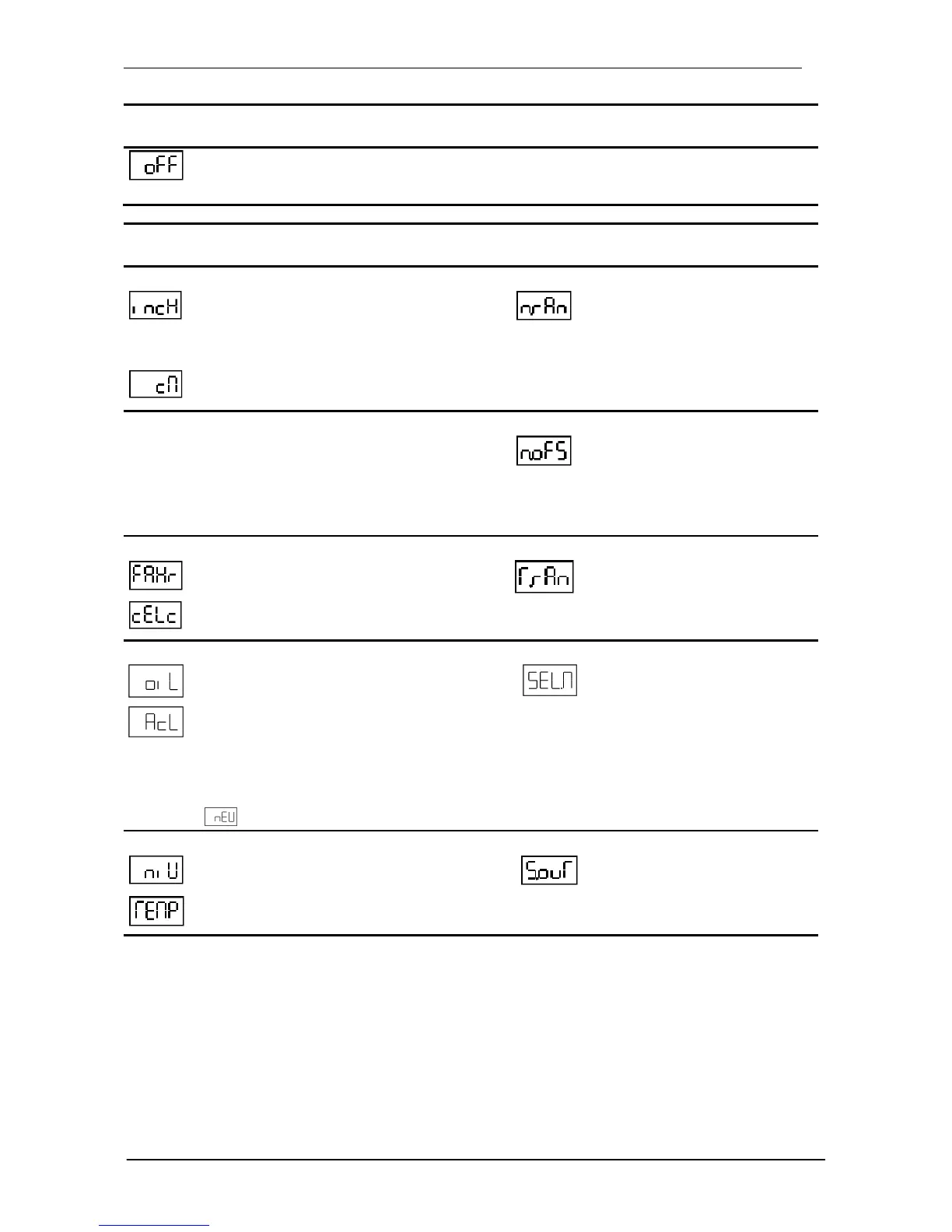

ENS 3000 Page19
Status 21.08.2015 HYDAC ELECTRONIC GMBH Part No. 669850
Setting Displa
y
Setting range Default
setting
Display off
(For function, see Section 7. "Digital display")
Setting Displa
y
Setting range Default
setting
Setting the indication range of the fluid level (FLUID LEVEL RANGE)
The fluid level is indicated in
inch
inch/
cm
inch
(dependi
ng on the
model)
The fluid level is indicated
in cm
Setting the level offset (NIVEAU OFFSET) while the fluid level is displayed
The distance between the base of the tank
and the start of the active zone of the fluid
level sensor is regarded as the "offset".
Inputting this distance will generate a
reference to actual fluid level.
0
Setting the indication range of the temperature (TEMPERATURE RANGE)
The temperature is shown in °F.
°F angezeigt
Fahr/ celc Fahr
(dependi
ng on
version)
The temperature is shown
in °C.
Setting the type of fluid
Fluid level sensor calibrated to oil
parameters
oil/ AcL oil
Fluid level sensor calibrated to
cooling lubricants parameters
(Aqueous cooling Lubricants =
AcL)
When the new selection is saved, the change is active. On the version with 4 SP the
message is also displayed.
Assigning the analogue output (Select Output)*
The analogue output is
assigned to the fluid level
niv/ TEMP niv
Assigns the analogue output to
temperature.
