4. System Setup
Example (4) :
If interface select:
Chuck open M code (optional)
M code (feed command) M-Fin (optional)
Part off with turret :
Main program:
Chuck open
M code (feed command)
Chuck close
Cutting
/ M98 Pxx (go to sub program)
M99 (Return)
Pxx (Sub program)
Chuck open
M code (optional)
W – 100
(Turret comes to loading position)
M code (optional)
Chuck close
Part off
M99 (go to main program)

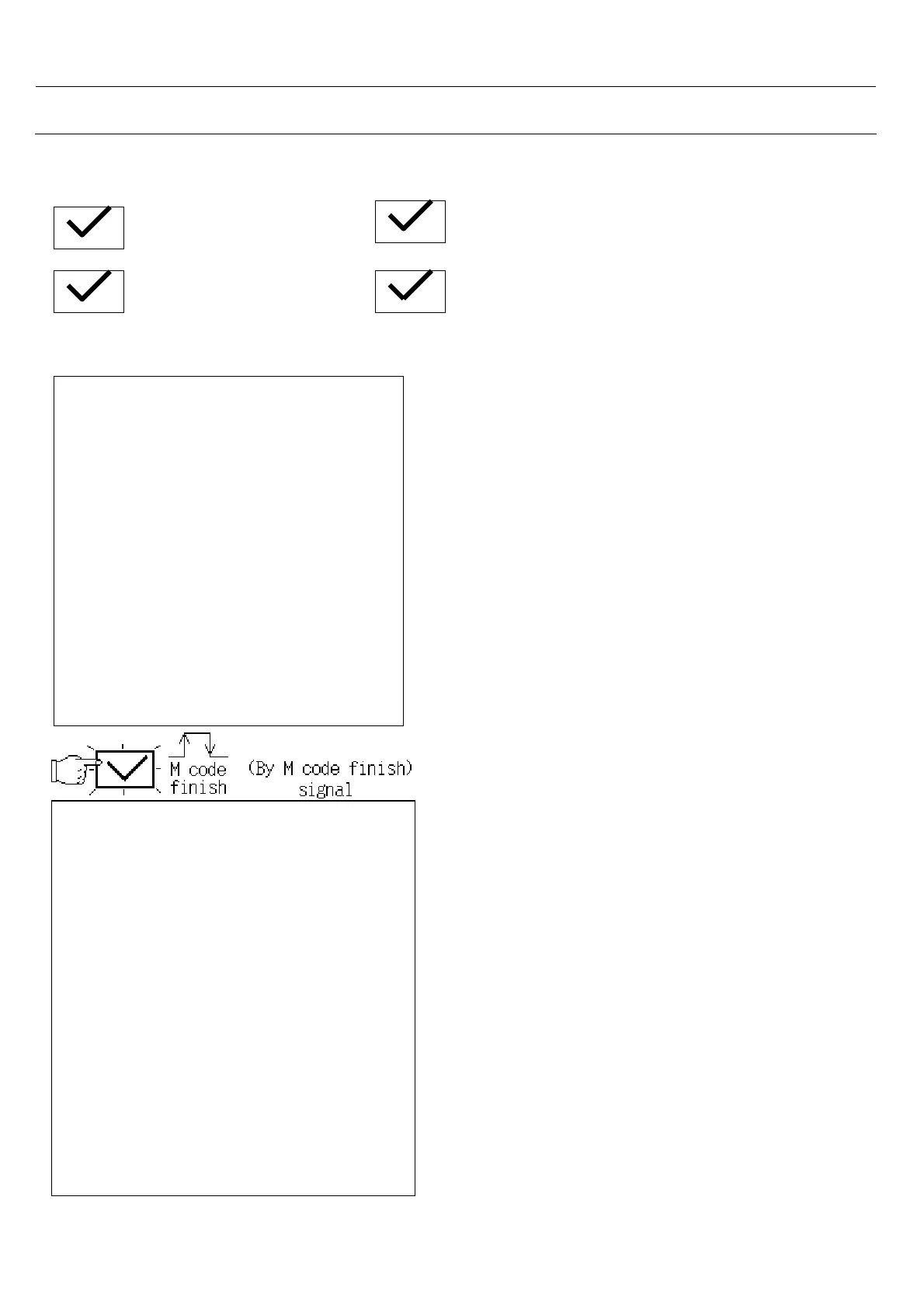

If CNC interface provided with
(1) Chuck open signal
(2 )M code signal
(3) M code (optional) signal
(4) M-Fin (optional) signal
Normally “By M code finish signal “will be used.
