7. Alarm List
7. Alarm List
Alarm
No.

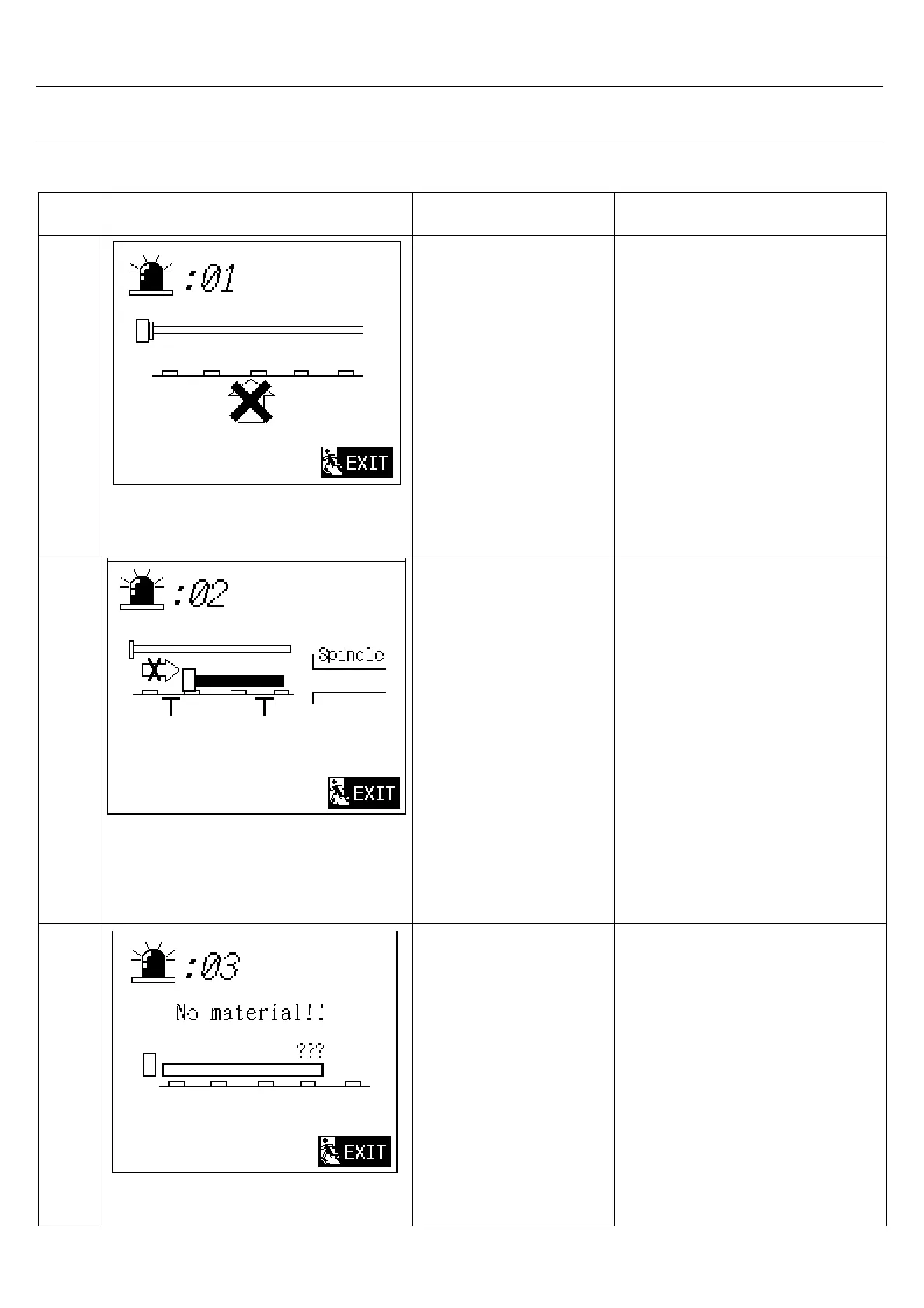

Alarm Picture Cause Action
1
You can’t move the loading
mechanism up.
Loading mechanism
has a problem.
Check loading motor and
Ballscrew. Because there is an
overload.
See 11-1 Mechanism Drawing
:
(1) Item 5 :Gear box and
Loading motor
(2) Item 2 ,3 : Ballscrew
(Drawing NO : T24403-000X)
2
You can’t move the flag forward.
Pushing mechanism
has a problem.
Check gears and belt. Because
there is an overload.
See 11-1 Mechanism Drawing
:
(1) Item2 : Servo motor
driving gear
(2) Item3 : Servo motor driven
gear
(Drawing NO : T04201-000X)
(3) Item12 : Belt T5 20mm
Drawing NO :
1.5M :T24203-001X
1.2M :T24203-002X
3
No material.
Rack is empty. Put new bars on the rack.
