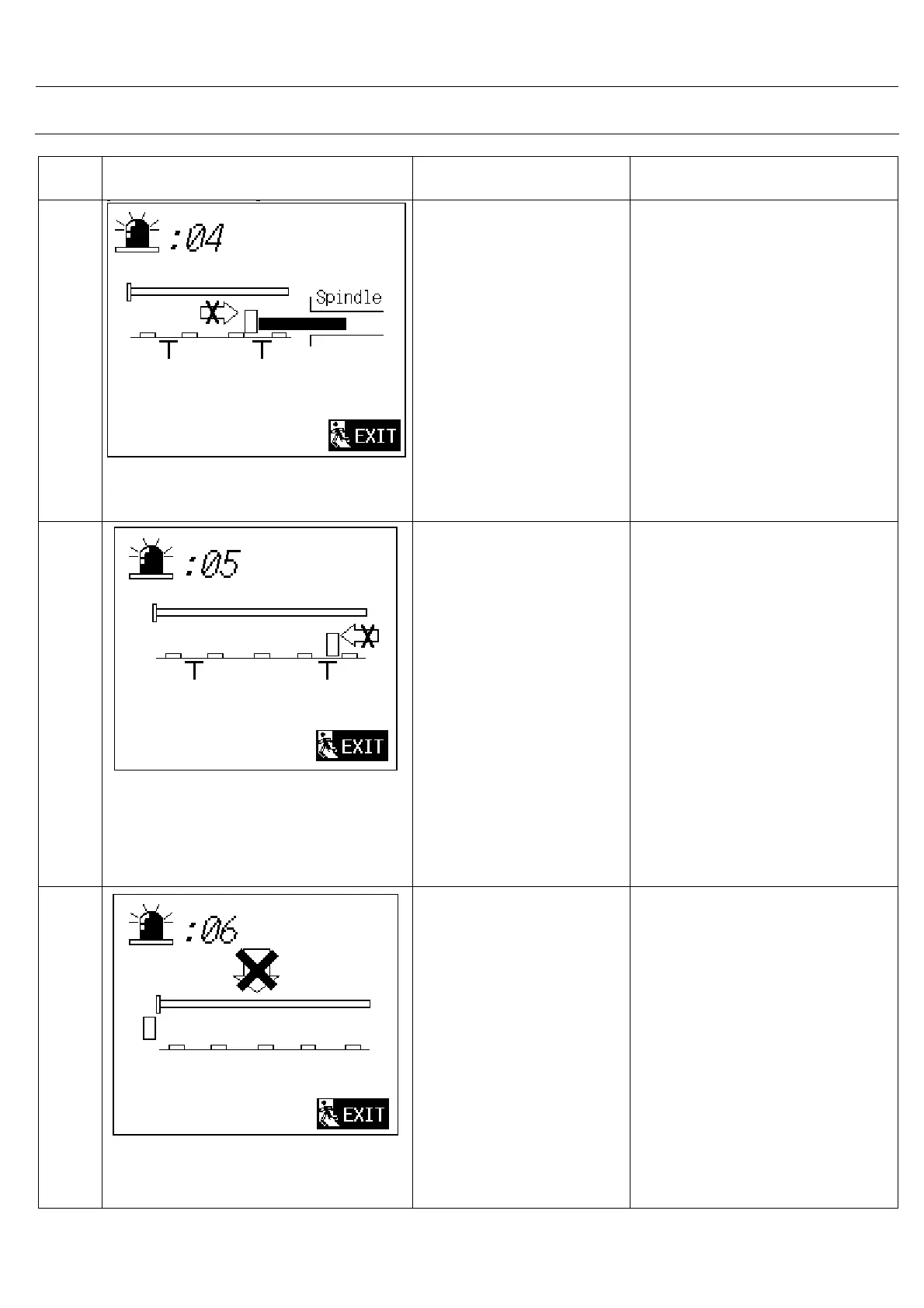

7. Alarm List
Alarm
No.
Alarm Picture Cause Action
4
You can’t move the flag forward.
(1) Bar Ø setting
difference
with actual bar Ø.
(2) Bar can not push into
the spindle.
(1) Check bar Ø setting
(on 3-2-2)
(1) Check the bar.
(2) Check the spindle liner.
5
You can’t move the flag backward.
Pushing mechanism has
a problem.
Check gears and belt.
Because there is an overload.
See 11-1 Mechanism Drawing
: :
(1) Item2 : Servo motor
driving gear
(2) Item3 : Servo motor driven
gear
(Drawing NO : T04201-000X)
(3) Item12 : Belt T5 20mm
Drawing NO :
1.5M :T24203-001X
1.2M :T24203-002X
6
You can’t move the loading
mechanism down.
Loading mechanism has
a problem.
Check gears and belt.
Because there is an overload.
See 11-1 Mechanism Drawing
:
(1) Item 5 :Gear box and
Loading motor
(2) Item 2 ,3 : Ballscrew
(Drawing NO : T24403-000X)
To Next Page
